BLDC Motor · 5/12/24/48V · IP68 Option

DC Fan

Precision BLDC axial fans from 15 mm micro to 172 mm heavy-duty — trusted by server, automotive, medical, and telecom OEMs worldwide for intelligent thermal management with sub-1°C temperature control.

15–172mmSize Range

4Voltages

PWMSpeed Control

4Signals (FG/RD/LD)

DC Fan

Our DC fan platform integrates brushless motor technology with up to 4 intelligent control signals — PWM duty input, FG tachometer feedback, RD reverse-rotation protection, and LD locked-rotor detection — giving firmware engineers everything needed for closed-loop thermal control. Available in 5V, 12V, 24V, and 48V rails with IP55 / IP68 waterproof variants for outdoor telecom, EV charging, and industrial IoT deployments.

4 Voltage Rails (5/12/24/48V)

4-Signal Smart Control (PWM/FG/RD/LD)

IP55 / IP68 Waterproof Option

Custom OEM (Voltage/Speed/Wiring)

Download PDF Catalog

Sizes

Micro (15-25mm) 30mm 35mm 36-38mm Special 40mm 45mm 50mm 60mm 70mm 80mm 92mm 120mm 140mm 150mm 172mm 180mm 200mm 220mm+

Micro (15-25mm)

MFD1504

MFD1504

15x15x4mm

Airflow 0.4 CFM

Noise 35 dB(A)

Speed 16000 RPM

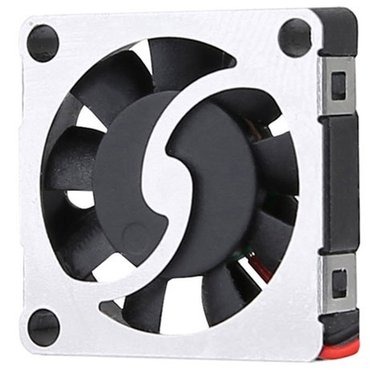

MFD1804

MFD1804

18x18x4mm

Airflow 0.9 CFM

Noise 35 dB(A)

Speed 13000 RPM

MFD2006

MFD2006

20x20x6mm

Airflow 0.79~1.12 CFM

Noise 21.5~31.2 dB(A)

Speed 8000~12000 RPM

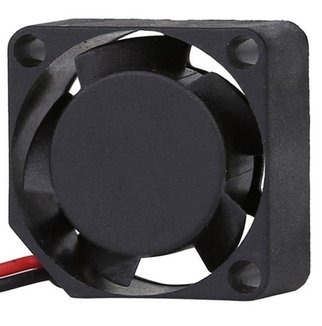

MFD2010

MFD2010

20x20x10mm

Airflow 1.05~1.35 CFM

Noise 18.8~24.2 dB(A)

Speed 10000~14000 RPM

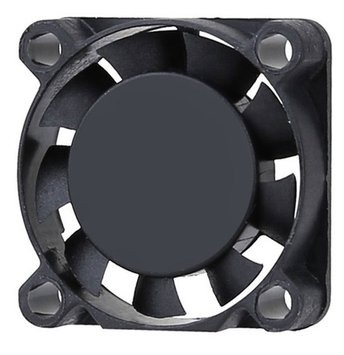

MFD2507

MFD2507

25x25x7mm

Airflow 1.22~2.81 CFM

Noise 19.6~31.2 dB(A)

Speed 7000~17000 RPM

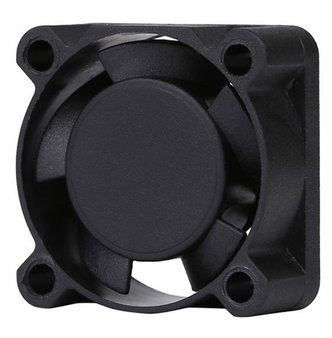

MFD2510

MFD2510

25x25x10mm

Airflow 1.01~2.63 CFM

Noise 17.8~37.6 dB(A)

Speed 8500~16000 RPM

30mm

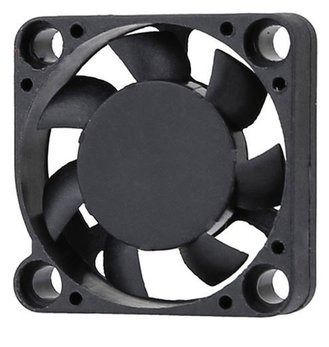

MFD3007

MFD3007

30x30x7mm

Airflow 1.99~4.25 CFM

Noise 25.5~34.9 dB(A)

Speed 6000~13000 RPM

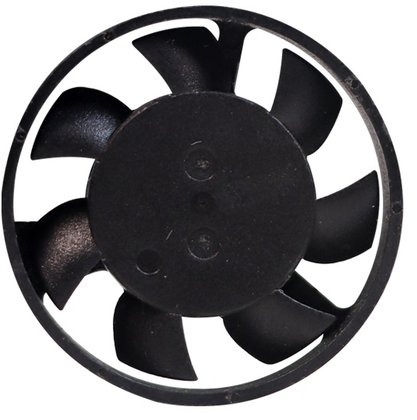

MFD3007R

MFD3007R

Ø30x10mm

Airflow 1.99~4.25 CFM

Noise 25.5~34.9 dB(A)

Speed 6000~13000 RPM

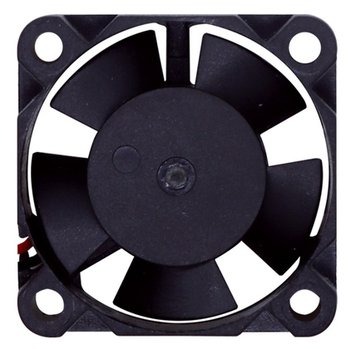

MFD3010

MFD3010

30x30x10mm

Airflow 0.98~4.25 CFM

Noise 25.5~34.9 dB(A)

Speed 5000~13000 RPM

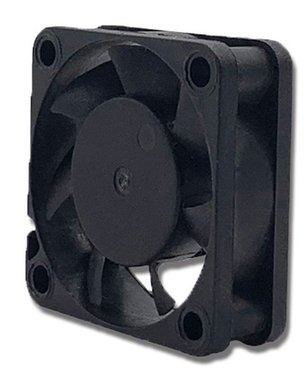

MFD3010D

MFD3010D

30x30x10mm

Airflow 2.21~4.49 CFM

Noise 20.8~34 dB(A)

Speed 5000~11000 RPM

MFD3010E

MFD3010E

Ø30x10mm

Airflow 2.21~4.49 CFM

Noise 20.8~34 dB(A)

Speed 5000~11000 RPM

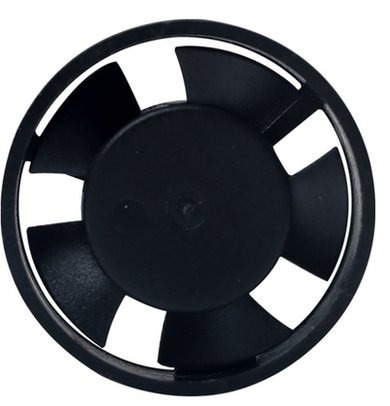

MFD3010R

MFD3010R

Ø30x10mm

Airflow 0.98~4.25 CFM

Noise 15.5~34.9 dB(A)

Speed 5000~13000 RPM

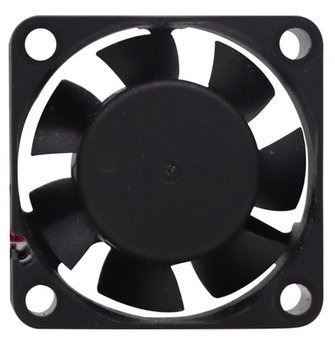

MFD3015

MFD3015

30x30x15mm

Airflow 2.3~4.48 CFM

Noise 20~35.2 dB(A)

Speed 6000~12000 RPM

35mm

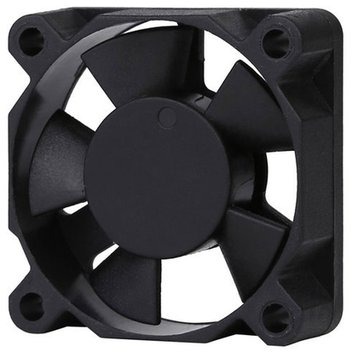

MFD3510

MFD3510

35x35x10mm

Airflow 2~5 CFM

Noise 25~35 dB(A)

Speed 5000~10000 RPM

36-38mm Special

MFD3628

MFD3628

36x36x28mm

Airflow 23.5 CFM

Noise 62.2 dB(A)

Speed 24000 RPM

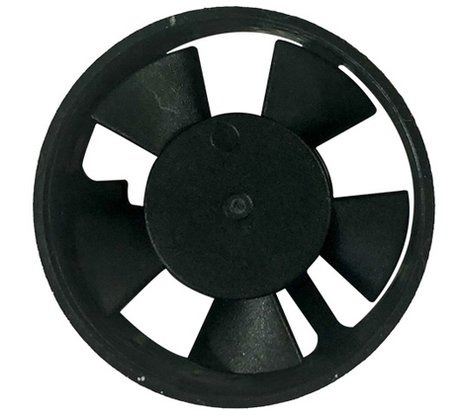

MFD3510R

MFD3510R

35x35x10mm

Airflow 2.8~8.7 CFM

Noise 28~44.7 dB(A)

Speed 7000~14000 RPM

MFD3828

MFD3828

38x38x28mm

Airflow 20.5 CFM

Noise 64 dB(A)

Speed 20000 RPM

40mm

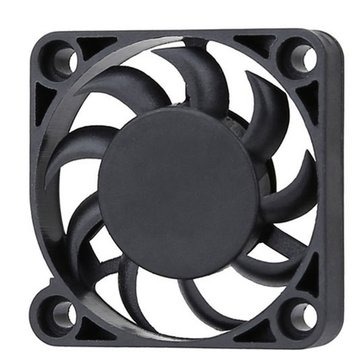

MFD4007

MFD4007

40x40x7mm

Airflow 3.14~5.37 CFM

Noise 23.5~31.5 dB(A)

Speed 4500~7500 RPM

MFD4010

MFD4010

40x40x10mm

Airflow 4.06~6.68 CFM

Noise 25.1~33.7 dB(A)

Speed 4500~7000 RPM

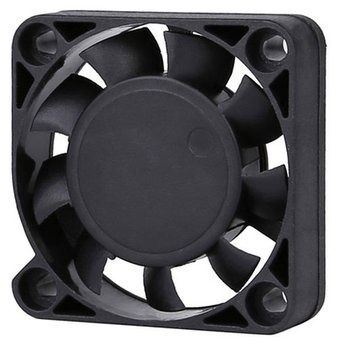

MFD4010B

MFD4010B

40x40x10mm

Airflow 4.3~8.0 CFM

Noise 24.2~40.2 dB(A)

Speed 4500~8500 RPM

MFD4010C

MFD4010C

40x40x10mm

Airflow 4.06~6.68 CFM

Noise 25.1~33.7 dB(A)

Speed 4500~7000 RPM

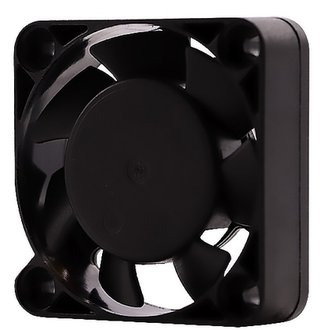

MFD4012

MFD4012

40x40x12mm

Airflow 3.9~7.0 CFM

Noise 24.6~39.5 dB(A)

Speed 4500~8500 RPM

MFD4015

MFD4015

40x40x15mm

Airflow 6.5~14.8 CFM

Noise 18.5~41.5 dB(A)

Speed 5000~11000 RPM

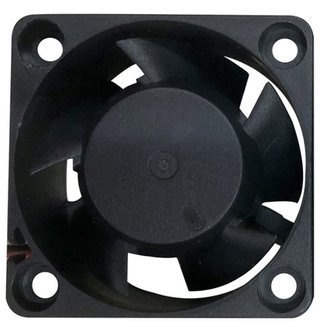

MFD4020

MFD4020

40x40x20mm

Airflow 5.19~8.77 CFM

Noise 26.2~35 dB(A)

Speed 5000~8500 RPM

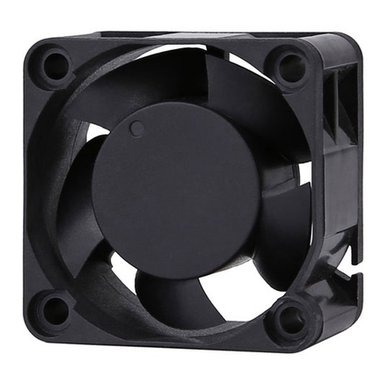

MFD4020B

MFD4020B

40x40x20mm

Airflow 5.34~8.94 CFM

Noise 2.65~6.76 dB(A)

Speed 5000~8500 RPM

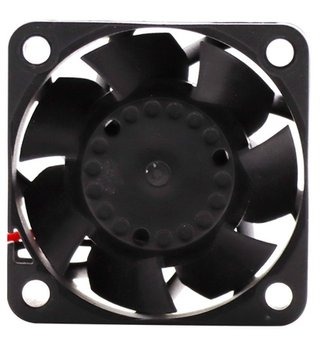

MFD4020C

MFD4020C

40x40x20mm

Airflow 16.6~29.5 CFM

Noise 53.2~58.1 dB(A)

Speed 12000~20000 RPM

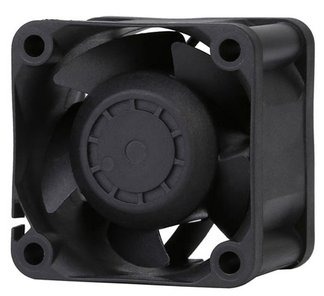

MFD4028

MFD4028

40x40x28mm

Airflow 8.73~20.4 CFM

Noise 36.6~52.6 dB(A)

Speed 7000~16000 RPM

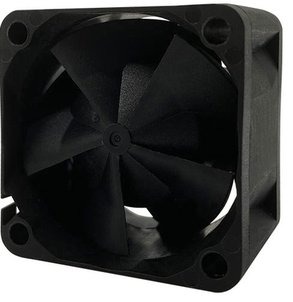

MFD4028B

MFD4028B

40x40x28mm

Airflow 10.26~22.1 CFM

Noise 32.2~61 dB(A)

Speed 10000~22000 RPM

45mm

MFD4510

MFD4510

45x45x10mm

Airflow 5.19~8.85 CFM

Noise 24.3~39.3 dB(A)

Speed 4000~7000 RPM

50mm

MFD5010

MFD5010

50x50x10mm

Airflow 6.34~10.9 CFM

Noise 22.1~40 dB(A)

Speed 4000~6500 RPM

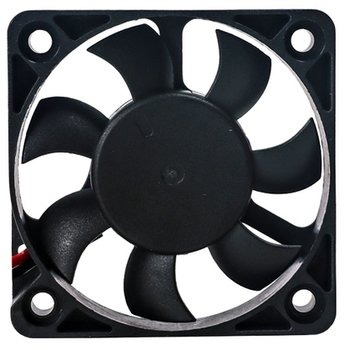

MFD5010B

MFD5010B

50x50x10mm

Airflow 6.34~10.9 CFM

Noise 22.1~40 dB(A)

Speed 4000~6500 RPM

MFD5010C

MFD5010C

50x50x10mm

Airflow 8.14~13.4 CFM

Noise 26.8~36.8 dB(A)

Speed 4000~6500 RPM

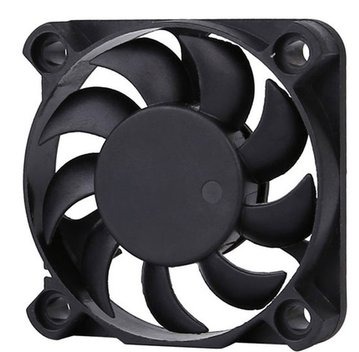

MFD5010D

MFD5010D

50x50x10mm

Airflow 7.3~10.43 CFM

Noise 20.8~28.5 dB(A)

Speed 3500~5000 RPM

MFD5015

MFD5015

50x50x15mm

Airflow 8.5~18.3 CFM

Noise 24.1~46.1 dB(A)

Speed 3500~7500 RPM

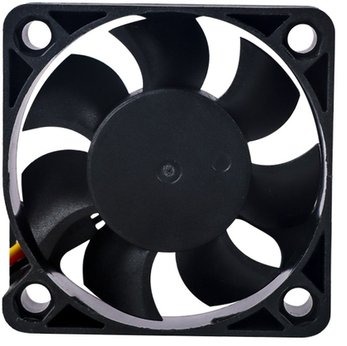

MFD5015B

MFD5015B

50x50x15mm

Airflow 6.34~10.9 CFM

Noise 22.1~40 dB(A)

Speed 4000~6500 RPM

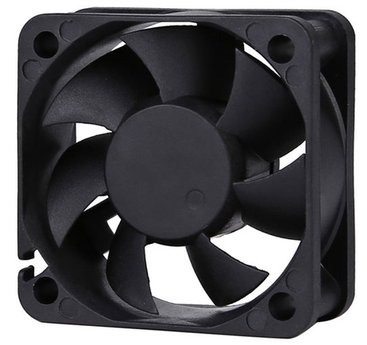

MFD5020

MFD5020

50x50x20mm

Airflow 8.8~20.1 CFM

Noise 22.3~41.4 dB(A)

Speed 3000~6500 RPM

60mm

MFD6010

MFD6010

60x60x10mm

Airflow 11.4~19.4 CFM

Noise 25.3~39 dB(A)

Speed 3000~5000 RPM

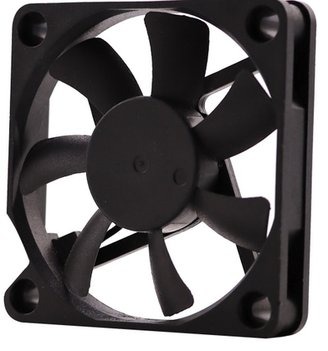

MFD6010B

MFD6010B

60x60x10mm

Airflow 11.6~19.3 CFM

Noise 21~34.4 dB(A)

Speed 3000~5000 RPM

MFD6010C

MFD6010C

60x60x15mm

Airflow 10.6~21.3 CFM

Noise 17.1~34.5 dB(A)

Speed 2300~4500 RPM

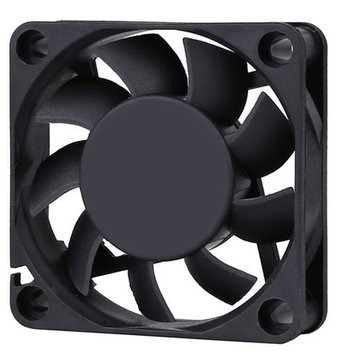

MFD6015

MFD6015

60x60x15mm

Airflow 9.4~24.0 CFM

Noise 21.1~41.0 dB(A)

Speed 2000~6000 RPM

MFD6015B

MFD6015B

60x60x15mm

Airflow 9.4~24 CFM

Noise 21.1~41 dB(A)

Speed 2000~6000 RPM

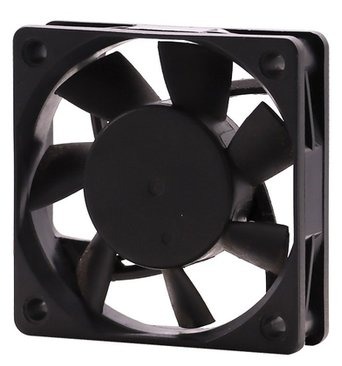

MFD6015C

MFD6015C

60x60x15mm

Airflow 10.6~24.5 CFM

Noise 17.1~34.5 dB(A)

Speed 2300~4500 RPM

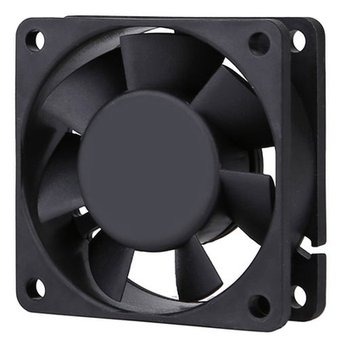

MFD6020

MFD6020

60x60x20mm

Airflow 13.8~19.6 CFM

Noise 27.2~36.5 dB(A)

Speed 3500~5000 RPM

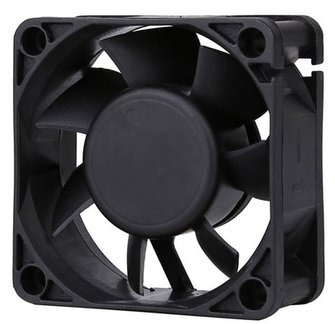

MFD6025

MFD6025

60x60x25mm

Airflow 15.7~26.9 CFM

Noise 27.2~40.2 dB(A)

Speed 3000~5000 RPM

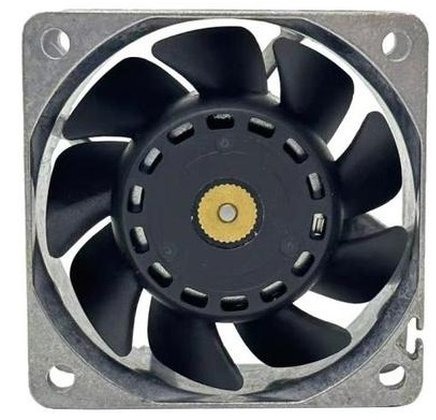

MFD6025D

MFD6025D

60x60x25mm

Airflow 15.7~67.7 CFM

Noise 27.2~61.5 dB(A)

Speed 3000~14500 RPM

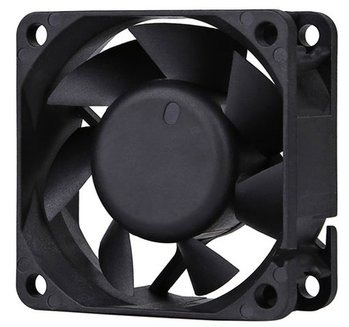

MFD6025B

MFD6025B

60x60x25mm

Airflow 29.2~39.5 CFM

Noise 39.9~49.5 dB(A)

Speed 5500~7500 RPM

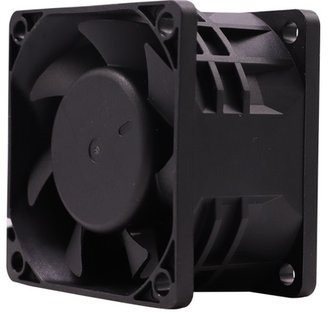

MFD6038

MFD6038

60x60x38mm

Airflow 29.7~51.6 CFM

Noise 48.9~62.2 dB(A)

Speed 6000~10000 RPM

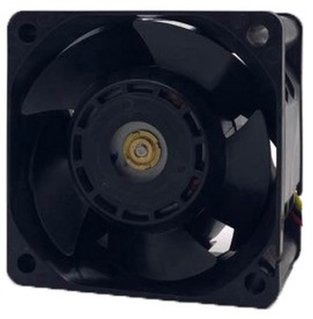

MFD6038B

MFD6038B

60x60x38mm

Airflow 66.4 CFM

Noise 68 dB(A)

Speed 21700 RPM

MFD6038C

MFD6038C

60x60x38mm

Airflow 52.04~65.34 CFM

Noise 61.8~70.8 dB(A)

Speed 12000~16000 RPM

70mm

MFD7010

MFD7010

70x70x10mm

Airflow 13.9~29.8 CFM

Noise 22.9~38.9 dB(A)

Speed 2000~4500 RPM

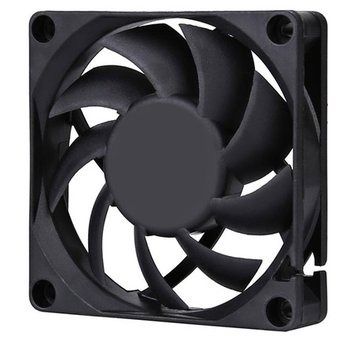

MFD7015

MFD7015

70x70x15mm

Airflow 13.9~29.8 CFM

Noise 22.9~38.9 dB(A)

Speed 2000~4500 RPM

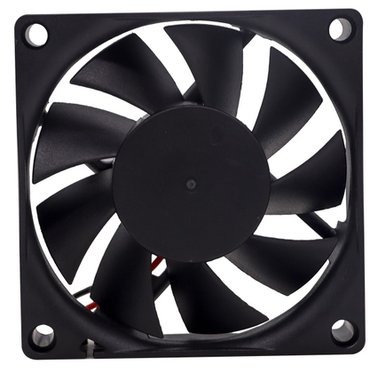

MFD7020

MFD7020

70x70x20mm

Airflow 16.6~40.4 CFM

Noise 24.2~42.2 dB(A)

Speed 2000~4500 RPM

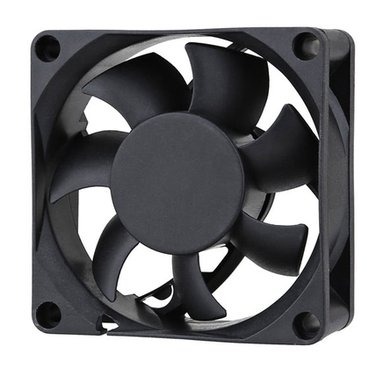

MFD7025

MFD7025

70x70x25mm

Airflow 26.8~44.9 CFM

Noise 32.5~47.3 dB(A)

Speed 3000~5000 RPM

80mm

MFD8010

MFD8010

80x80x10mm

Airflow 13.9~25.6 CFM

Noise 22.9~34.9 dB(A)

Speed 2000~3500 RPM

MFD8015

MFD8015

80x80x15mm

Airflow 22.8~36.6 CFM

Noise 30.4~40.3 dB(A)

Speed 2000~3500 RPM

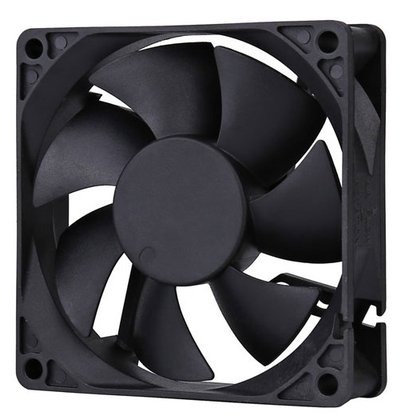

MFD8020

MFD8020

80x80x20mm

Airflow 30.9~45.1 CFM

Noise 35.7~45.3 dB(A)

Speed 3000~4500 RPM

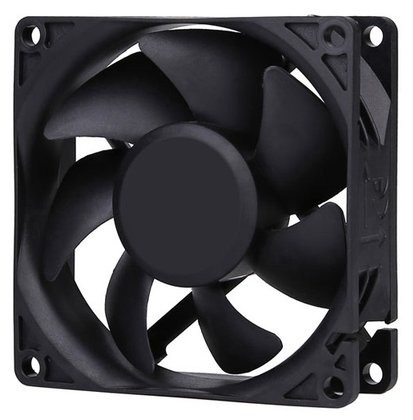

MFD8025

MFD8025

80x80x25mm

Airflow 24.4~60.5 CFM

Noise 25.8~46.3 dB(A)

Speed 2000~5000 RPM

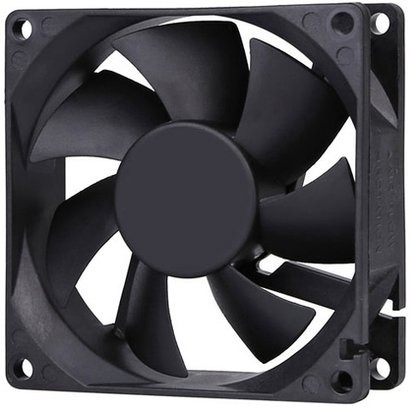

MFD8025B

MFD8025B

80x80x25mm

Airflow 23.1~50.2 CFM

Noise 24.9~45.4 dB(A)

Speed 2000~4500 RPM

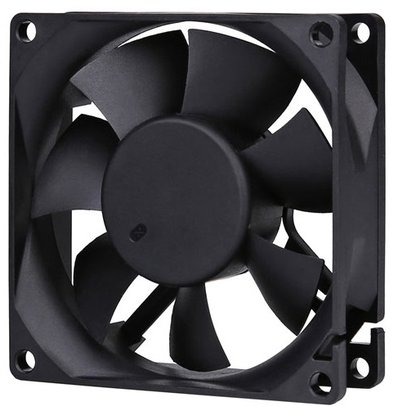

MFD8025C

MFD8025C

80x80x25mm

Airflow 27.3~44.4 CFM

Noise 24.9~45.4 dB(A)

Speed 2400~4000 RPM

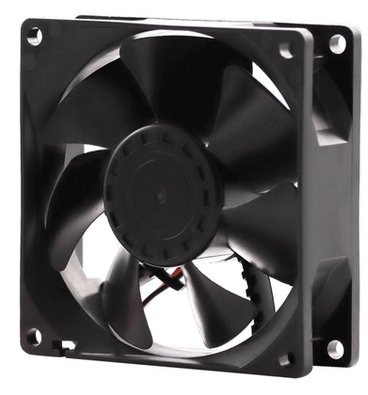

MFD8025D

MFD8025D

80x80x25mm

Airflow 24.7~40.2 CFM

Noise 22~35 dB(A)

Speed 2150~3400 RPM

MFD8032

MFD8032

80x80x32mm

Airflow 49.9~107.1 CFM

Noise 46.8~63.5 dB(A)

Speed 4000~8500 RPM

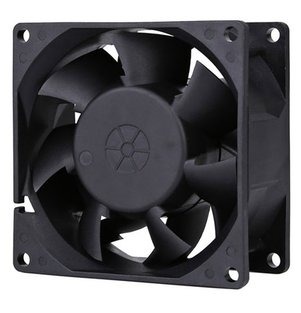

MFD8038

MFD8038

80x80x38mm

Airflow 49.9~109.1 CFM

Noise 46.8~66.6 dB(A)

Speed 4000~8500 RPM

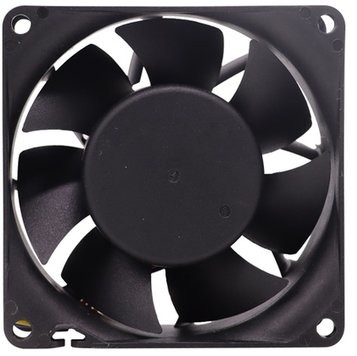

MFD8038B

MFD8038B

80x80x38mm

Airflow 113.31~133.95 CFM

Noise 61.9~66.6 dB(A)

Speed 8500~10000 RPM

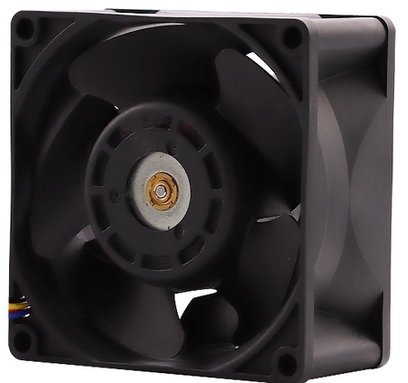

MFD8038C

MFD8038C

80x80x38mm

Airflow 132 CFM

Noise 73 dB(A)

Speed 16100 RPM

92mm

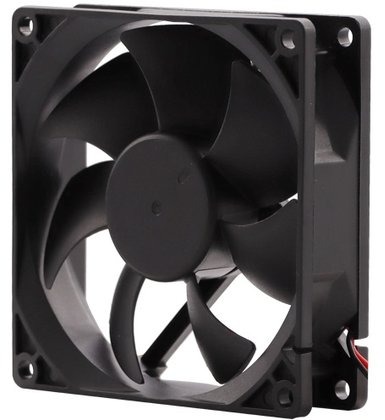

MFD9225

MFD9225

92x92x25mm

Airflow 31.9~73.9 CFM

Noise 27.5~50.1 dB(A)

Speed 2000~5000 RPM

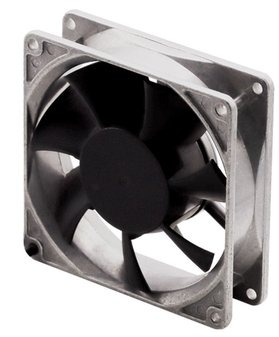

MFD9225B

MFD9225B

92x92x25mm

Airflow 46.8~96.9 CFM

Noise 35.5~55 dB(A)

Speed 2000~4500 RPM

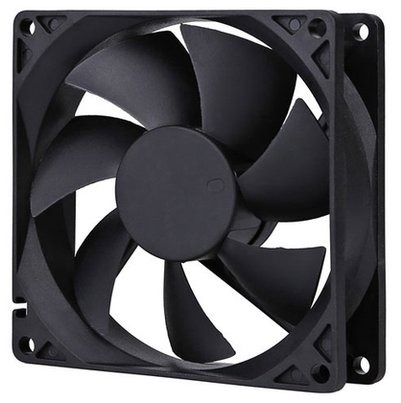

MFD9225C

MFD9225C

92x92x25mm

Airflow 31.9~73.9 CFM

Noise 27.5~50.1 dB(A)

Speed 2000~5000 RPM

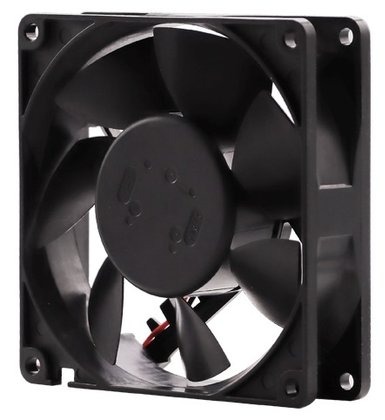

MFD9225E

MFD9225E

92x92x25mm

Airflow 45.7~89.1 CFM

Noise 29.7~48 dB(A)

Speed 2500~5000 RPM

MFD9225F

MFD9225F

92x92x25mm

Airflow 46.8~96.9 CFM

Noise 35.5~55 dB(A)

Speed 2000~4500 RPM

MFD9232

MFD9232

92x92x32mm

Airflow 35~80 CFM

Noise 30~52 dB(A)

Speed 2000~5000 RPM

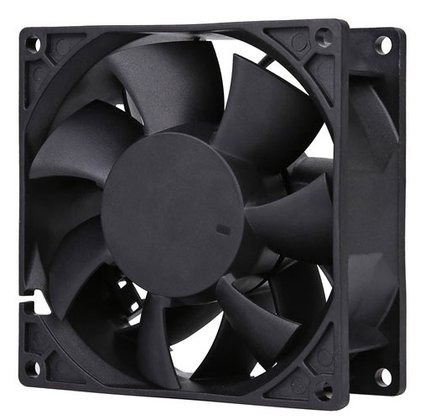

MFD9238

MFD9238

92x92x38mm

Airflow 70.86~144.26 CFM

Noise 48~66.2 dB(A)

Speed 3500~7500 RPM

120mm

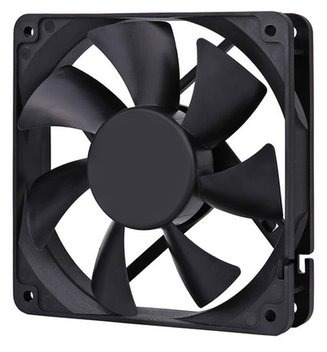

MFD12025

MFD12025

120x120x25mm

Airflow 64.2~107 CFM

Noise 30.5~47.4 dB(A)

Speed 1500~3000 RPM

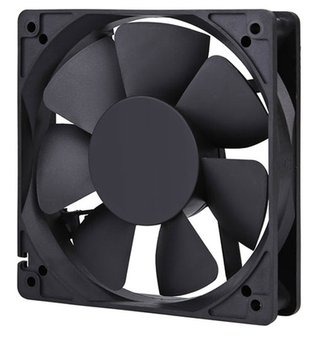

MFD12025B

MFD12025B

120x120x25mm

Airflow 54.2~121.1 CFM

Noise 33.3~57.1 dB(A)

Speed 2000~4500 RPM

IP68

MFD9238B

MFD9238B

92x92x38mm

Airflow 146.6~189 CFM

Noise 59~68 dB(A)

Speed 7000~9000 RPM

MFD9238D

MFD9238D

92x92x38mm

Airflow 70.9~144.3 CFM

Noise 48~66.2 dB(A)

Speed 3500~7500 RPM

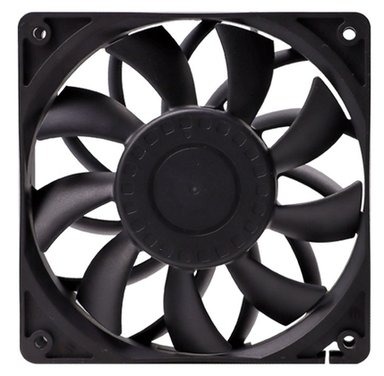

MFD12025C

MFD12025C

120x120x25mm

Airflow 103.12~155.73 CFM

Noise 46.6~57.2 dB(A)

Speed 3100~4500 RPM

MFD12025E

MFD12025E

120x120x25mm

Airflow 67.1~91.1 CFM

Noise 30~37 dB(A)

Speed 1900~3700 RPM

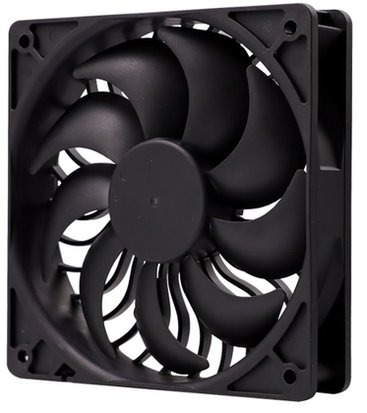

MFD12025F

MFD12025F

120x120x25mm

Airflow 64.2~107 CFM

Noise 30.5~47.4 dB(A)

Speed 1500~3000 RPM

MFD12025G

MFD12025G

120x120x25mm

Airflow 174.53 CFM

Noise 65.5 dB(A)

Speed 8300 RPM

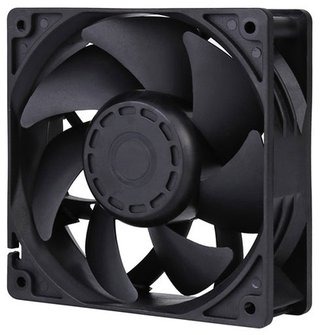

MFD12038

MFD12038

120x120x38mm

Airflow 141.2~243.6 CFM

Noise 53~66 dB(A)

Speed 3800~6400 RPM

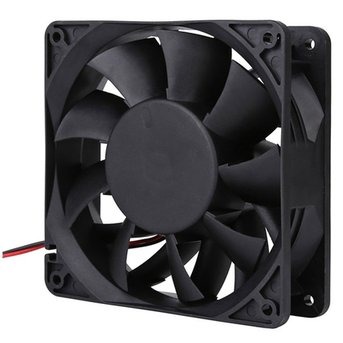

MFD12038B

MFD12038B

120x120x38mm

Airflow 108.3~248.5 CFM

Noise 52.4~71.9 dB(A)

Speed 2500~5500 RPM

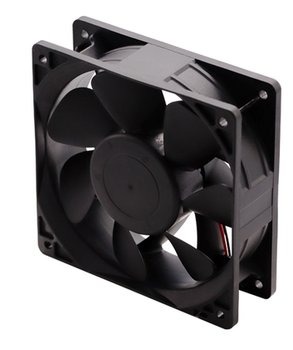

MFD12038Q

MFD12038Q

120x120x38mm

Airflow 111.0~217.6 CFM

Noise 45.7~63.5 dB(A)

Speed 3000~6000 RPM

MFD12038D

MFD12038D

120x120x38mm

Airflow 141.2~243.6 CFM

Noise 53~66 dB(A)

Speed 3800~6400 RPM

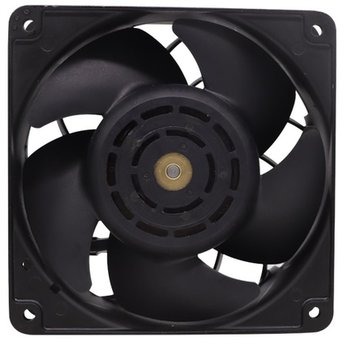

MFD12038E

MFD12038E

120x120x38mm

Airflow 311.68 CFM

Noise 70.8 dB(A)

Speed 11000 RPM

MFD12038F

MFD12038F

120x120x38mm

Airflow 236.48 CFM

Noise 77.3 dB(A)

Speed 7500 RPM

MFD12038H

MFD12038H

120x120x38mm

Airflow 190.48~240.96 CFM

Noise 55.5~62 dB(A)

Speed 4100~5200 RPM

MFD12537

MFD12537

120x120x37mm

Airflow 64~140 CFM

Noise 35~55 dB(A)

Speed 1500~3500 RPM

140mm

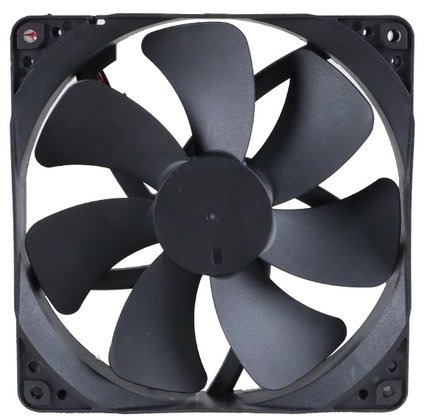

MFD14025

MFD14025

140x140x25mm

Airflow 62.07~133.43 CFM

Noise 28~47.1 dB(A)

Speed 1500~2900 RPM

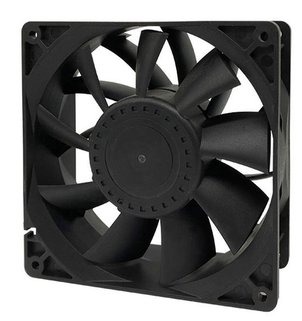

MFD14038

MFD14038

140x140x38mm

Airflow 133.3~307.2 CFM

Noise 43.8~68.0 dB(A)

Speed 1800~4000 RPM

MFD14038B

MFD14038B

140x140x38mm

Airflow 167.7~254.89 CFM

Noise 55.8~67.8 dB(A)

Speed 4500~6500 RPM

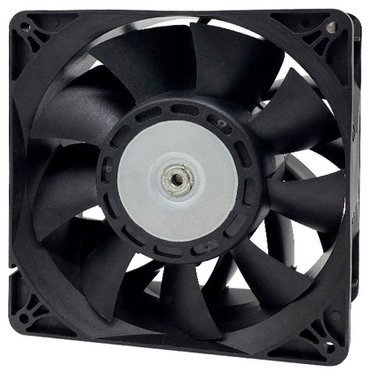

MFD14050

MFD14050

140x140x50mm

Airflow 229.46~360.8 CFM

Noise 59.4~68.1 dB(A)

Speed 2800~4300 RPM

150mm

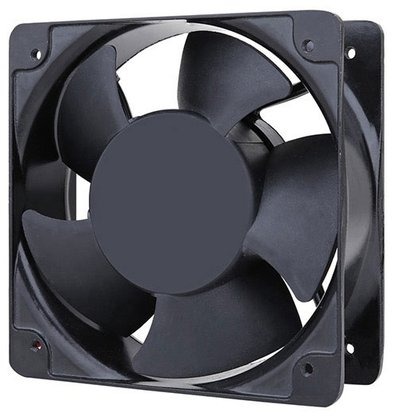

MFD15050

MFD15050

150x150x50mm

Airflow 172.2~361.7 CFM

Noise 56.1~71.4 dB(A)

Speed 2500~5000 RPM

172mm

MFD17225

MFD17225

172x150x25mm

Airflow 160.77~290.64 CFM

Noise 46~61.5 dB(A)

Speed 2400~4000 RPM

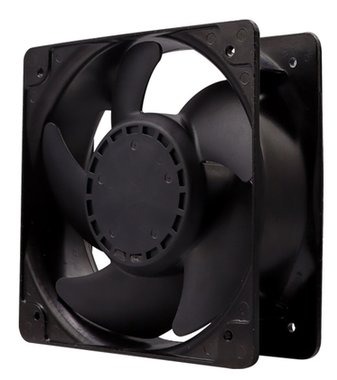

MFD15050C

MFD15050C

150x150x50mm

Airflow 477.4 CFM

Noise 94.2 dB(A)

Speed 6600 RPM

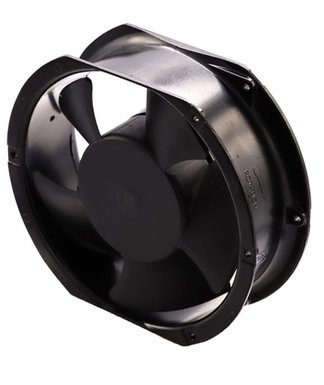

MFD17251

MFD17251

172x150x51mm

Airflow 172.2~361.7 CFM

Noise 56.1~71.4 dB(A)

Speed 2500~5000 RPM

MFD17251R

MFD17251R

172x150x51mm

Airflow 172.2~532.1 CFM

Noise 56.1~90 dB(A)

Speed 2500~9200 RPM

MFD17251E

MFD17251E

172x150x51mm

Airflow 532.07 CFM

Noise 90 dB(A)

Speed 9200 RPM

180mm

MFD18025

MFD18025

180x180x25mm

Airflow 89~123.8 CFM

Noise 24.5~30 dB(A)

Speed 1000~1800 RPM

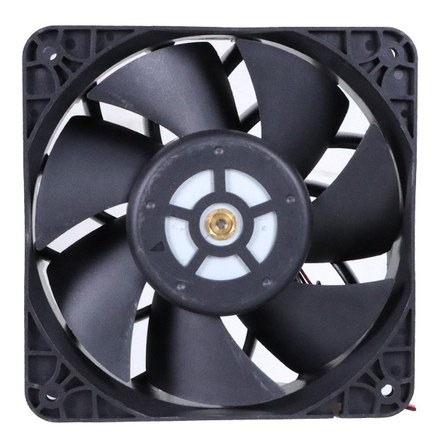

MFD18060

MFD18060

180x180x60mm

Airflow 183.1 CFM

Noise 52.7 dB(A)

Speed 2600 RPM

200mm

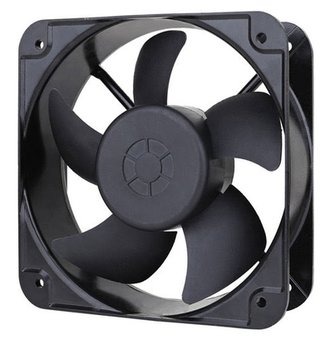

MFD20060

MFD20060

200x200x60mm

Airflow 410.93~719.14 CFM

Noise 56.3~70.5 dB(A)

Speed 2000~3500 RPM

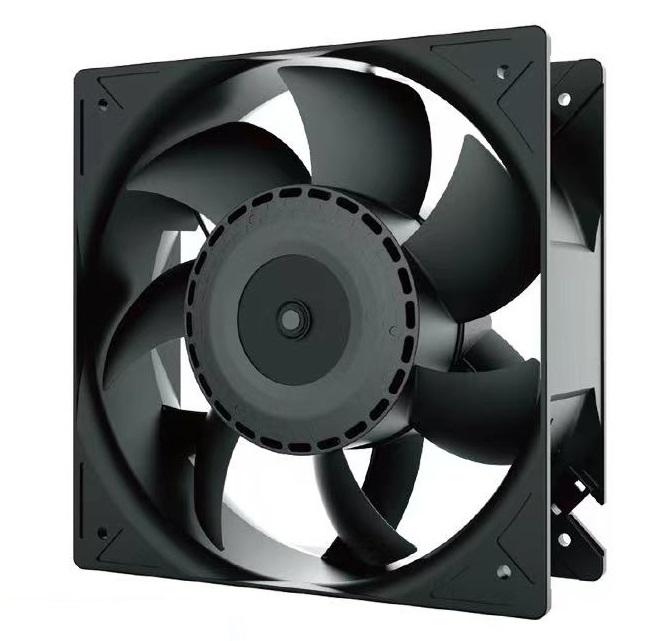

MFD20572

MFD20572

200x200x72mm

Airflow 531.3~798.3 CFM

Noise 51~62 dB(A)

Speed 2200~3300 RPM

220mm+

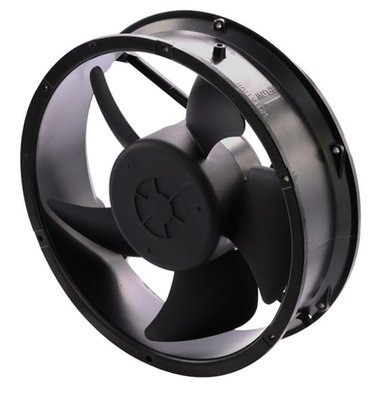

MFD22060

MFD22060

220x220x60mm

Airflow 400.58~645.61 CFM

Noise 54.6~68.5 dB(A)

Speed 2000~3500 RPM

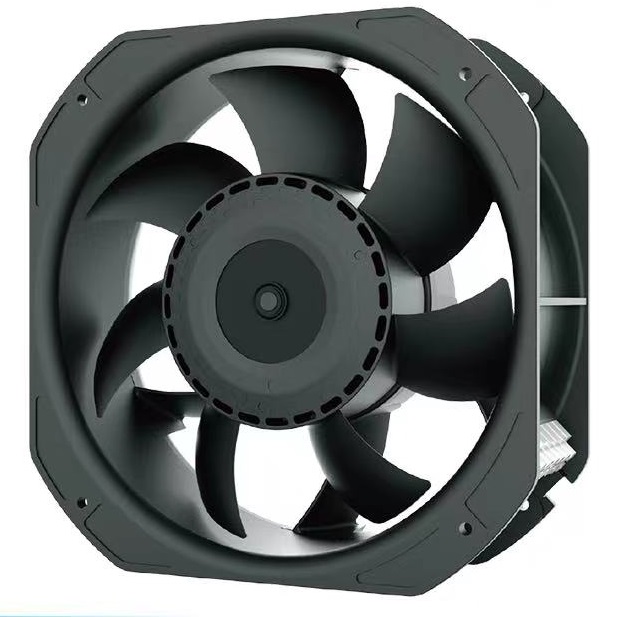

MFD22580

MFD22580

225x225x80mm

Airflow 533.5~806 CFM

Noise 50~61 dB(A)

Speed 2200~3300 RPM

MFD25489

MFD25489

254x254x89mm

Airflow 305.3~1296.4 CFM

Noise 53.4~89.6 dB(A)

Speed 1000~4000 RPM

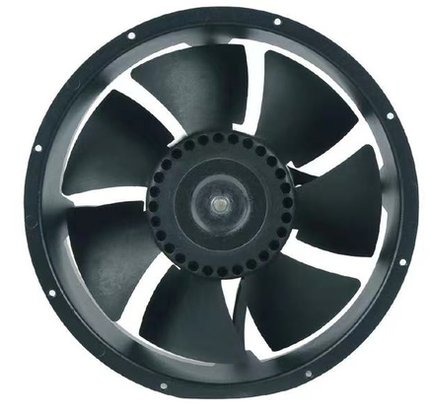

MFD25489B

MFD25489B

254x89mm

Airflow 628.3~970.1 CFM

Noise 48~59 dB(A)

Speed 2000~3000 RPM

MFD28080

MFD28080

280x280x80mm

Airflow 400~1000 CFM

Noise 60~85 dB(A)

Speed 1000~2800 RPM

Can't find what you need?

Use our advanced Product Finder to search by specifications.

Open Product Finder

Need a custom solution?
