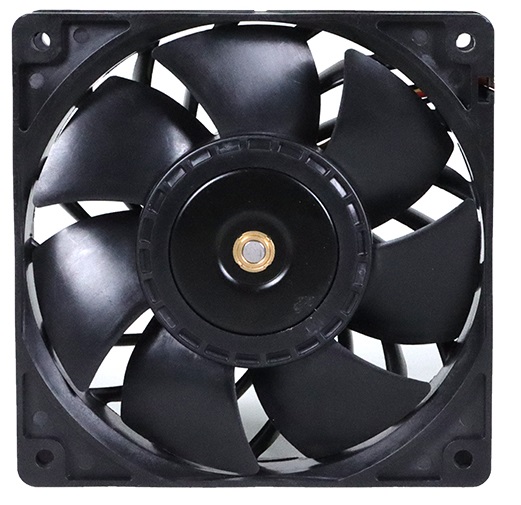

DC Fan
MFD12025G
: 120 x 120 x 25mm
Airflow
174.5 CFM
Speed
8300 RPM
Noise
65.5 dB(A)
Product Specifications
| Size | : 120 x 120 x 25mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025GD1-VH | 12 | 7~13.5 | 2.0 | 24 | 8300 | 174.53 | 54.33 | 65.5 |
| MFD12025GD2-VH | 24 | 18 ~ 26.5 | 1.0 | 24 | 8300 | 174.53 | 54.33 | 65.5 |
| MFD12025GD4-VH | 48 | 36 ~ 54 | 0.5 | 24 | 8300 | 174.53 | 54.33 | 65.5 |
Dimension Drawing

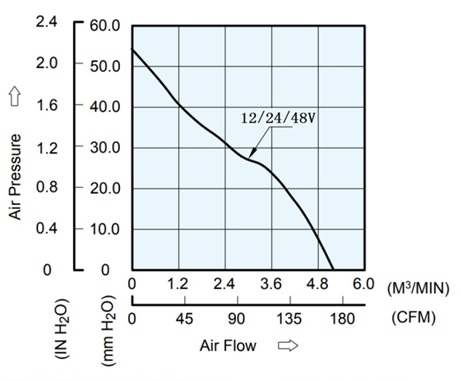

P&Q Curve
