Frameless DC Fans

Ø46 – Ø168.5 mm · 5V / 12V / 24V / 48V DC · Ball & Sleeve bearing · FG / PWM / RD / LD

Frameless DC fans remove the conventional square housing, so the impeller and hub mount directly into your chassis. That saves depth and weight and frees airflow area — ideal for slim enclosures, power supplies, LED lighting, chargers and appliance modules where a framed fan will not fit.

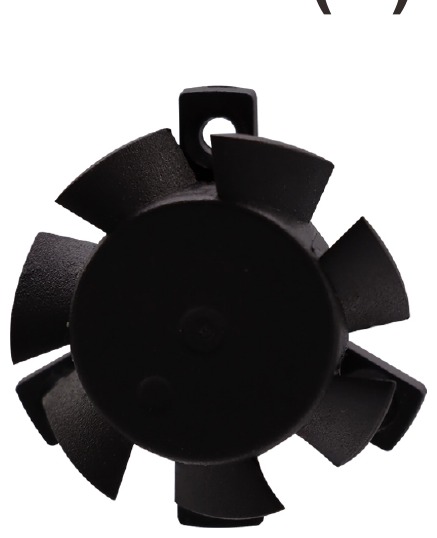

MFD3010Y

MFD3010Y

28 x 28 x 10 mm
2.21~4.49 CFM5000~11000 RPM20.8~34 dB(A)
View Datasheet

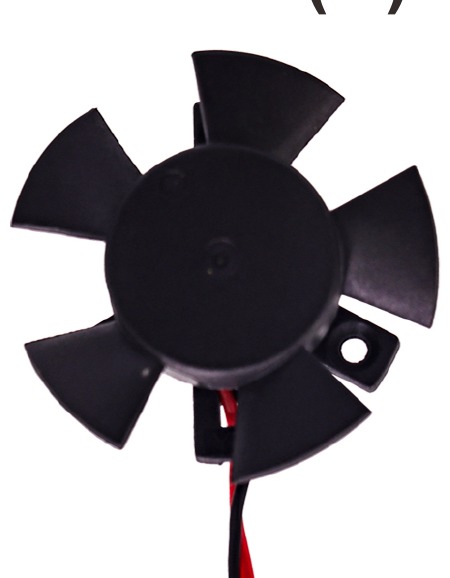

MFD3510Y

MFD3510Y

32 x 32 x 12.2 mm
3.91~7.41 CFM7000~14000 RPM28~44.7 dB(A)
View Datasheet
MFD4010Y

MFD4010Y

37.5 x 37.5 x 10.5 mm
3.93~7.02 CFM4500~8500 RPM24.6~39.5 dB(A)
View Datasheet
MFD5010Y

MFD5010Y

Ø46 x 10.5 mm
6.34~10.9 CFM4000~6500 RPM22.1~40 dB(A)
View Datasheet

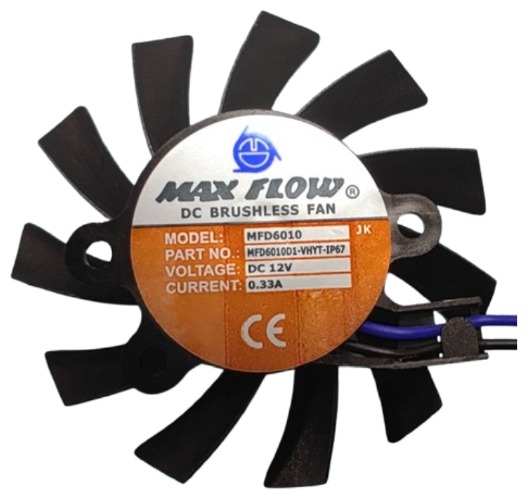

MFD6010Y

MFD6010Y

Ø55 x 10.5 mm
11.4~19.4 CFM3000~5000 RPM25.3~39 dB(A)
View Datasheet

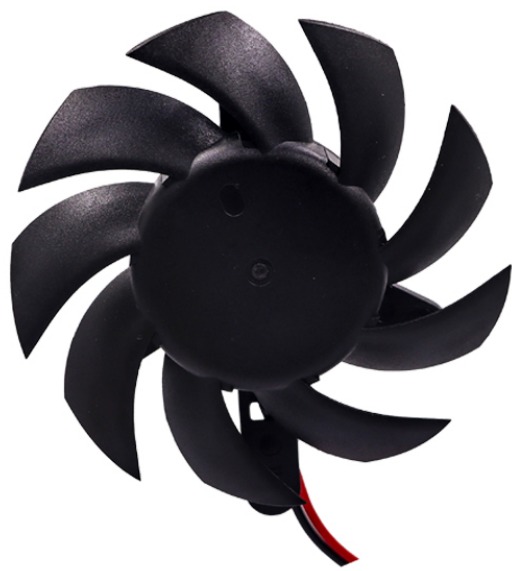

MFD7015Y

MFD7015Y

Ø64 x 15.5 mm
13.9~29.8 CFM2000~4500 RPM22.9~38.9 dB(A)
View Datasheet

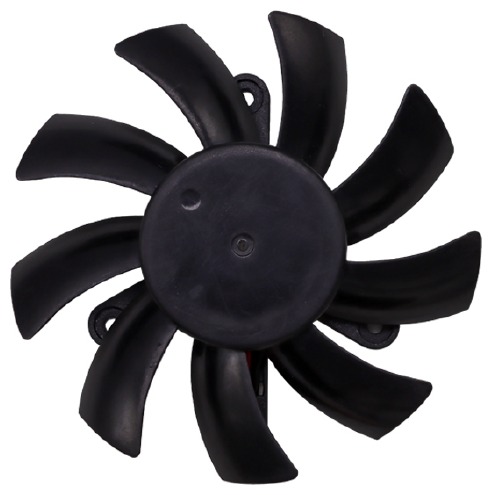

MFD8015Y

MFD8015Y

Ø75 x 15.5 mm
22.8~36.6 CFM2000~3500 RPM30.4~40.3 dB(A)
View Datasheet

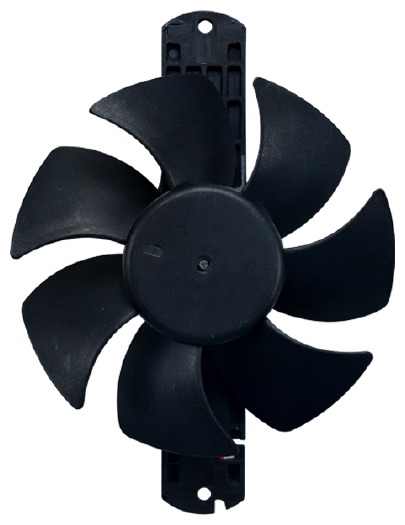

MFD9225L

MFD9225L

112 x 85.5 x 24.5 mm
31.9~66.2 CFM2500~4500 RPM27.5~46.4 dB(A)
View Datasheet
MFD12025Y

MFD12025Y

145.7 x 108 x 24.5 mm
64.2~107 CFM1500~3000 RPM30.5~47.4 dB(A)
View Datasheet
MFD12038Y

MFD12038Y

159.6 x 111 x 38 mm
96.55~209.92 CFM2500~5500 RPM43.4~65.2 dB(A)
View Datasheet

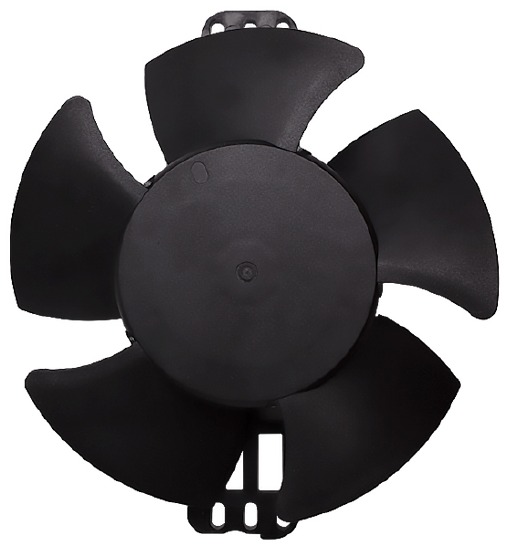

MFD15050Y

MFD15050Y

159 x 142 x 41 mm
172.21~361.69 CFM2500~5000 RPM56.1~71.4 dB(A)
View Datasheet

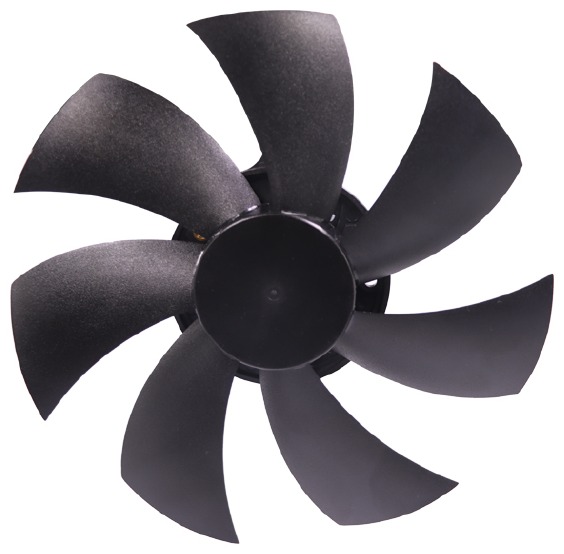

MFD18025Y

MFD18025Y

Ø168.5 x 23 mm
89~123.8 CFM1000~1800 RPM24.5~30 dB(A)
View Datasheet
