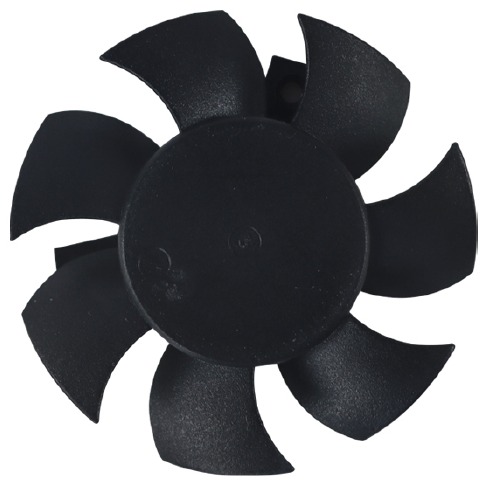

Frameless DC Fan
MFD5010Y
Ø46 x 10.5 mm
Airflow
6.34~10.9 CFM
Speed
4000~6500 RPM
Noise
22.1~40 dB(A)
Product Specifications
| Size | Ø46 x 10.5 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 20,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD5010YD05-LB | 5 | 1.8 ~ 6 | 0.072 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5010YD05-LS | 5 | 1.8 ~ 6 | 0.072 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5010YD05-LMB | 5 | 1.8 ~ 6 | 0.096 | 0.48 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5010YD05-LMS | 5 | 1.8 ~ 6 | 0.096 | 0.48 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5010YD05-MB | 5 | 1.8 ~ 6 | 0.12 | 0.6 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5010YD05-MS | 5 | 1.8 ~ 6 | 0.12 | 0.6 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5010YD05-LHB | 5 | 1.8 ~ 6 | 0.144 | 0.72 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5010YD05-LHS | 5 | 1.8 ~ 6 | 0.144 | 0.72 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5010YD05-HB | 5 | 1.8 ~ 6 | 0.168 | 0.84 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5010YD05-HS | 5 | 1.8 ~ 6 | 0.168 | 0.84 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5010YD05-HHB | 5 | 1.8 ~ 6 | 0.19 | 0.96 | 6500 | 10.9 | 3.77 | 40 |
| MFD5010YD05-HHS | 5 | 1.8 ~ 6 | 0.19 | 0.96 | 6500 | 10.9 | 3.77 | 40 |
| MFD5010YD1-LB | 12 | 8.5 ~ 13.5 | 0.03 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5010YD1-LS | 12 | 8.5 ~ 13.5 | 0.03 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5010YD1-LMB | 12 | 8.5 ~ 13.5 | 0.04 | 0.48 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5010YD1-LMS | 12 | 8.5 ~ 13.5 | 0.04 | 0.48 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5010YD1-MB | 12 | 8.5 ~ 13.5 | 0.05 | 0.6 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5010YD1-MS | 12 | 8.5 ~ 13.5 | 0.05 | 0.6 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5010YD1-LHB | 12 | 8.5 ~ 13.5 | 0.06 | 0.72 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5010YD1-LHS | 12 | 8.5 ~ 13.5 | 0.06 | 0.72 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5010YD1-HB | 12 | 8.5 ~ 13.5 | 0.07 | 0.84 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5010YD1-HS | 12 | 8.5 ~ 13.5 | 0.07 | 0.84 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5010YD1-HHB | 12 | 8.5 ~ 13.5 | 0.08 | 0.96 | 6500 | 10.9 | 3.77 | 40 |
| MFD5010YD1-HHS | 12 | 8.5 ~ 13.5 | 0.08 | 0.96 | 6500 | 10.9 | 3.77 | 40 |

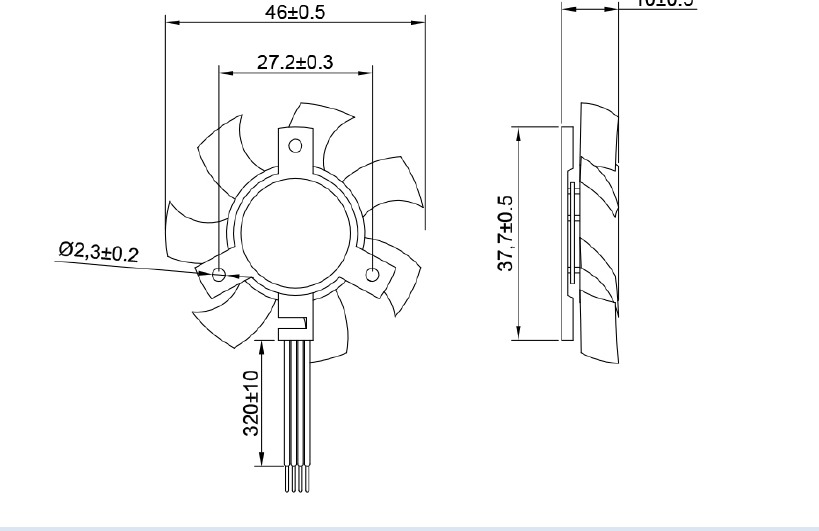

Dimension Drawing

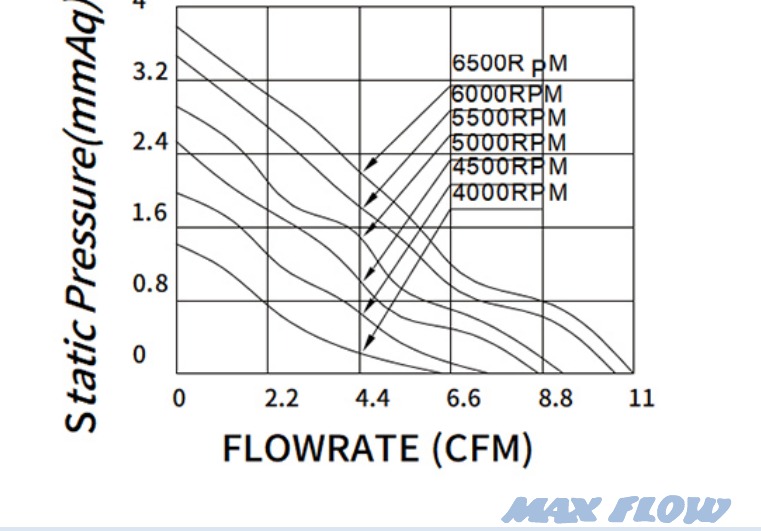

P&Q Curve
