Frameless DC Fan
MFD18025Y
Ø168.5 x 23 mm
Airflow
89~123.8 CFM
Speed
1000~1800 RPM
Noise
24.5~30 dB(A)
Product Specifications
| Size | Ø168.5 x 23 mm |
| Voltage | 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD18025YD1-LB | 12 | 10.8 ~ 13.5 | 0.24 | 2.88 | 1000 | 89 | 2.41 | 24.5 |
| MFD18025YD1-MB | 12 | 10.8 ~ 13.5 | 0.3 | 3.6 | 1400 | 100 | 3 | 26 |
| MFD18025YD1-HB | 12 | 10.8 ~ 13.5 | 0.58 | 6.96 | 1800 | 123.8 | 3.5 | 30 |
| MFD18025YD2-LB | 24 | 18 ~ 26 | 0.12 | 2.88 | 1000 | 89 | 2.41 | 24.5 |
| MFD18025YD2-MB | 24 | 18 ~ 26 | 0.2 | 3.6 | 1400 | 100 | 3 | 26 |
| MFD18025YD2-HHB | 24 | 18 ~ 26 | 0.25 | 6 | 1800 | 123.8 | 3.5 | 30 |

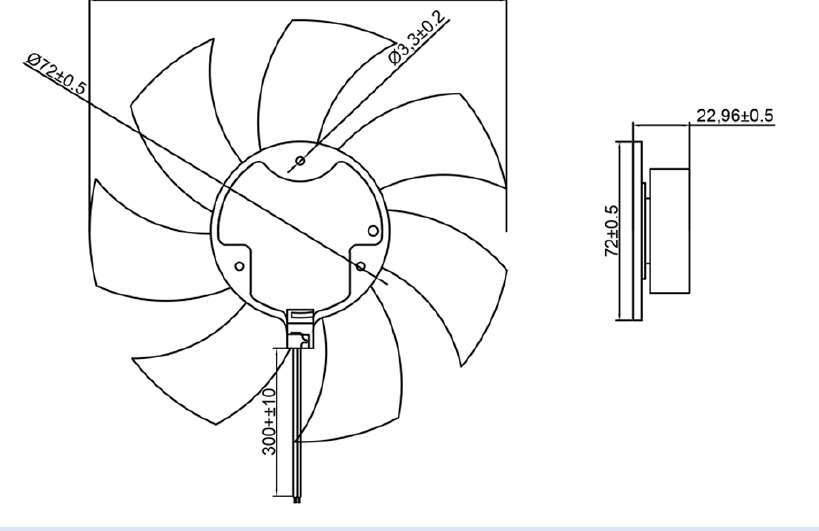

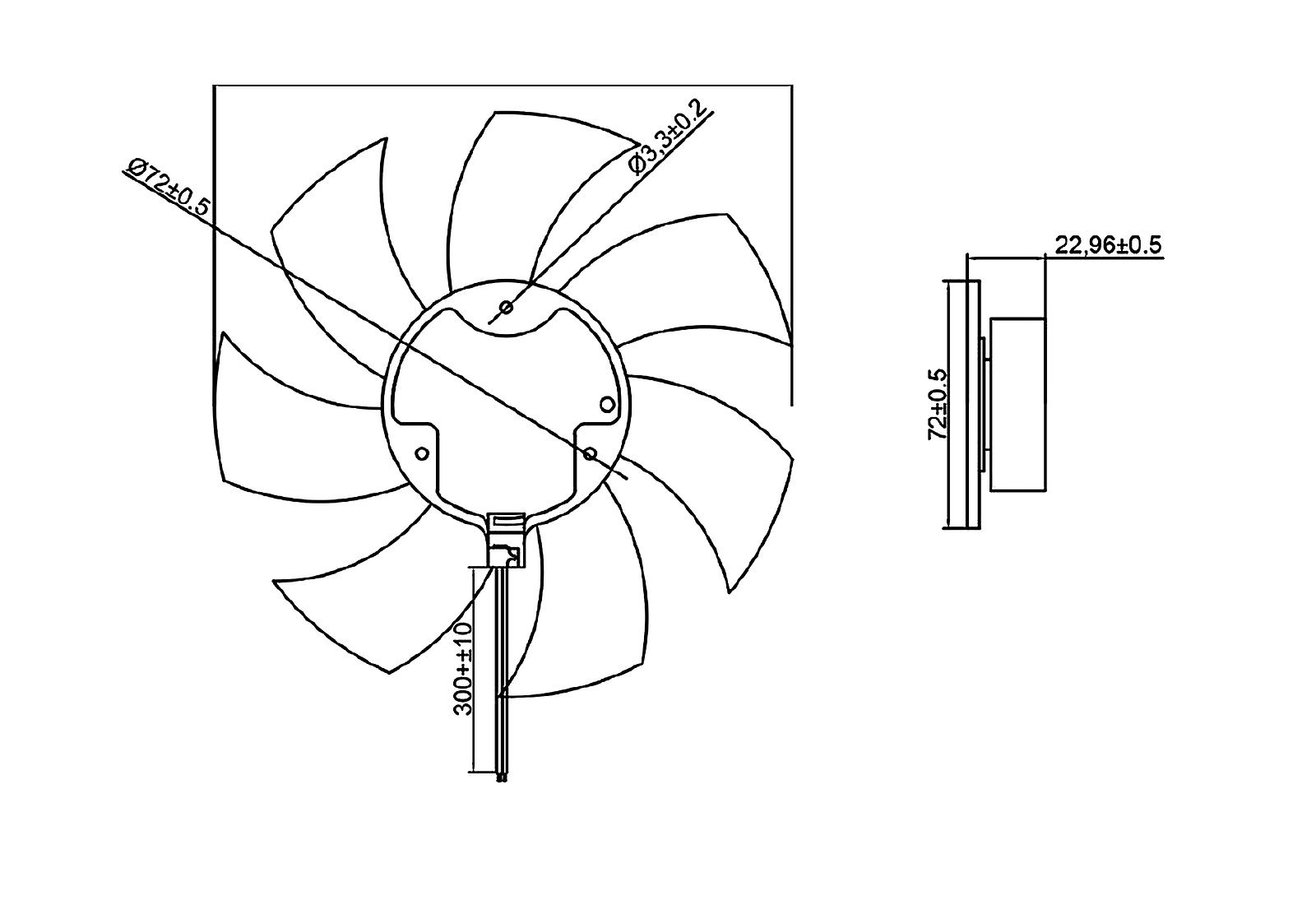

Dimension Drawing

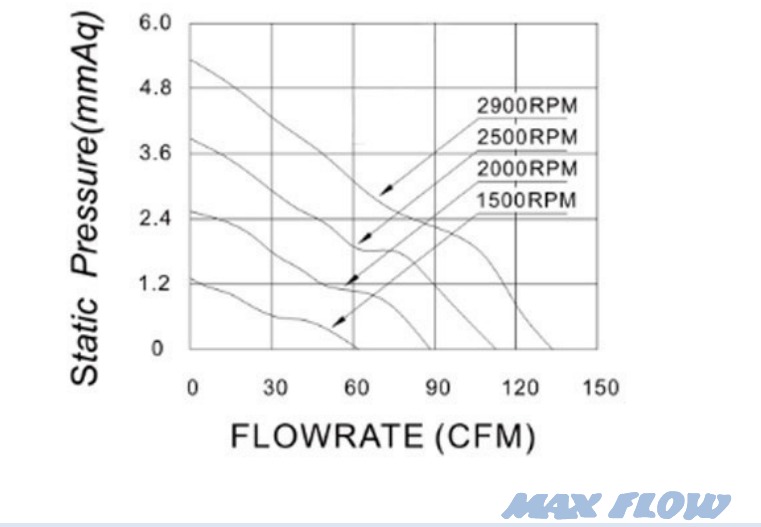

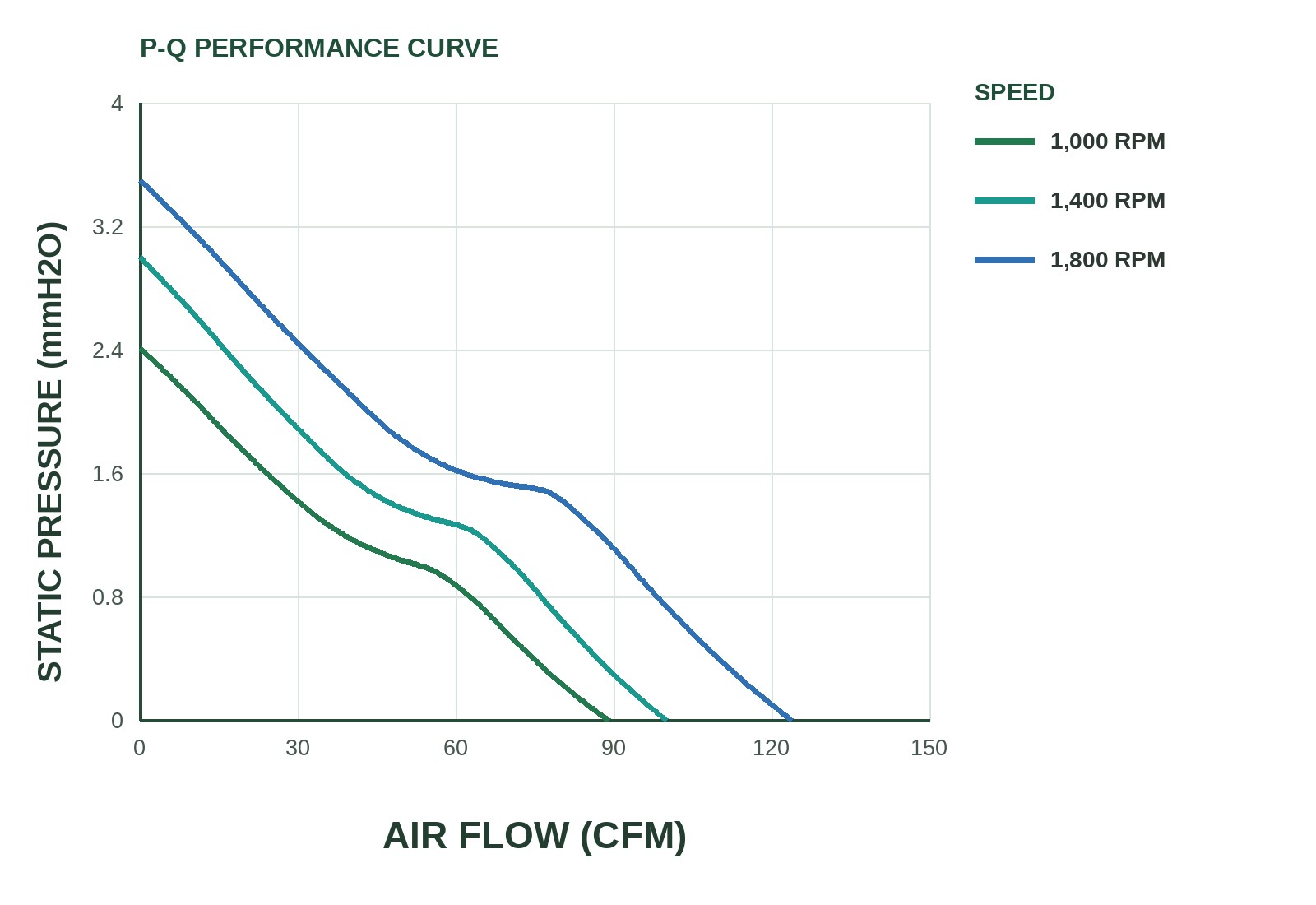

P&Q Curve
