Frameless DC Fan
MFD3510Y
32 x 32 x 12.2 mm
Airflow
3.91~7.41 CFM
Speed
7000~14000 RPM
Noise
28~44.7 dB(A)
Product Specifications
| Size | 32 x 32 x 12.2 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 20,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3510YD05-MB | 5 | 1.8 ~ 6.8 | 0.1 | 0.5 | 7000 | 3.91 | 2.84 | 28 |
| MFD3510YD05-MS | 5 | 1.8 ~ 6.8 | 0.1 | 0.5 | 7000 | 3.91 | 2.84 | 28 |
| MFD3510YD05-MLB | 5 | 1.8 ~ 6.8 | 0.12 | 0.6 | 8000 | 4.5 | 3.51 | 31 |
| MFD3510YD05-MLS | 5 | 1.8 ~ 6.8 | 0.12 | 0.6 | 8000 | 4.5 | 3.51 | 31 |
| MFD3510YD05-HB | 5 | 1.8 ~ 6.8 | 0.13 | 0.65 | 9000 | 5 | 4.31 | 34.4 |
| MFD3510YD05-HS | 5 | 1.8 ~ 6.8 | 0.13 | 0.65 | 9000 | 5 | 4.31 | 34.4 |
| MFD3510YD05-LHB | 5 | 1.8 ~ 6.8 | 0.14 | 0.7 | 10000 | 5.32 | 5.12 | 37.1 |
| MFD3510YD05-LHS | 5 | 1.8 ~ 6.8 | 0.14 | 0.7 | 10000 | 5.32 | 5.12 | 37.1 |
| MFD3510YD05-HHB | 5 | 1.8 ~ 6.8 | 0.16 | 0.8 | 11000 | 6.06 | 6.11 | 39.4 |
| MFD3510YD05-HHS | 5 | 1.8 ~ 6.8 | 0.16 | 0.8 | 11000 | 6.06 | 6.11 | 39.4 |
| MFD3510YD05-HLB | 5 | 1.8 ~ 6.8 | 0.18 | 0.9 | 12000 | 6.39 | 6.77 | 41 |
| MFD3510YD05-HLS | 5 | 1.8 ~ 6.8 | 0.18 | 0.9 | 12000 | 6.39 | 6.77 | 41 |
| MFD3510YD05-VHB | 5 | 1.8 ~ 6.8 | 0.2 | 1 | 13000 | 6.87 | 7.97 | 42.6 |
| MFD3510YD05-VHS | 5 | 1.8 ~ 6.8 | 0.2 | 1 | 13000 | 6.87 | 7.97 | 42.6 |
| MFD3510YD05-HVB | 5 | 1.8 ~ 6.8 | 0.22 | 1.1 | 14000 | 7.41 | 8.74 | 44.7 |
| MFD3510YD05-HVS | 5 | 1.8 ~ 6.8 | 0.22 | 1.1 | 14000 | 7.41 | 8.74 | 44.7 |
| MFD3510YD1-MB | 12 | 7.0 ~ 13.5 | 0.042 | 0.5 | 7000 | 3.91 | 2.84 | 28 |
| MFD3510YD1-MS | 12 | 7.0 ~ 13.5 | 0.042 | 0.5 | 7000 | 3.91 | 2.84 | 28 |
| MFD3510YD1-MLB | 12 | 7.0 ~ 13.5 | 0.05 | 0.6 | 8000 | 4.5 | 3.51 | 31 |
| MFD3510YD1-MLS | 12 | 7.0 ~ 13.5 | 0.05 | 0.6 | 8000 | 4.5 | 3.51 | 31 |
| MFD3510YD1-HB | 12 | 7.0 ~ 13.5 | 0.054 | 0.65 | 9000 | 5 | 4.31 | 34.4 |
| MFD3510YD1-HS | 12 | 7.0 ~ 13.5 | 0.054 | 0.65 | 9000 | 5 | 4.31 | 34.4 |
| MFD3510YD1-LHB | 12 | 7.0 ~ 13.5 | 0.058 | 0.7 | 10000 | 5.32 | 5.12 | 37.1 |
| MFD3510YD1-LHS | 12 | 7.0 ~ 13.5 | 0.058 | 0.7 | 10000 | 5.32 | 5.12 | 37.1 |
| MFD3510YD1-HHB | 12 | 7.0 ~ 13.5 | 0.067 | 0.8 | 11000 | 6.06 | 6.11 | 39.4 |
| MFD3510YD1-HHS | 12 | 7.0 ~ 13.5 | 0.067 | 0.8 | 11000 | 6.06 | 6.11 | 39.4 |
| MFD3510YD1-HLB | 12 | 7.0 ~ 13.5 | 0.075 | 0.9 | 12000 | 6.39 | 6.77 | 41 |
| MFD3510YD1-HLS | 12 | 7.0 ~ 13.5 | 0.075 | 0.9 | 12000 | 6.39 | 6.77 | 41 |
| MFD3510YD1-VHB | 12 | 7.0 ~ 13.5 | 0.083 | 1 | 13000 | 6.87 | 7.97 | 42.6 |
| MFD3510YD1-VHS | 12 | 7.0 ~ 13.5 | 0.083 | 1 | 13000 | 6.87 | 7.97 | 42.6 |
| MFD3510YD1-HVB | 12 | 7.0 ~ 13.5 | 0.092 | 1.1 | 14000 | 7.41 | 8.74 | 44.7 |
| MFD3510YD1-HVS | 12 | 7.0 ~ 13.5 | 0.092 | 1.1 | 14000 | 7.41 | 8.74 | 44.7 |

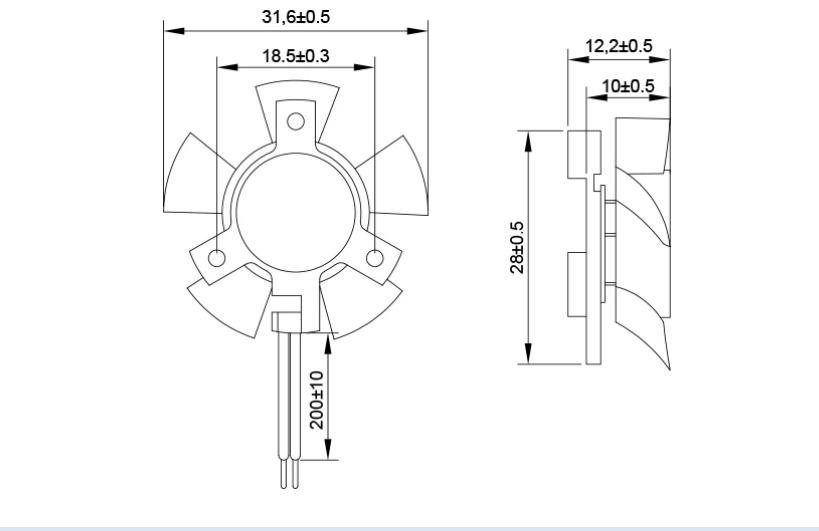

Dimension Drawing

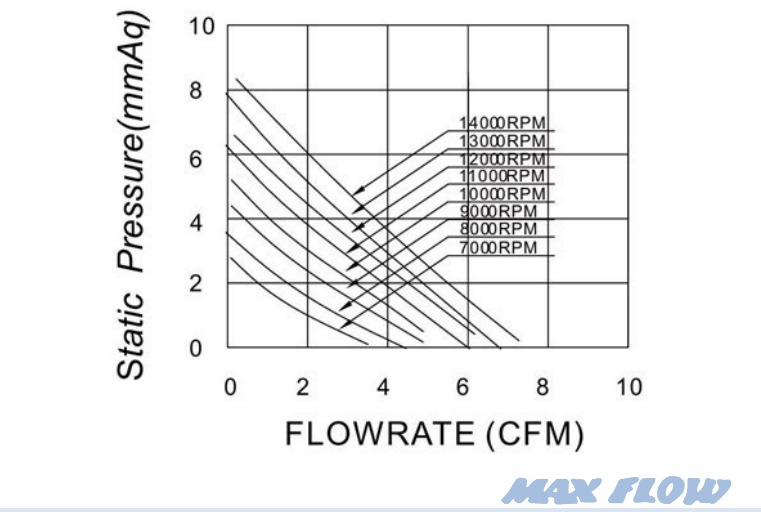

P&Q Curve
