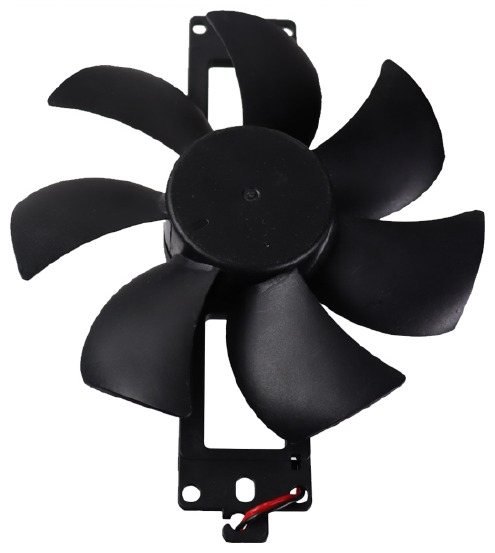

Frameless DC Fan
MFD12025L
145.7 x 108 x 24.5 mm
Airflow
64.2~107 CFM
Speed
1500~3000 RPM
Noise
30.5~47.4 dB(A)
Product Specifications
| Size | 145.7 x 108 x 24.5 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing | Ball Bearing / Sleeve Bearing |
| Operating Temp. | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 20,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025LD1-L | 12 | 6.0 ~ 13.5 | 0.18 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| MFD12025LD1-M | 12 | 6.0 ~ 13.5 | 0.25 | 3 | 2000 | 76.6 | 2.43 | 36.5 |
| MFD12025LD1-H | 12 | 6.0 ~ 13.5 | 0.31 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| MFD12025LD1-HH | 12 | 6.0 ~ 13.5 | 0.45 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
| MFD12025LD2-L | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| MFD12025LD2-M | 24 | 18 ~ 26.5 | 0.125 | 3 | 2000 | 76.6 | 2.43 | 36.5 |
| MFD12025LD2-H | 24 | 18 ~ 26.5 | 0.155 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| MFD12025LD2-HH | 24 | 18 ~ 26.5 | 0.225 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
| MFD12025LD4-L | 48 | 36 ~ 55 | 0.045 | 2.16 | 1500 | 64.2 | 1.76 | 30.5 |
| MFD12025LD4-M | 48 | 36 ~ 55 | 0.063 | 3 | 2000 | 76.6 | 2.43 | 36.5 |
| MFD12025LD4-H | 48 | 36 ~ 55 | 0.078 | 3.72 | 2500 | 92.4 | 3.98 | 42.1 |
| MFD12025LD4-HH | 48 | 36 ~ 55 | 0.112 | 5.4 | 3000 | 107 | 5.04 | 47.4 |
Specifications subject to change without notice. Specifications are governed by the official approval sheet.

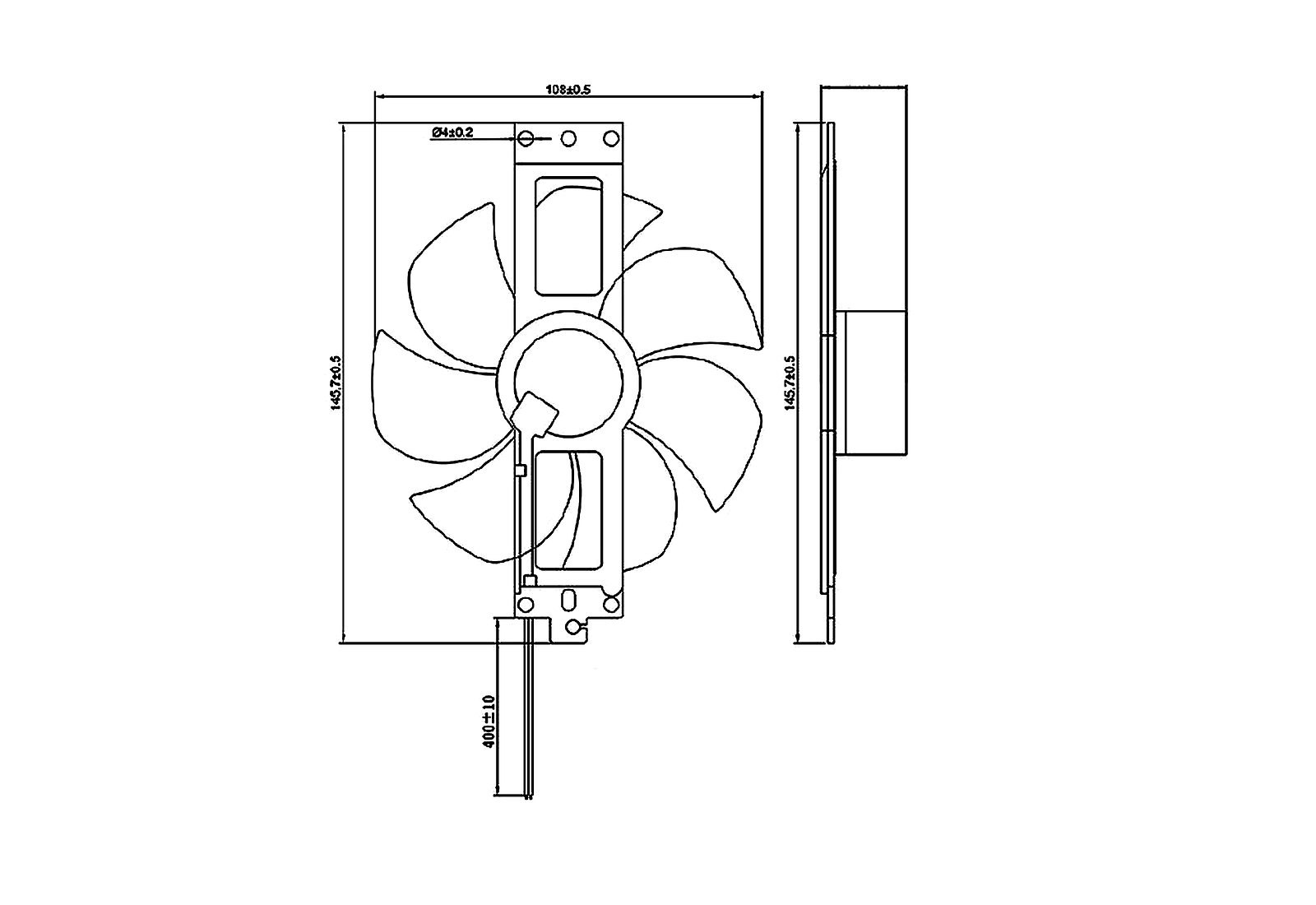

Dimension Drawing

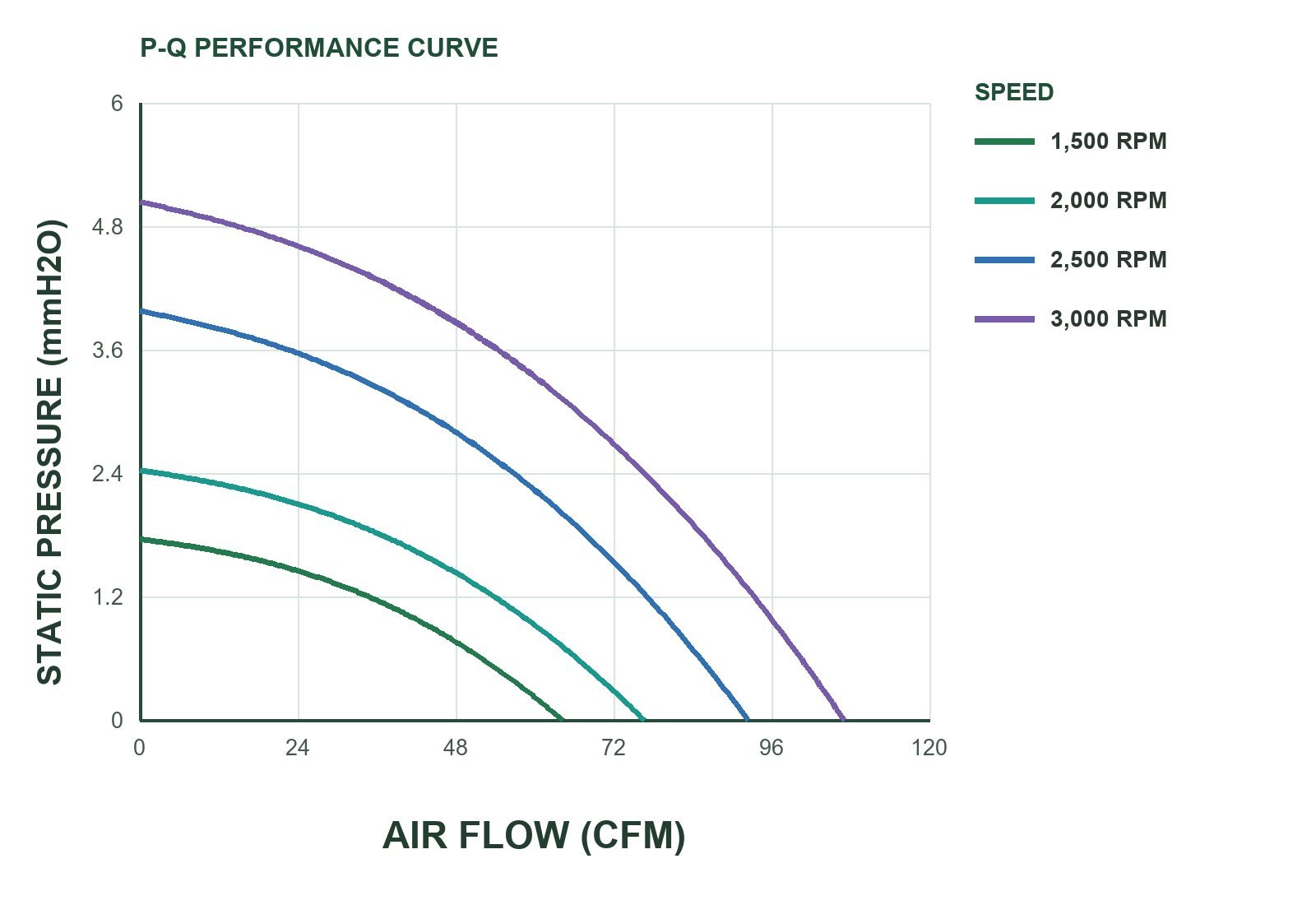

P&Q Curve
