Frameless DC Fan
MFD3010Y
28 x 28 x 10 mm
Airflow
2.21~4.49 CFM
Speed
5000~11000 RPM
Noise
20.8~34 dB(A)
Product Specifications
| Size | 28 x 28 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 20,000 hours at 25°C |
| Available Functions | FG / PWM / RD / LD |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3010YD05-LB | 5 | 1.8 ~ 6.8 | 0.14 | 0.72 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010YD05-LS | 5 | 1.8 ~ 6.8 | 0.14 | 0.72 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010YD05-LMB | 5 | 1.8 ~ 6.8 | 0.15 | 0.75 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010YD05-LMS | 5 | 1.8 ~ 6.8 | 0.15 | 0.75 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010YD05-MB | 5 | 1.8 ~ 6.8 | 0.17 | 0.84 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010YD05-MS | 5 | 1.8 ~ 6.8 | 0.17 | 0.84 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010YD05-LHB | 5 | 1.8 ~ 6.8 | 0.18 | 0.9 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010YD05-LHS | 5 | 1.8 ~ 6.8 | 0.18 | 0.9 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010YD05-HB | 5 | 1.8 ~ 6.8 | 0.19 | 0.96 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010YD05-HS | 5 | 1.8 ~ 6.8 | 0.19 | 0.96 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010YD05-HLB | 5 | 1.8 ~ 6.8 | 0.2 | 1 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010YD05-HLS | 5 | 1.8 ~ 6.8 | 0.2 | 1 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010YD05-HHB | 5 | 1.8 ~ 6.8 | 0.22 | 1.08 | 11000 | 4.49 | 6.05 | 34 |
| MFD3010YD05-HHS | 5 | 1.8 ~ 6.8 | 0.22 | 1.08 | 11000 | 4.49 | 6.05 | 34 |
| MFD3010YD1-LB | 12 | 7.0 ~ 13.5 | 0.06 | 0.72 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010YD1-LS | 12 | 7.0 ~ 13.5 | 0.06 | 0.72 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010YD1-LMB | 12 | 7.0 ~ 13.5 | 0.07 | 0.84 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010YD1-LMS | 12 | 7.0 ~ 13.5 | 0.07 | 0.84 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010YD1-MB | 12 | 7.0 ~ 13.5 | 0.08 | 0.96 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010YD1-MS | 12 | 7.0 ~ 13.5 | 0.08 | 0.96 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010YD1-LHB | 12 | 7.0 ~ 13.5 | 0.09 | 1.08 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010YD1-LHS | 12 | 7.0 ~ 13.5 | 0.09 | 1.08 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010YD1-HB | 12 | 7.0 ~ 13.5 | 0.1 | 1.2 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010YD1-HS | 12 | 7.0 ~ 13.5 | 0.1 | 1.2 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010YD1-HLB | 12 | 7.0 ~ 13.5 | 0.12 | 1.44 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010YD1-HLS | 12 | 7.0 ~ 13.5 | 0.12 | 1.44 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010YD1-HHB | 12 | 7.0 ~ 13.5 | 0.13 | 1.56 | 11000 | 4.49 | 6.05 | 34 |
| MFD3010YD1-HHS | 12 | 7.0 ~ 13.5 | 0.13 | 1.56 | 11000 | 4.49 | 6.05 | 34 |

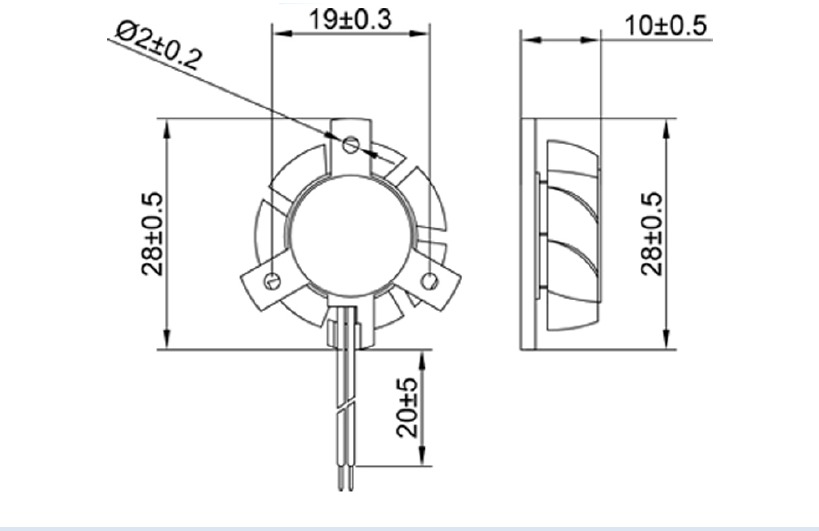

Dimension Drawing

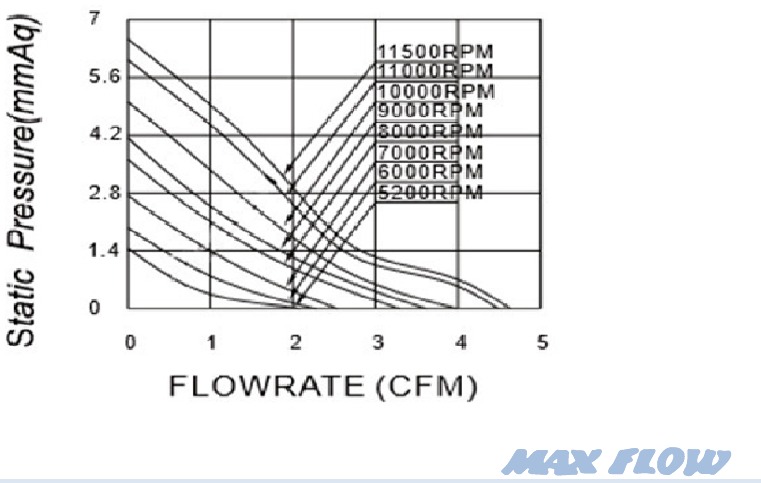

P&Q Curve
