DC Fan
MFD22060
: Ø220 x 60 mm
Airflow
400.6~645.6 CFM
Speed
2000~3500 RPM
Noise
54.6~68.5 dB(A)
Product Specifications
| Size | : Ø220 x 60 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD22060D1-MB | 12 | 7 ~ 13.8 | 1.65 | 19.8 | 2000 | 400.58 | 6.65 | 54.6 |
| MFD22060D1-HB | 12 | 7 ~ 13.8 | 2.92 | 35.04 | 2500 | 513.39 | 12.15 | 60 |
| MFD22060D1-HHB | 12 | 7 ~ 13.8 | 4.73 | 56.76 | 3000 | 586.69 | 17.28 | 63.6 |
| MFD22060D1-VHB | 12 | 7 ~ 13.8 | 7.4 | 88.8 | 3500 | 645.61 | 22.02 | 68.5 |
| MFD22060D2-MB | 24 | 18 ~ 26.5 | 0.78 | 18.81 | 2000 | 400.58 | 6.65 | 54.6 |
| MFD22060D2-HB | 24 | 18 ~ 26.5 | 1.39 | 33.29 | 2500 | 513.39 | 12.15 | 60 |
| MFD22060D2-HHB | 24 | 18 ~ 26.5 | 2.25 | 53.92 | 3000 | 586.69 | 17.28 | 63.6 |
| MFD22060D2-VHB | 24 | 18 ~ 26.5 | 3.52 | 84.36 | 3500 | 645.61 | 22.02 | 68.5 |
| MFD22060D4-MB | 48 | 36 ~ 54 | 0.37 | 17.87 | 2000 | 400.58 | 6.65 | 54.6 |
| MFD22060D4-HB | 48 | 36 ~ 54 | 0.66 | 31.62 | 2500 | 513.39 | 12.15 | 60 |
| MFD22060D4-HHB | 48 | 36 ~ 54 | 1.07 | 51.23 | 3000 | 586.69 | 17.28 | 63.6 |
| MFD22060D4-VHB | 48 | 36 ~ 54 | 1.67 | 80.14 | 3500 | 645.61 | 22.02 | 68.5 |

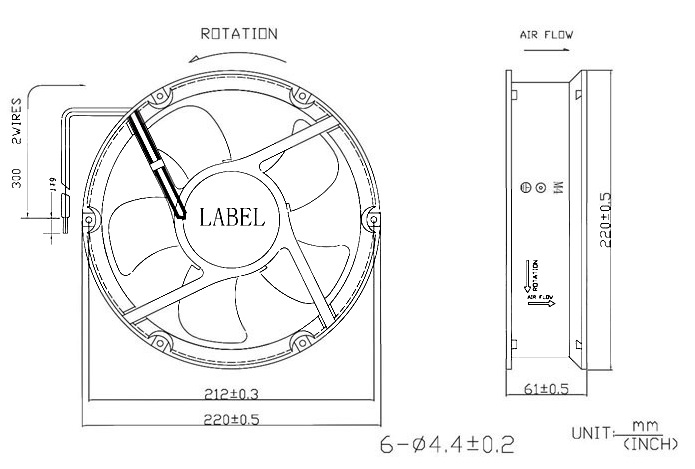

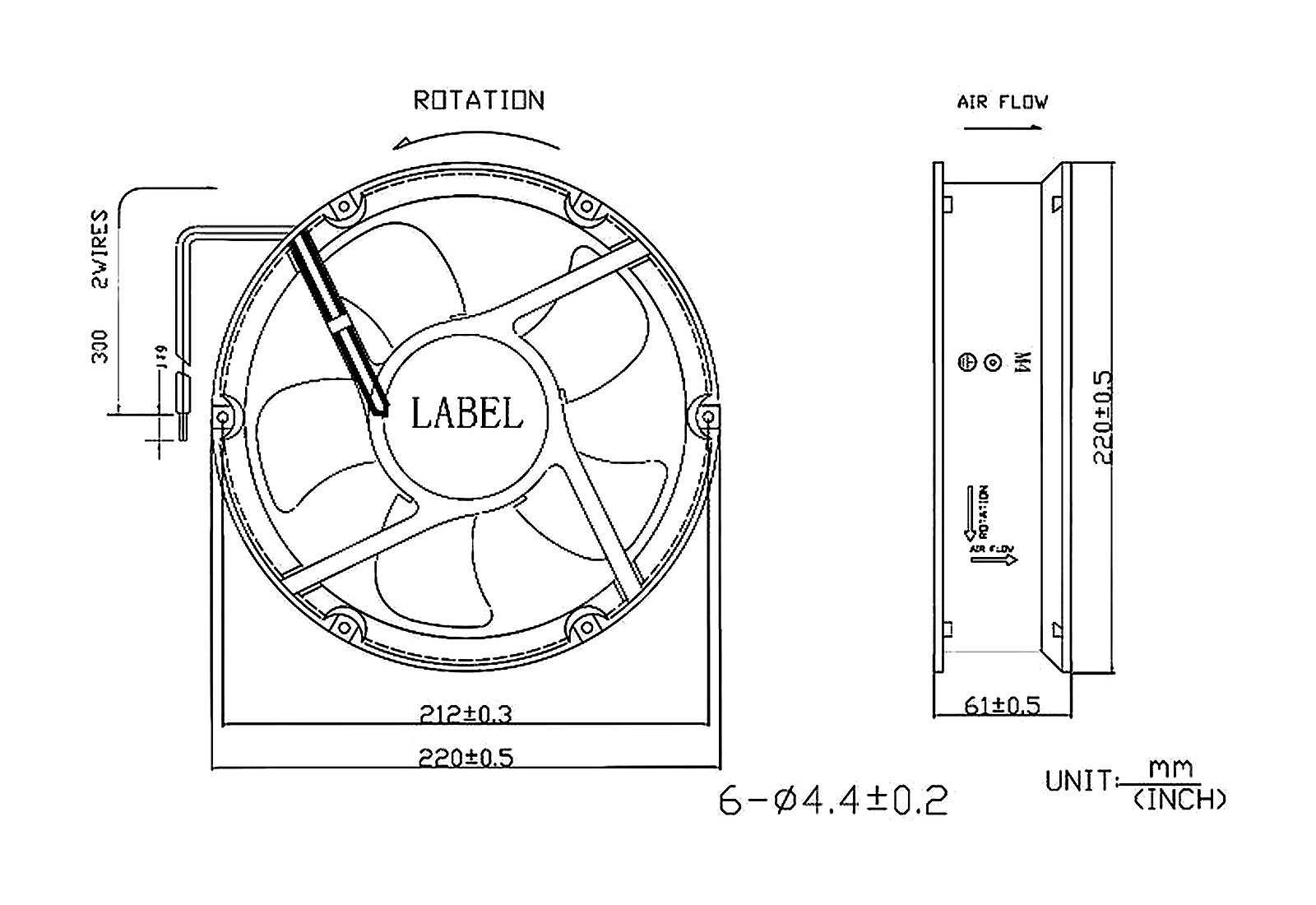

Dimension Drawing

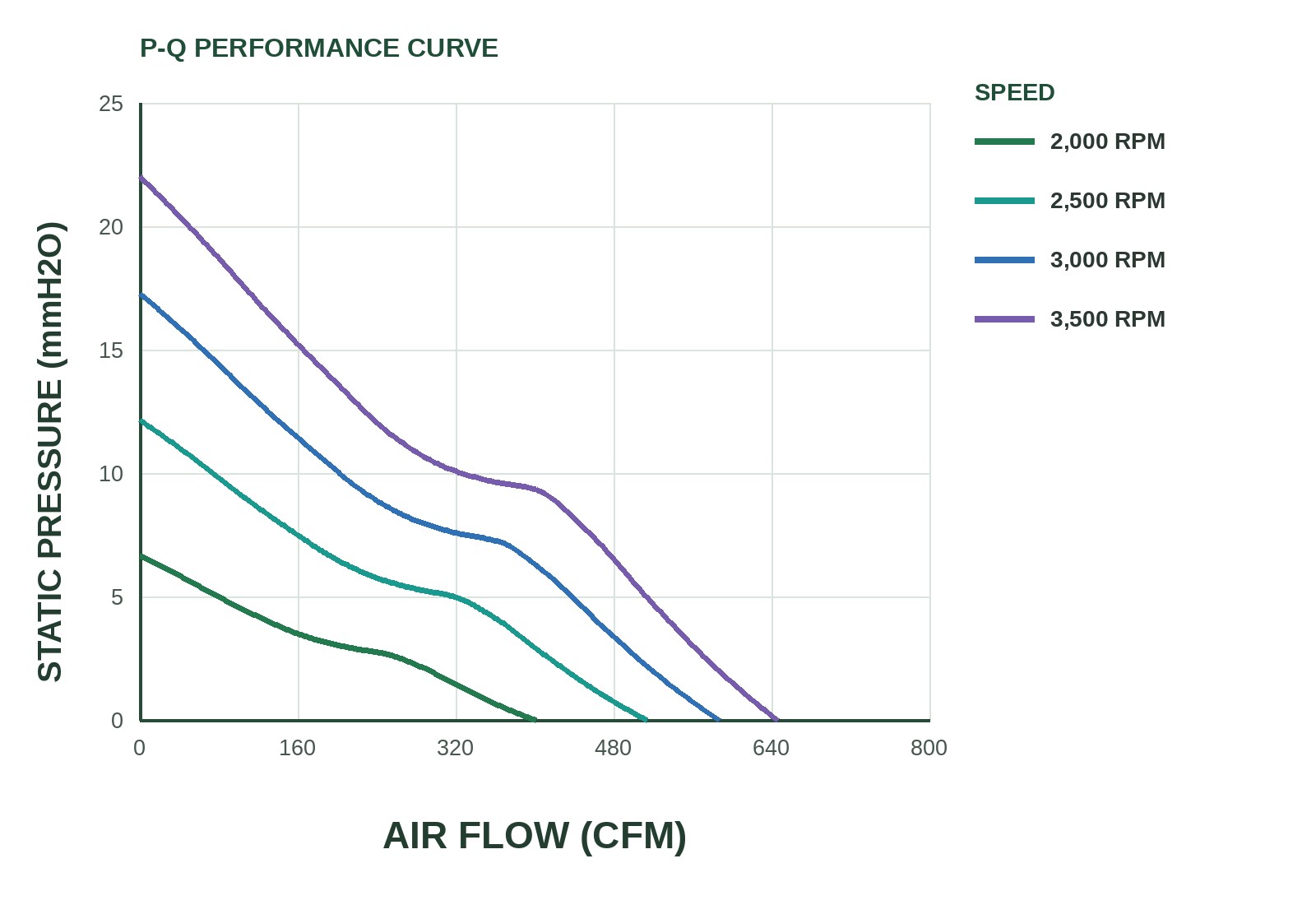

P&Q Curve
