DC Fan
MFD3015
: 30 x 30 x15 mm
Airflow
2.3~4.5 CFM
Speed
6000~12000 RPM
Noise
20~35.2 dB(A)
Product Specifications
| Size | : 30 x 30 x15 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3015D05-HB | 5 | 3.5 ~ 5.5 | 0.32 | 1.6 | 10000 | 3.9 | 4.2 | 31 |
| MFD3015D05-HHB | 5 | 3.5 ~ 5.5 | 0.42 | 2.1 | 12000 | 4.48 | 6.95 | 35.2 |
| MFD3015D05-HHS | 5 | 3.5 ~ 5.5 | 0.42 | 2.1 | 12000 | 4.48 | 6.95 | 35.2 |
| MFD3015D05-HS | 5 | 3.5 ~ 5.5 | 0.32 | 1.6 | 10000 | 3.9 | 4.2 | 31 |
| MFD3015D05-LB | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 6000 | 2.3 | 2.56 | 20 |
| MFD3015D05-LS | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 6000 | 2.3 | 2.56 | 20 |
| MFD3015D05-MB | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 8000 | 2.89 | 3.08 | 24.6 |
| MFD3015D05-MS | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 8000 | 2.89 | 3.08 | 24.6 |
| MFD3015D1-HB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 10000 | 3.9 | 4.2 | 31 |
| MFD3015D1-HHB | 12 | 7 ~ 13.8 | 0.14 | 1.68 | 12000 | 4.48 | 6.95 | 35.2 |
| MFD3015D1-HHS | 12 | 7 ~ 13.8 | 0.14 | 1.68 | 12000 | 4.48 | 6.95 | 35.2 |
| MFD3015D1-HS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 10000 | 3.9 | 4.2 | 31 |
| MFD3015D1-LB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 6000 | 2.3 | 2.56 | 20 |
| MFD3015D1-LS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 6000 | 2.3 | 2.56 | 20 |
| MFD3015D1-MB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 8000 | 2.89 | 3.08 | 24.6 |
| MFD3015D1-MS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 8000 | 2.89 | 3.08 | 24.6 |

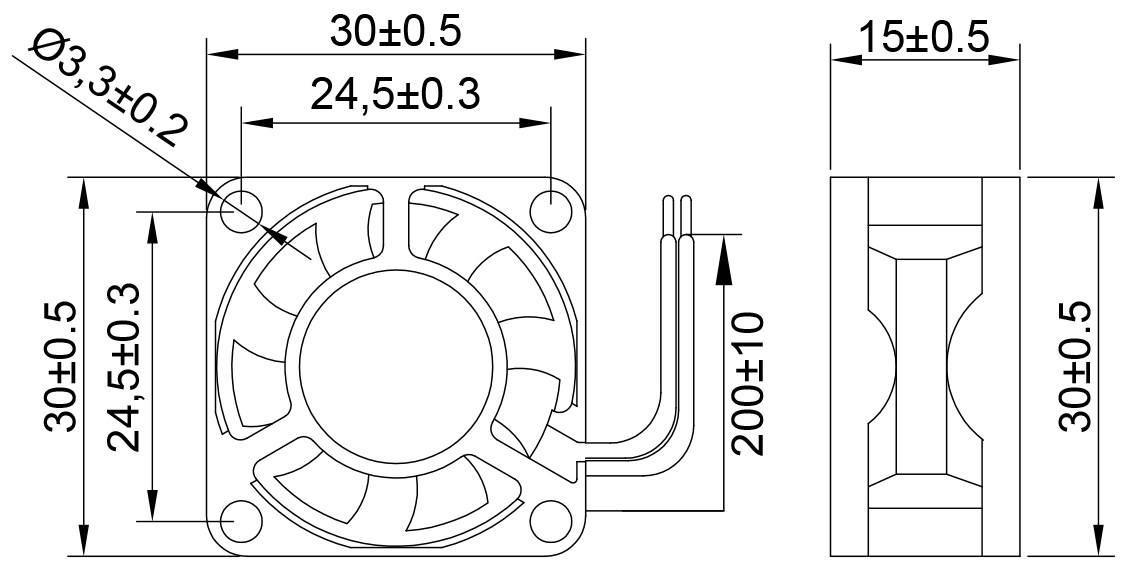

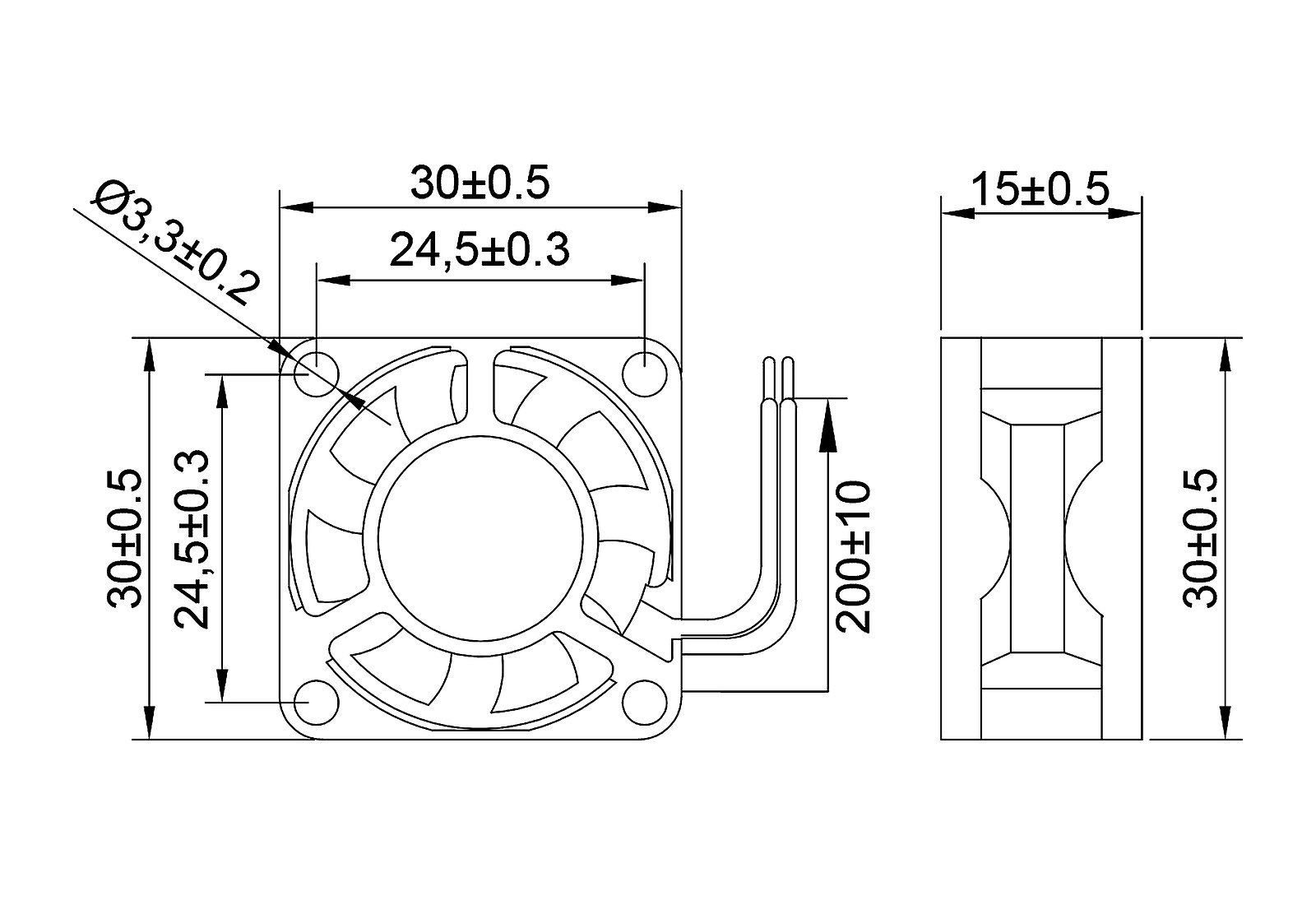

Dimension Drawing

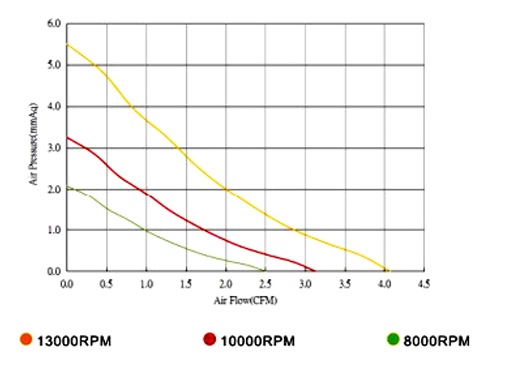

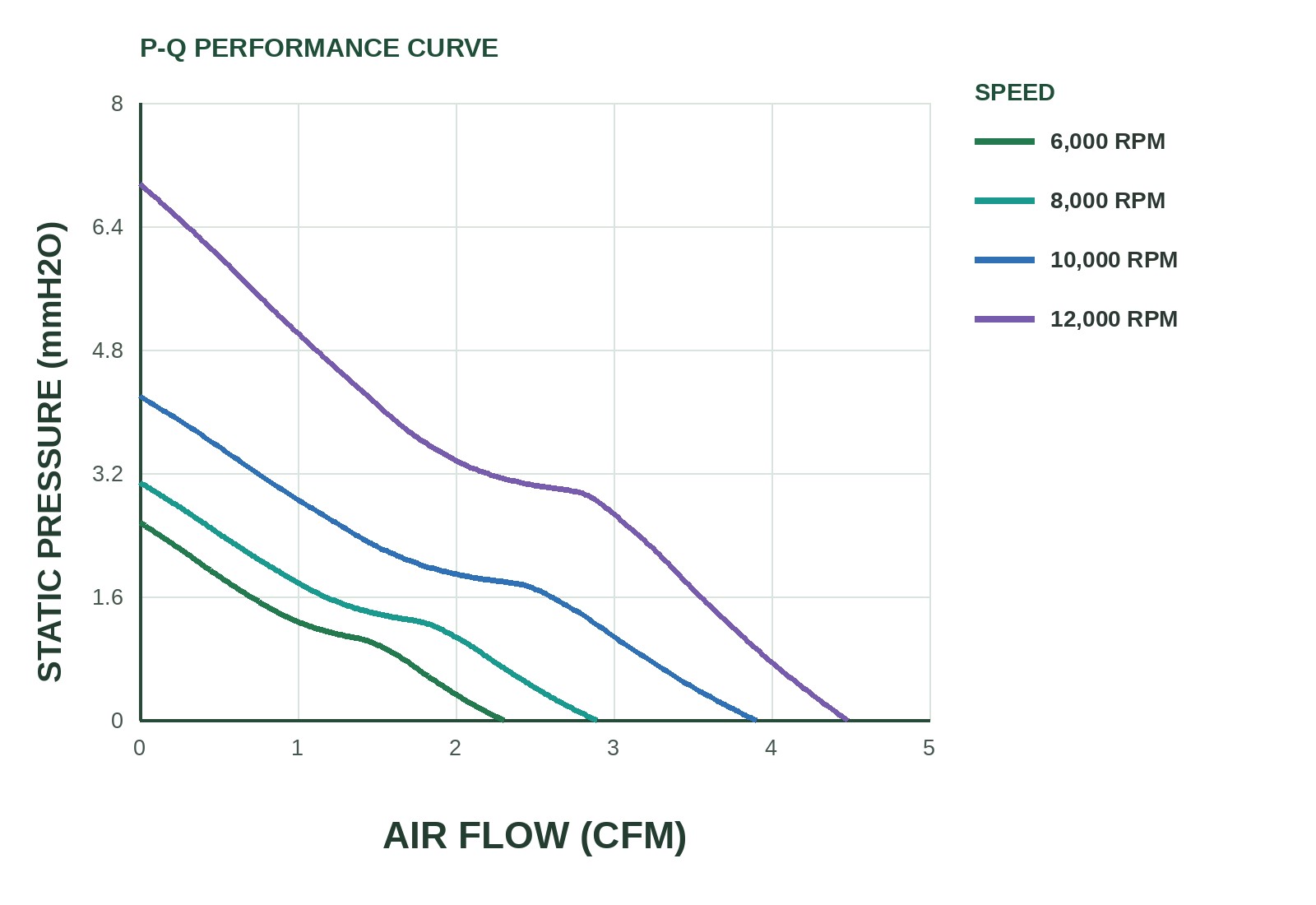

P&Q Curve
