DC Fan
MFD8025D
: 80 x 80 x 25 mm
Airflow
24.7~40.2 CFM
Speed
2150~3400 RPM
Noise
22~35 dB(A)
Product Specifications
| Size | : 80 x 80 x 25 mm |
| Voltage | 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD8025DD1-HB | 12 | 7 ~ 13.8 | 0.13 | 1.56 | 3000 | 35.3 | 3.29 | 31 |
| MFD8025DD1-HHB | 12 | 7 ~ 13.8 | 0.17 | 2.04 | 3250 | 38.6 | 3.79 | 34 |
| MFD8025DD1-HHS | 12 | 7 ~ 13.8 | 0.17 | 2.04 | 3250 | 38.6 | 3.79 | 34 |
| MFD8025DD1-HS | 12 | 7 ~ 13.8 | 0.13 | 1.56 | 3000 | 35.3 | 3.29 | 31 |
| MFD8025DD1-LB | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 2400 | 28.2 | 2.2 | 25 |
| MFD8025DD1-LLB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 2150 | 24.7 | 1.7 | 22 |
| MFD8025DD1-LLS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 2150 | 24.7 | 1.7 | 22 |
| MFD8025DD1-LS | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 2400 | 28.2 | 2.2 | 25 |
| MFD8025DD1-MB | 12 | 7 ~ 13.8 | 0.11 | 1.32 | 2700 | 31.7 | 2.7 | 28 |
| MFD8025DD1-MS | 12 | 7 ~ 13.8 | 0.11 | 1.32 | 2700 | 31.7 | 2.7 | 28 |
| MFD8025DD1-VHB | 12 | 7 ~ 13.8 | 0.22 | 2.64 | 3400 | 40.2 | 4.1 | 35 |
| MFD8025DD1-VHS | 12 | 7 ~ 13.8 | 0.22 | 2.64 | 3400 | 40.2 | 4.1 | 35 |
| MFD8025DD2-HB | 24 | 18 ~ 26.5 | 0.07 | 1.68 | 3000 | 35.3 | 3.29 | 31 |
| MFD8025DD2-HHB | 24 | 18 ~ 26.5 | 0.1 | 2.4 | 3250 | 38.6 | 3.79 | 34 |
| MFD8025DD2-HHS | 24 | 18 ~ 26.5 | 0.1 | 2.4 | 3250 | 38.6 | 3.79 | 34 |
| MFD8025DD2-HS | 24 | 18 ~ 26.5 | 0.07 | 1.68 | 3000 | 35.3 | 3.29 | 31 |
| MFD8025DD2-LB | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 2400 | 28.2 | 2.2 | 25 |
| MFD8025DD2-LLB | 24 | 18 ~ 26.5 | 0.045 | 1.08 | 2150 | 24.7 | 1.7 | 22 |
| MFD8025DD2-LLS | 24 | 18 ~ 26.5 | 0.045 | 1.08 | 2150 | 24.7 | 1.7 | 22 |
| MFD8025DD2-LS | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 2400 | 28.2 | 2.2 | 25 |
| MFD8025DD2-MB | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 2700 | 31.7 | 2.7 | 28 |
| MFD8025DD2-MS | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 2700 | 31.7 | 2.7 | 28 |
| MFD8025DD2-VHB | 24 | 18 ~ 26.5 | 0.12 | 2.88 | 3400 | 40.2 | 4.1 | 35 |
| MFD8025DD2-VHS | 24 | 18 ~ 26.5 | 0.12 | 2.88 | 3400 | 40.2 | 4.1 | 35 |

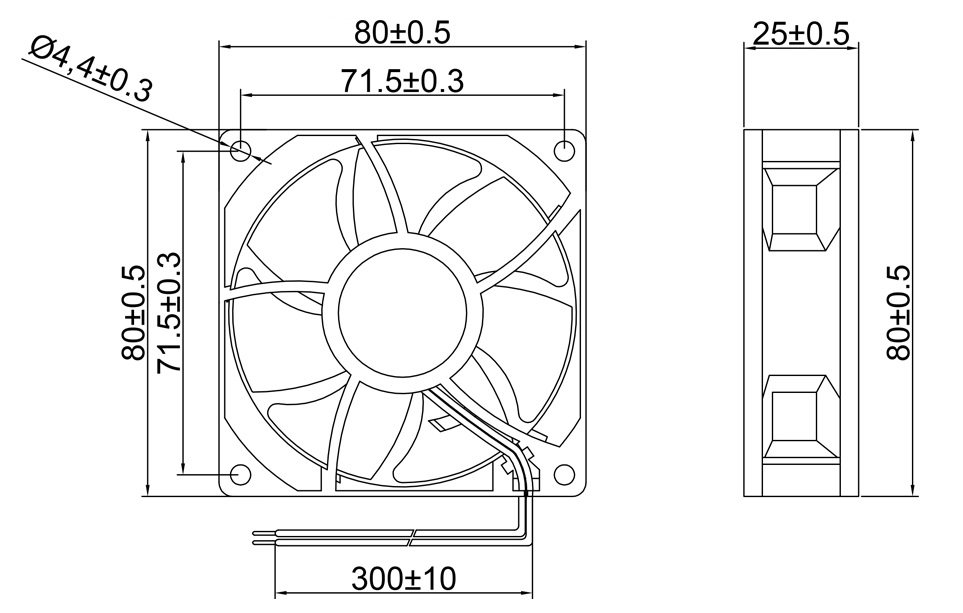

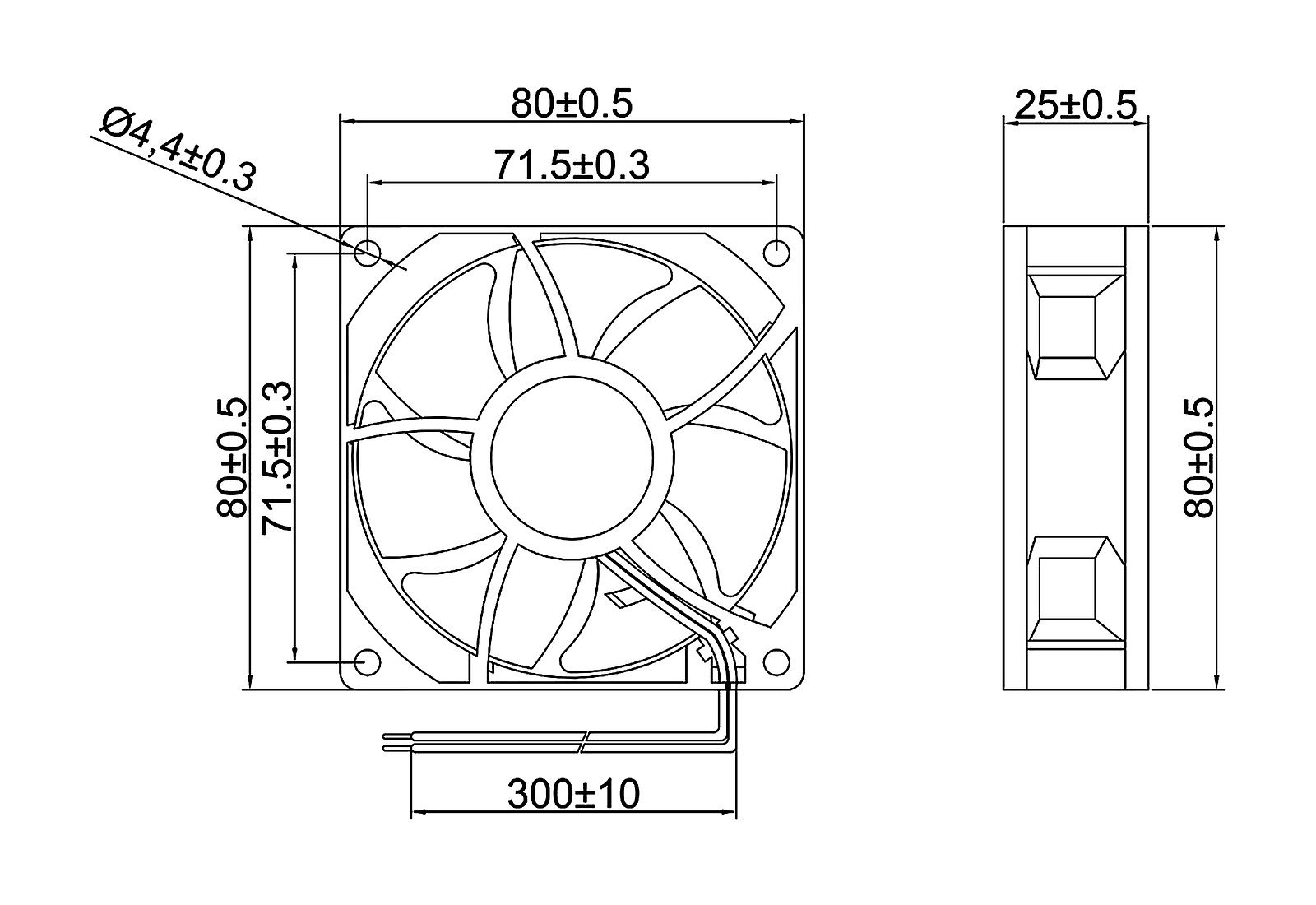

Dimension Drawing

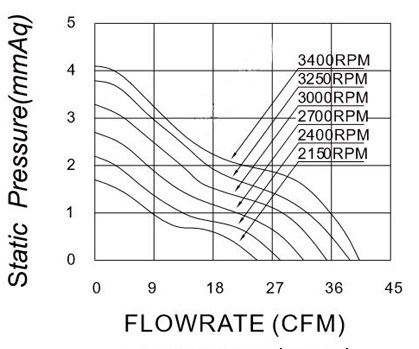

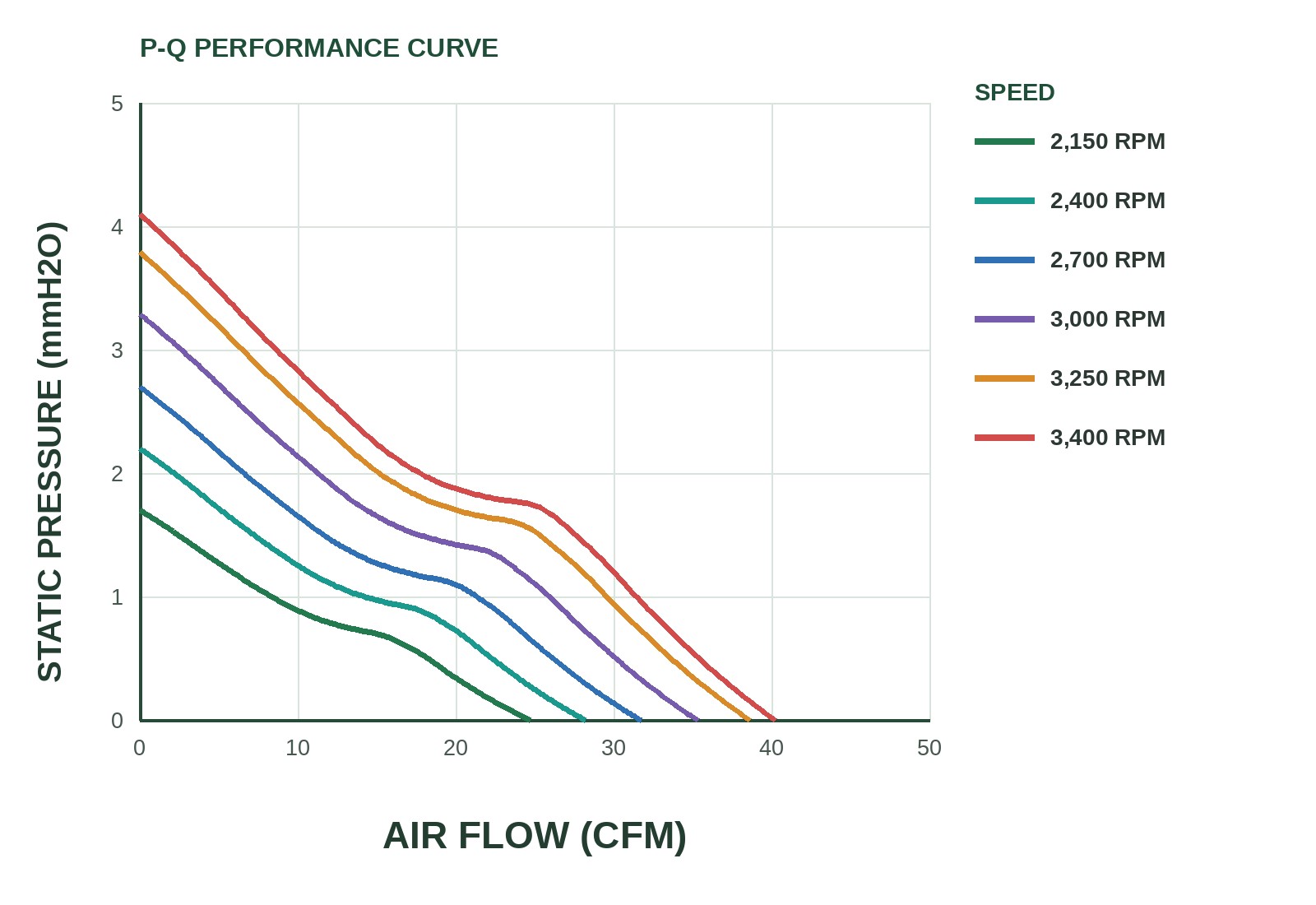

P&Q Curve
