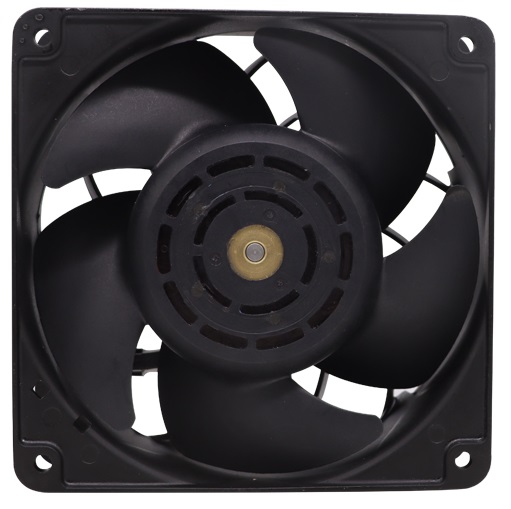

DC Fan
MFD12038E
: 120 x 120 x 38mm
Airflow
311.7 CFM
Speed
11000 RPM
Noise
70.8 dB(A)
Product Specifications
| Size | : 120 x 120 x 38mm |
| Voltage | 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12038ED2-HB | 24 | 18 ~ 26.5 | 3.4 | 81.6 | 11000 | 311.68 | 162.89 | 70.8 |
| MFD12038ED4-HB | 48 | 36 ~ 54 | 1.7 | 81.6 | 11000 | 311.68 | 162.89 | 70.8 |

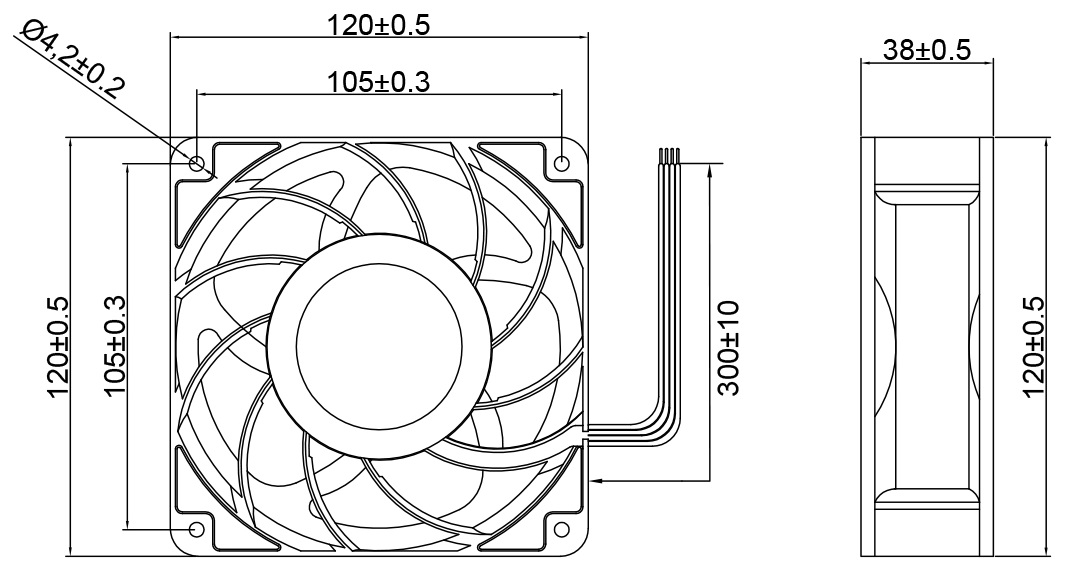

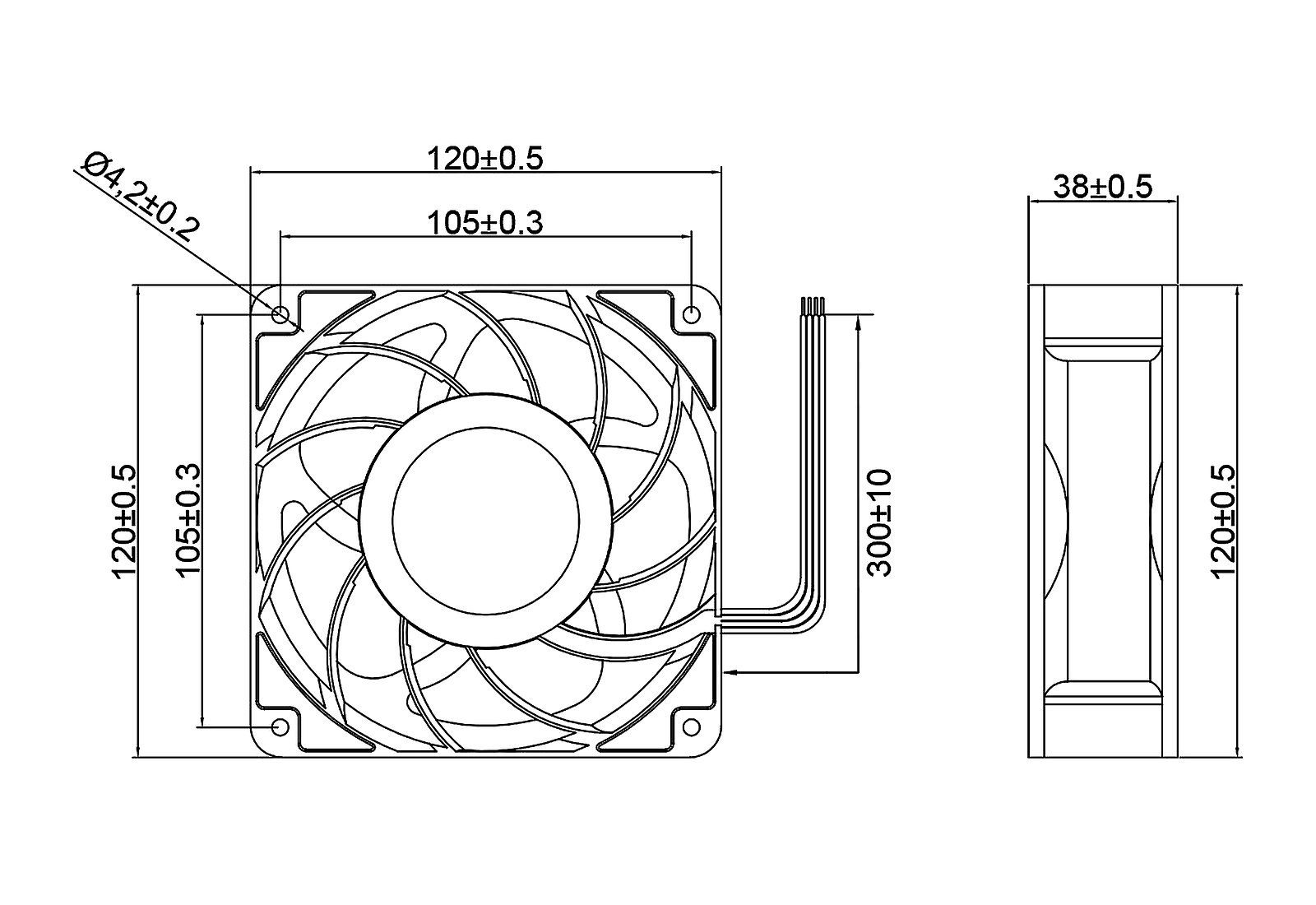

Dimension Drawing

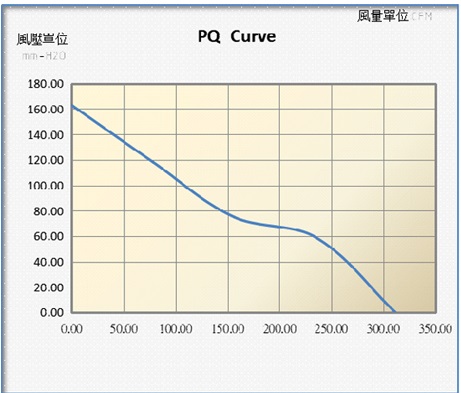

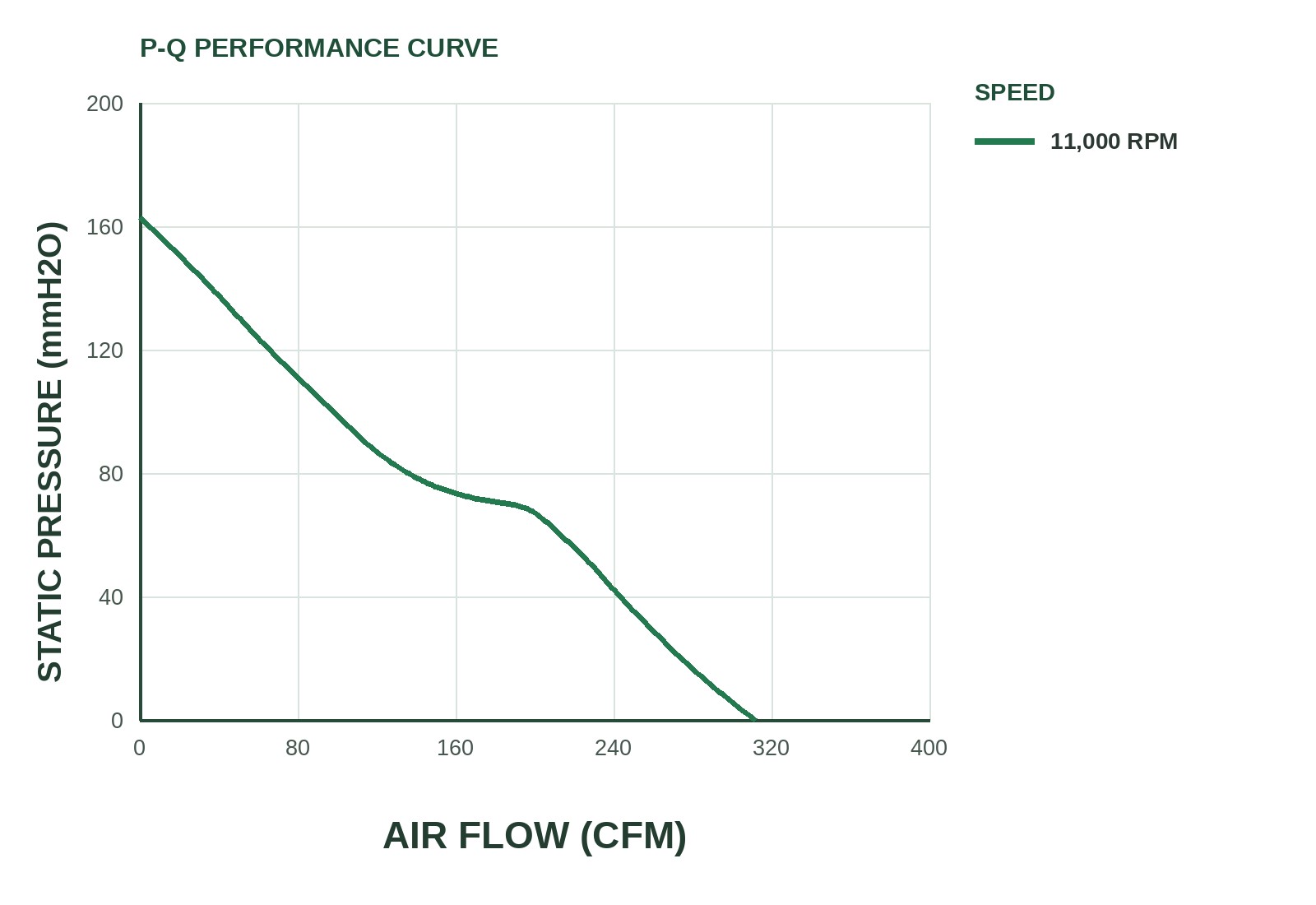

P&Q Curve
