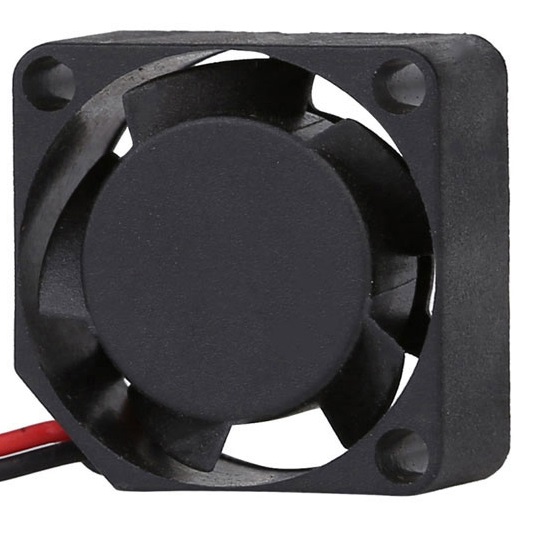

DC Fan
MFD2010
: 20 x 20 x 10 mm
Airflow
1.1~1.4 CFM
Speed
10000~14000 RPM
Noise
18.8~24.2 dB(A)
Product Specifications
| Size | : 20 x 20 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD2010D05-HB | 5 | 3.5 ~ 5.5 | 0.13 | 0.65 | 14000 | 1.35 | 4.3 | 24.2 |
| MFD2010D05-HS | 5 | 3.5 ~ 5.5 | 0.13 | 0.65 | 14000 | 1.35 | 4.3 | 24.2 |
| MFD2010D05-LB | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 10000 | 1.05 | 2.16 | 18.8 |
| MFD2010D05-LS | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 10000 | 1.05 | 2.16 | 18.8 |
| MFD2010D05-MB | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 12000 | 1.14 | 2.65 | 21.3 |
| MFD2010D05-MS | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 12000 | 1.14 | 2.65 | 21.3 |
| MFD2010D1-HB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 14000 | 1.35 | 4.3 | 24.2 |
| MFD2010D1-HS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 14000 | 1.35 | 4.3 | 24.2 |
| MFD2010D1-LB | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 10000 | 1.05 | 2.16 | 18.8 |
| MFD2010D1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 10000 | 1.05 | 2.16 | 18.8 |
| MFD2010D1-MB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 12000 | 1.14 | 2.65 | 21.3 |
| MFD2010D1-MS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 12000 | 1.14 | 2.65 | 21.3 |

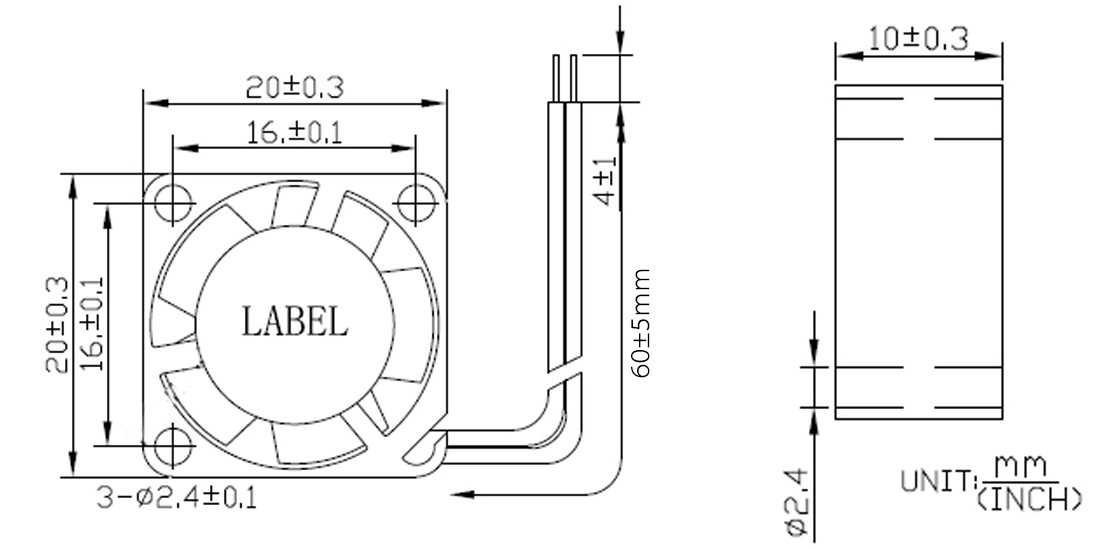

Dimension Drawing

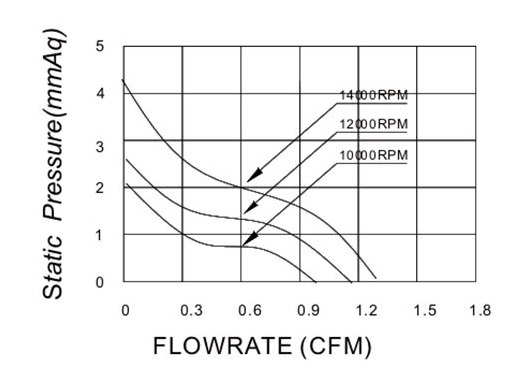

P&Q Curve
