DC Fan
MFD4007
: 40 x 40 x 7 mm
Airflow
3.1~5.4 CFM
Speed
4500~7500 RPM
Noise
23.5~31.5 dB(A)
Product Specifications
| Size | : 40 x 40 x 7 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD4007D05-HB | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 7000 | 5.31 | 2.17 | 30.4 |
| MFD4007D05-HHB | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 7500 | 5.37 | 2.4 | 31.5 |
| MFD4007D05-HHS | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 7500 | 5.37 | 2.4 | 31.5 |
| MFD4007D05-HS | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 7000 | 5.31 | 2.17 | 30.4 |
| MFD4007D05-LB | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 4500 | 3.14 | 0.84 | 23.5 |
| MFD4007D05-LHB | 5 | 3.5 ~ 5.5 | 0.14 | 0.7 | 6500 | 5.06 | 2.02 | 29.3 |
| MFD4007D05-LHS | 5 | 3.5 ~ 5.5 | 0.14 | 0.7 | 6500 | 5.06 | 2.02 | 29.3 |
| MFD4007D05-LMB | 5 | 3.5 ~ 5.5 | 0.09 | 0.45 | 5000 | 3.67 | 1.17 | 24.5 |
| MFD4007D05-LMS | 5 | 3.5 ~ 5.5 | 0.09 | 0.45 | 5000 | 3.67 | 1.17 | 24.5 |
| MFD4007D05-LS | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 4500 | 3.14 | 0.84 | 23.5 |
| MFD4007D05-MB | 5 | 3.5 ~ 5.5 | 0.12 | 0.62 | 6000 | 4.6 | 1.65 | 27.5 |
| MFD4007D05-MLB | 5 | 3.5 ~ 5.5 | 0.11 | 0.55 | 5500 | 3.96 | 1.4 | 25.6 |
| MFD4007D05-MLS | 5 | 3.5 ~ 5.5 | 0.11 | 0.55 | 5500 | 3.96 | 1.4 | 25.6 |
| MFD4007D05-MS | 5 | 3.5 ~ 5.5 | 0.12 | 0.62 | 6000 | 4.6 | 1.65 | 27.5 |
| MFD4007D1-HB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 6500 | 5.06 | 2.02 | 29.3 |
| MFD4007D1-HHB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 7500 | 5.37 | 2.4 | 31.5 |
| MFD4007D1-HHS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 7500 | 5.37 | 2.4 | 31.5 |
| MFD4007D1-HLB | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 7000 | 5.31 | 2.17 | 30.4 |
| MFD4007D1-HLS | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 7000 | 5.31 | 2.17 | 30.4 |
| MFD4007D1-HS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 6500 | 5.06 | 2.02 | 29.3 |
| MFD4007D1-LB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 4500 | 3.14 | 0.84 | 23.5 |
| MFD4007D1-LMB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5000 | 3.67 | 1.17 | 24.5 |
| MFD4007D1-LMS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5000 | 3.67 | 1.17 | 24.5 |
| MFD4007D1-LS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 4500 | 3.14 | 0.84 | 23.5 |
| MFD4007D1-MB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6000 | 4.6 | 1.65 | 27.5 |
| MFD4007D1-MLB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5500 | 3.96 | 1.4 | 25.6 |
| MFD4007D1-MLS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5500 | 3.96 | 1.4 | 25.6 |
| MFD4007D1-MS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6000 | 4.6 | 1.65 | 27.5 |

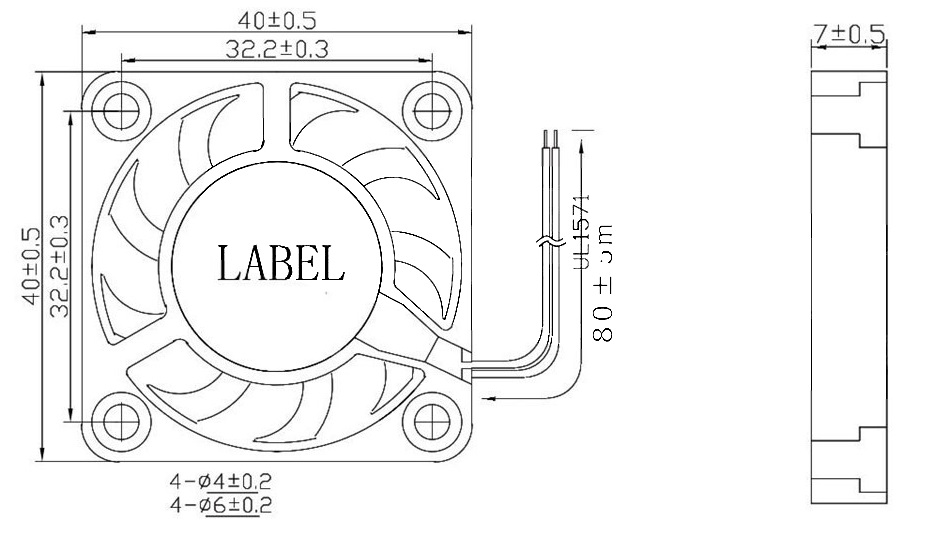

Dimension Drawing
P&Q Curve
