DC Fan
MFD15050
150 x 150 x 51mm
Airflow
172.2~361.7 CFM
Speed
2500~5000 RPM
Noise
56.1~71.4 dB(A)
Product Specifications
| Size | 150 x 150 x 51mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD15050D1-HB | 12 | 1.6 | 19.2 | 3500 | 248.09 | 21.33 | 62.5 | Ball |
| MFD15050D1-HHB | 12 | 2.2 | 26.4 | 4000 | 283 | 27.36 | 65.5 | Ball |
| MFD15050D1-HVB | 12 | 4 | 48 | 5000 | 361.69 | 45.36 | 71.4 | Ball |
| MFD15050D1-LB | 12 | 0.66 | 7.92 | 2500 | 172.21 | 10.92 | 56.1 | Ball |
| MFD15050D1-MB | 12 | 1 | 12 | 3000 | 209.4 | 15.33 | 58.3 | Ball |
| MFD15050D1-VHB | 12 | 3.2 | 38.4 | 4500 | 325.57 | 37.57 | 68.2 | Ball |
| MFD15050D2-HB | 24 | 0.74 | 17.76 | 3500 | 248.09 | 21.33 | 62.5 | Ball |
| MFD15050D2-HHB | 24 | 1.2 | 28.8 | 4000 | 283 | 27.36 | 65.5 | Ball |
| MFD15050D2-HVB | 24 | 2.1 | 50.4 | 5000 | 361.69 | 45.36 | 71.4 | Ball |
| MFD15050D2-LB | 24 | 0.36 | 8.64 | 2500 | 172.21 | 10.92 | 56.1 | Ball |
| MFD15050D2-MB | 24 | 0.53 | 12.72 | 3000 | 209.4 | 15.33 | 58.3 | Ball |
| MFD15050D2-VHB | 24 | 1.7 | 40.8 | 4500 | 325.57 | 37.57 | 68.2 | Ball |
| MFD15050D4-HB | 48 | 0.5 | 24 | 3500 | 248.09 | 21.33 | 62.5 | Ball |
| MFD15050D4-HHB | 48 | 0.7 | 33.6 | 4000 | 283 | 27.36 | 65.5 | Ball |
| MFD15050D4-HVB | 48 | 1.2 | 57.6 | 5000 | 361.69 | 45.36 | 71.4 | Ball |
| MFD15050D4-LB | 48 | 0.2 | 9.6 | 2500 | 172.21 | 10.92 | 56.1 | Ball |
| MFD15050D4-MB | 48 | 0.3 | 14.4 | 3000 | 209.4 | 15.33 | 58.3 | Ball |
| MFD15050D4-VHB | 48 | 0.9 | 43.2 | 4500 | 325.57 | 37.57 | 68.2 | Ball |

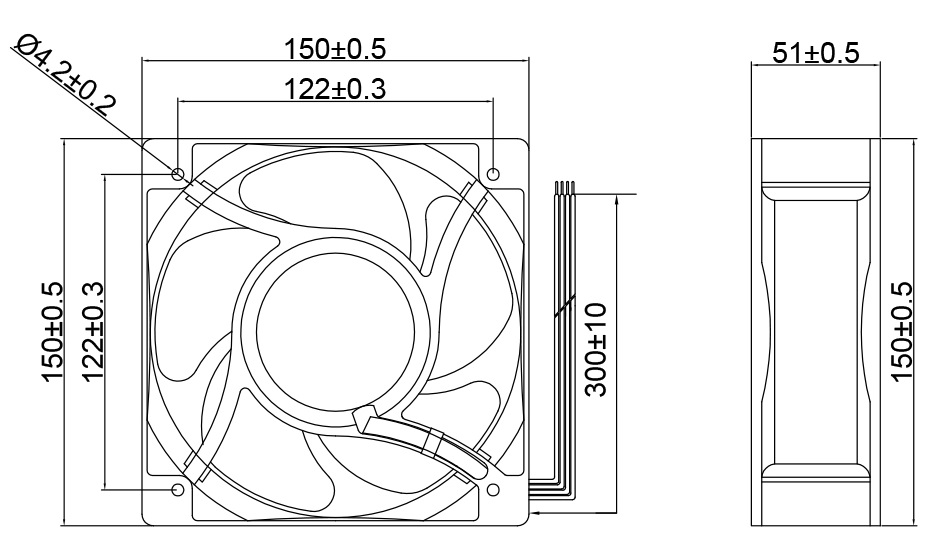

Dimension Drawing
P&Q Curve
