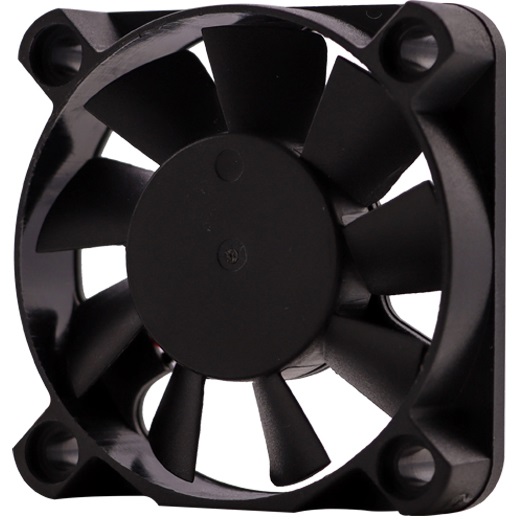

DC Fan
MFD5010C
: 50 x 50 x 10mm
Airflow
8.1~13.4 CFM
Speed
4000~6500 RPM
Noise
26.8~36.8 dB(A)
Product Specifications
| Size | : 50 x 50 x 10mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD5010CD05-HB | 5 | 3.5 ~ 5.5 | 0.168 | 0.84 | 6000 | 12.1 | 3.34 | 34.2 |
| MFD5010CD05-HHB | 5 | 3.5 ~ 5.5 | 0.19 | 0.96 | 6500 | 13.4 | 3.85 | 36.8 |
| MFD5010CD05-HHS | 5 | 3.5 ~ 5.5 | 0.19 | 0.96 | 6500 | 13.4 | 3.85 | 36.8 |
| MFD5010CD05-HS | 5 | 3.5 ~ 5.5 | 0.168 | 0.84 | 6000 | 12.1 | 3.34 | 34.2 |
| MFD5010CD05-LB | 5 | 3.5 ~ 5.5 | 0.072 | 0.36 | 4000 | 8.14 | 1.65 | 36.8 |
| MFD5010CD05-LHB | 5 | 3.5 ~ 5.5 | 0.144 | 0.72 | 5500 | 10.8 | 2.84 | 33.5 |
| MFD5010CD05-LHS | 5 | 3.5 ~ 5.5 | 0.144 | 0.72 | 5500 | 10.8 | 2.84 | 33.5 |
| MFD5010CD05-LMB | 5 | 3.5 ~ 5.5 | 0.096 | 0.48 | 4500 | 9.09 | 2.05 | 29.7 |
| MFD5010CD05-LMS | 5 | 3.5 ~ 5.5 | 0.096 | 0.48 | 4500 | 9.09 | 2.05 | 29.7 |
| MFD5010CD05-LS | 5 | 3.5 ~ 5.5 | 0.072 | 0.36 | 4000 | 8.14 | 1.65 | 36.8 |
| MFD5010CD05-MB | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 5000 | 10.5 | 2.58 | 31 |
| MFD5010CD05-MS | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 5000 | 10.5 | 2.58 | 31 |
| MFD5010CD1-HB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6000 | 12.1 | 3.34 | 34.2 |
| MFD5010CD1-HHB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 6500 | 13.4 | 3.85 | 36.8 |
| MFD5010CD1-HHS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 6500 | 13.4 | 3.85 | 36.8 |
| MFD5010CD1-HS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 6000 | 12.1 | 3.34 | 34.2 |
| MFD5010CD1-LB | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4000 | 8.14 | 1.65 | 26.8 |
| MFD5010CD1-LHB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5500 | 10.8 | 2.84 | 33.5 |
| MFD5010CD1-LHS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5500 | 10.8 | 2.84 | 33.5 |
| MFD5010CD1-LMB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 4500 | 9.09 | 2.05 | 29.7 |
| MFD5010CD1-LMS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 4500 | 9.09 | 2.05 | 29.7 |
| MFD5010CD1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4000 | 8.14 | 1.65 | 26.8 |
| MFD5010CD1-MB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5000 | 10.5 | 2.58 | 31 |
| MFD5010CD1-MS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 5000 | 10.5 | 2.58 | 31 |

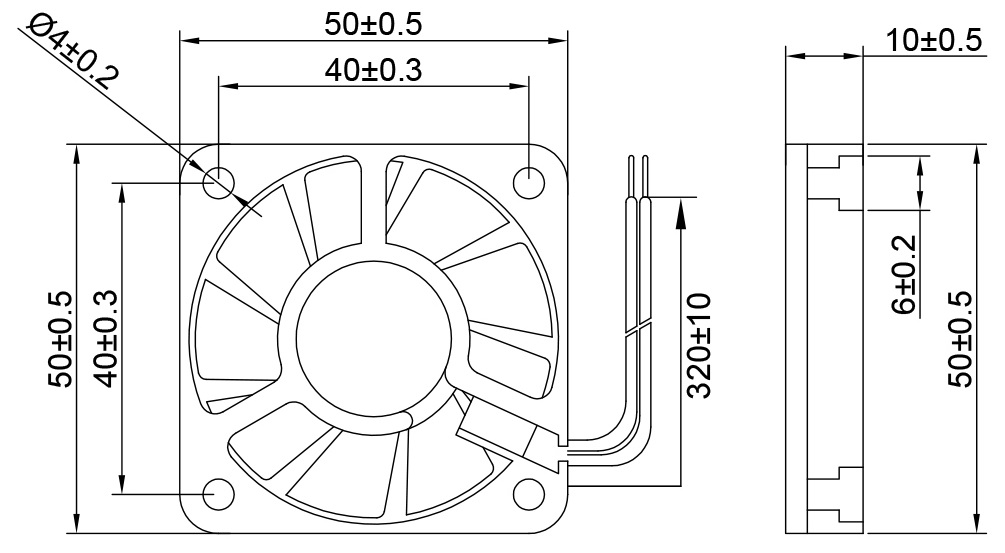

Dimension Drawing

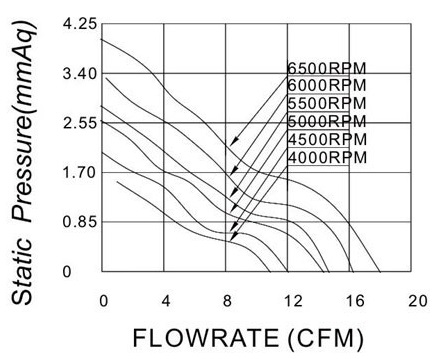

P&Q Curve
