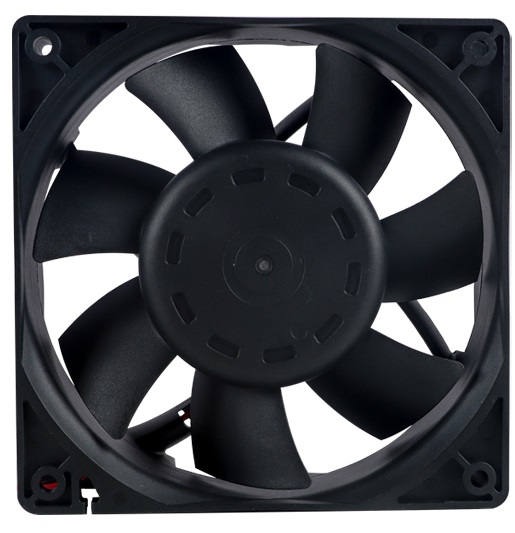

DC Fan
MFD12038H
: 120 x 120 x 38mm
Airflow
190.5~241.0 CFM
Speed
4100~5200 RPM
Noise
55.5~62 dB(A)
Product Specifications
| Size | : 120 x 120 x 38mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12038HD1-HB | 12 | 7 ~ 13.8 | 1.25 | 15 | 4100 | 190.48 | 17.64 | 55.5 |
| MFD12038HD1-HHB | 12 | 7 ~ 13.8 | 1.8 | 21.6 | 4600 | 212.57 | 21.43 | 58.5 |
| MFD12038HD1-HVB | 12 | 7 ~ 13.8 | 2.45 | 29.4 | 5200 | 240.96 | 27.48 | 62 |
| MFD12038HD2-HB | 24 | 18 ~ 26.5 | 0.62 | 14.88 | 4100 | 190.48 | 17.64 | 55.5 |
| MFD12038HD2-HHB | 24 | 18 ~ 26.5 | 0.85 | 20.4 | 4600 | 212.57 | 21.43 | 58.5 |
| MFD12038HD2-HVB | 24 | 18 ~ 26.5 | 1.3 | 29.4 | 5200 | 240.96 | 27.48 | 62 |
| MFD12038HD4-HB | 48 | 36 ~ 54 | 0.31 | 14.88 | 4100 | 190.48 | 17.64 | 55.5 |
| MFD12038HD4-HHB | 48 | 36 ~ 54 | 0.85 | 20.4 | 4600 | 212.57 | 21.43 | 58.5 |
| MFD12038HD4-HVB | 48 | 36 ~ 54 | 0.6 | 28.8 | 5200 | 240.96 | 27.48 | 62 |
Dimension Drawing

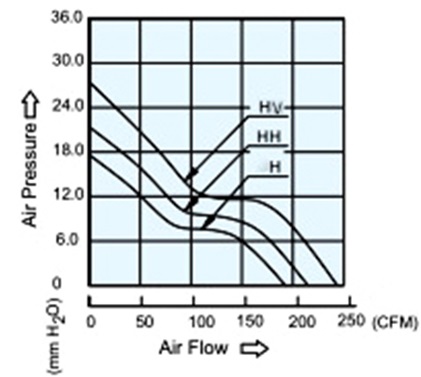

P&Q Curve
