DC Fan
MFD14038

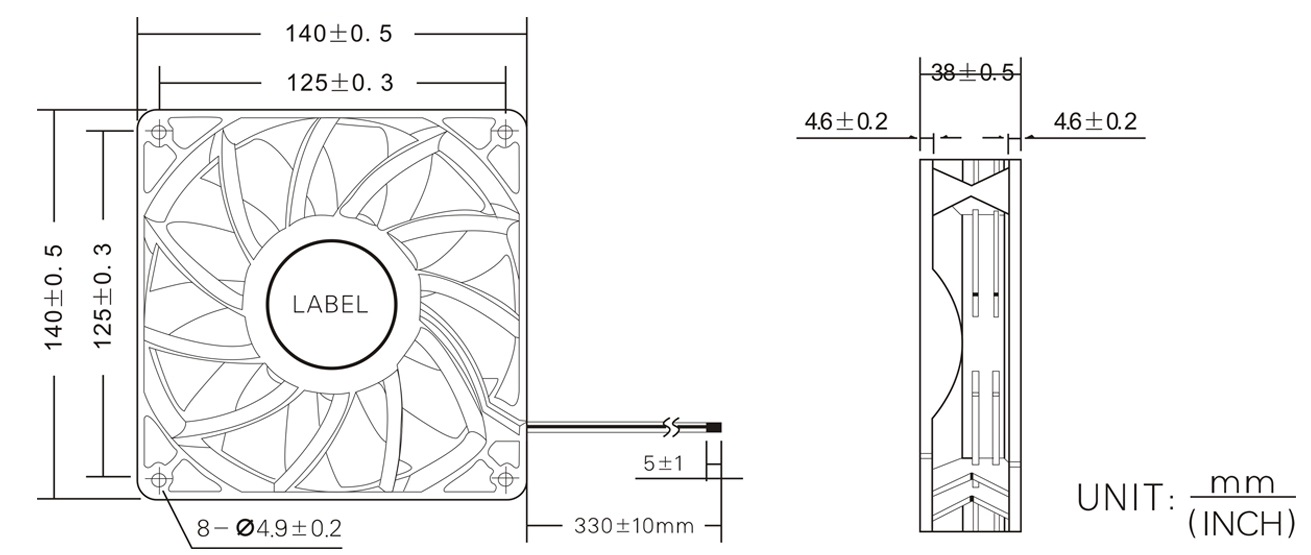

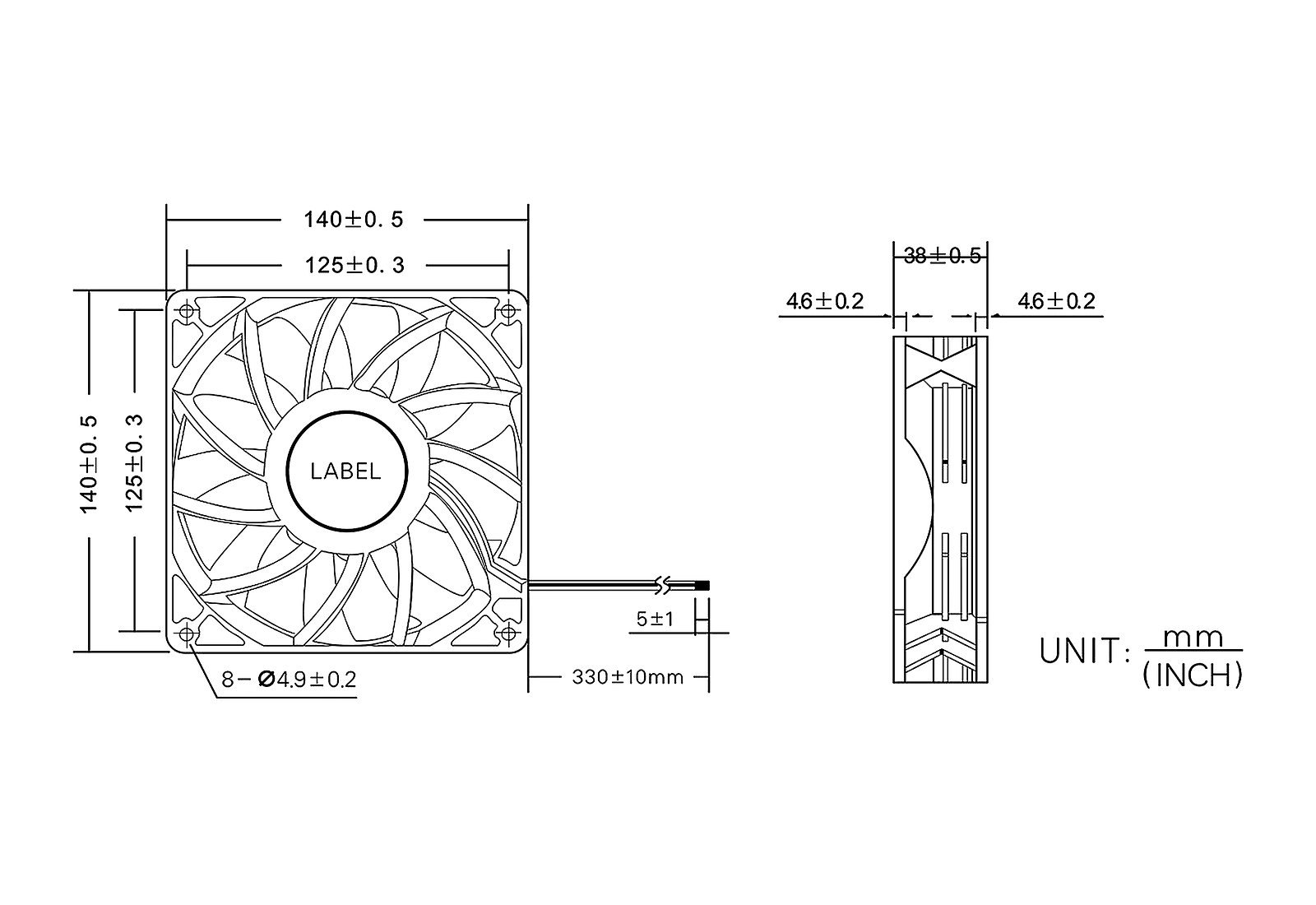

140 x 140 x 38mm
Airflow
133.3~307.2 CFM
Speed
1800~6500 RPM
Noise
43.8~68 dB(A)
Product Specifications
| Size | 140 x 140 x 38 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD14038D1-HB | 12 | 0.85 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D1-HHB | 12 | 1.4 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D1-HVB | 12 | 3.25 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D1-LB | 12 | 0.39 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D1-MB | 12 | 0.51 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D1-VHB | 12 | 2.15 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD1-HB | 12 | 2.7 | 32 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD1-HHB | 12 | 3 | 36 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD1-LB | 12 | 2.3 | 27 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD1-MB | 12 | 2.5 | 30 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD1-VHB | 12 | 3.5 | 42 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
| MFD14038D2-HB | 24 | 0.42 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D2-HHB | 24 | 0.7 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D2-HVB | 24 | 1.63 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D2-LB | 24 | 0.2 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D2-MB | 24 | 0.25 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D2-VHB | 24 | 1.07 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD2-HB | 24 | 1.42 | 34 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD2-HHB | 24 | 1.58 | 38 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD2-LB | 24 | 1.17 | 28 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD2-MB | 24 | 1.33 | 32 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD2-VHB | 24 | 1.83 | 44 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
| MFD14038D4-HB | 48 | 0.21 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D4-HHB | 48 | 0.35 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D4-HVB | 48 | 0.81 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D4-LB | 48 | 0.1 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D4-MB | 48 | 0.12 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D4-VHB | 48 | 0.53 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD4-HB | 48 | 0.79 | 38 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD4-HHB | 48 | 0.92 | 44 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD4-LB | 48 | 0.63 | 30 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD4-MB | 48 | 0.71 | 34 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD4-VHB | 48 | 1.04 | 50 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD14038D1-HB | 12 | 0.85 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D1-HHB | 12 | 1.4 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D1-HVB | 12 | 3.25 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D1-LB | 12 | 0.39 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D1-MB | 12 | 0.51 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D1-VHB | 12 | 2.15 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD1-HB | 12 | 2.7 | 32 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD1-HHB | 12 | 3 | 36 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD1-LB | 12 | 2.3 | 27 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD1-MB | 12 | 2.5 | 30 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD1-VHB | 12 | 3.5 | 42 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
| MFD14038D2-HB | 24 | 0.42 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D2-HHB | 24 | 0.7 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D2-HVB | 24 | 1.63 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D2-LB | 24 | 0.2 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D2-MB | 24 | 0.25 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D2-VHB | 24 | 1.07 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD2-HB | 24 | 1.42 | 34 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD2-HHB | 24 | 1.58 | 38 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD2-LB | 24 | 1.17 | 28 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD2-MB | 24 | 1.33 | 32 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD2-VHB | 24 | 1.83 | 44 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
| MFD14038D4-HB | 48 | 0.21 | 10.2 | 2500 | 191.13 | 8.74 | 53.5 | Ball |
| MFD14038D4-HHB | 48 | 0.35 | 16.8 | 3000 | 230.73 | 12.4 | 66 | Ball |
| MFD14038D4-HVB | 48 | 0.81 | 39 | 4000 | 307.25 | 21.5 | 62.1 | Ball |
| MFD14038D4-LB | 48 | 0.1 | 4.68 | 1800 | 133.3 | 4.24 | 43.8 | Ball |
| MFD14038D4-MB | 48 | 0.12 | 6.12 | 2000 | 152.11 | 5.66 | 47.5 | Ball |
| MFD14038D4-VHB | 48 | 0.53 | 25.8 | 3500 | 266.37 | 16.35 | 68 | Ball |
| MFD14038BD4-HB | 48 | 0.79 | 38 | 5500 | 209.4 | 26.72 | 62 | Ball |
| MFD14038BD4-HHB | 48 | 0.92 | 44 | 6000 | 229.45 | 31.64 | 64 | Ball |
| MFD14038BD4-LB | 48 | 0.63 | 30 | 4500 | 167.7 | 17.92 | 55.8 | Ball |
| MFD14038BD4-MB | 48 | 0.71 | 34 | 5000 | 189.71 | 22.4 | 58.2 | Ball |
| MFD14038BD4-VHB | 48 | 1.04 | 50 | 6500 | 254.89 | 37.93 | 67.8 | Ball |
