DC Fan
MFD8025
: 80 x 80 x 25 mm
Airflow
23.1~60.5 CFM
Speed
2000~5000 RPM
Noise
22~46.3 dB(A)
Product Specifications
| Size | 80 x 80 x 25 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD8025D1-HB | 12 | 0.17 | 2 | 3500 | 44.3 | 5.3 | 36.9 | Ball |
| MFD8025D1-HHB | 12 | 0.18 | 2.16 | 4000 | 50.8 | 7 | 41.8 | Ball |
| MFD8025D1-HHS | 12 | 0.18 | 2.16 | 4000 | 50.8 | 7 | 41.8 | Sleeve |
| MFD8025D1-HS | 12 | 0.17 | 2 | 3500 | 44.3 | 5.3 | 36.9 | Sleeve |
| MFD8025D1-HVB | 12 | 0.44 | 5.28 | 5000 | 60.5 | 8.9 | 46.3 | Ball |
| MFD8025D1-LB | 12 | 0.08 | 0.96 | 2500 | 31.4 | 2.8 | 29.1 | Ball |
| MFD8025D1-LLB | 12 | 0.06 | 0.72 | 2000 | 24.4 | 2 | 25.8 | Ball |
| MFD8025D1-LLS | 12 | 0.06 | 0.72 | 2000 | 24.4 | 2 | 25.8 | Sleeve |
| MFD8025D1-LS | 12 | 0.08 | 0.96 | 2500 | 31.4 | 2.8 | 29.1 | Sleeve |
| MFD8025D1-MB | 12 | 0.16 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Ball |
| MFD8025D1-MS | 12 | 0.16 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Sleeve |
| MFD8025D1-VHB | 12 | 0.3 | 3.6 | 4500 | 57.6 | 8.5 | 45.4 | Ball |
| MFD8025BD1-HB | 12 | 0.25 | 3 | 3500 | 40.4 | 4.1 | 40.3 | Ball |
| MFD8025BD1-HHB | 12 | 0.3 | 3.6 | 4000 | 44.9 | 5.2 | 42.4 | Ball |
| MFD8025BD1-HHS | 12 | 0.3 | 3.6 | 4000 | 44.9 | 5.2 | 42.4 | Sleeve |
| MFD8025BD1-HS | 12 | 0.25 | 3 | 3500 | 40.4 | 4.1 | 40.3 | Sleeve |
| MFD8025BD1-LB | 12 | 0.12 | 1.44 | 2500 | 29.6 | 2.1 | 29.6 | Ball |
| MFD8025BD1-LLB | 12 | 0.08 | 0.96 | 2000 | 23.1 | 1.4 | 24.9 | Ball |
| MFD8025BD1-LLS | 12 | 0.08 | 0.96 | 2000 | 23.1 | 1.4 | 24.9 | Sleeve |
| MFD8025BD1-LS | 12 | 0.12 | 1.44 | 2500 | 29.6 | 2.1 | 29.6 | Sleeve |
| MFD8025BD1-MB | 12 | 0.15 | 1.8 | 3000 | 34.9 | 3.1 | 35.1 | Ball |
| MFD8025BD1-MS | 12 | 0.15 | 1.8 | 3000 | 34.9 | 3.1 | 35.1 | Sleeve |
| MFD8025BD1-VHB | 12 | 0.5 | 6 | 4500 | 50.2 | 6.2 | 45.4 | Ball |
| MFD8025CD1-HB | 12 | 0.25 | 3 | 3250 | 36 | 4.1 | 40.3 | Ball |
| MFD8025CD1-HHB | 12 | 0.3 | 3.6 | 3600 | 40.3 | 5 | 42.4 | Ball |
| MFD8025CD1-HHS | 12 | 0.3 | 3.6 | 3600 | 40.3 | 5 | 42.4 | Sleeve |
| MFD8025CD1-HS | 12 | 0.25 | 3 | 3250 | 36 | 4.1 | 40.3 | Sleeve |
| MFD8025CD1-LB | 12 | 0.12 | 1.44 | 2700 | 29.8 | 3 | 29.6 | Ball |
| MFD8025CD1-LLB | 12 | 0.08 | 0.96 | 2400 | 27.3 | 2.5 | 24.9 | Ball |
| MFD8025CD1-LLS | 12 | 0.08 | 0.96 | 2400 | 27.3 | 2.5 | 24.9 | Sleeve |
| MFD8025CD1-LS | 12 | 0.12 | 1.44 | 2700 | 29.8 | 3 | 29.6 | Sleeve |
| MFD8025CD1-MB | 12 | 0.15 | 1.8 | 3000 | 33.3 | 3.7 | 35.1 | Ball |
| MFD8025CD1-MS | 12 | 0.15 | 1.8 | 3000 | 33.3 | 3.7 | 35.1 | Sleeve |
| MFD8025CD1-VHB | 12 | 0.5 | 6 | 4000 | 44.4 | 6.1 | 45.4 | Ball |
| MFD8025CD1-VHS | 12 | 0.5 | 6 | 4000 | 44.4 | 6.1 | 45.4 | Sleeve |
| MFD8025DD1-HB | 12 | 0.13 | 1.56 | 3000 | 35.3 | 3.29 | 31 | Ball |
| MFD8025DD1-HHB | 12 | 0.17 | 2.04 | 3250 | 38.6 | 3.79 | 34 | Ball |
| MFD8025DD1-HHS | 12 | 0.17 | 2.04 | 3250 | 38.6 | 3.79 | 34 | Sleeve |
| MFD8025DD1-HS | 12 | 0.13 | 1.56 | 3000 | 35.3 | 3.29 | 31 | Sleeve |
| MFD8025DD1-LB | 12 | 0.09 | 1.08 | 2400 | 28.2 | 2.2 | 25 | Ball |
| MFD8025DD1-LLB | 12 | 0.08 | 0.96 | 2150 | 24.7 | 1.7 | 22 | Ball |
| MFD8025DD1-LLS | 12 | 0.08 | 0.96 | 2150 | 24.7 | 1.7 | 22 | Sleeve |
| MFD8025DD1-LS | 12 | 0.09 | 1.08 | 2400 | 28.2 | 2.2 | 25 | Sleeve |
| MFD8025DD1-MB | 12 | 0.11 | 1.32 | 2700 | 31.7 | 2.7 | 28 | Ball |
| MFD8025DD1-MS | 12 | 0.11 | 1.32 | 2700 | 31.7 | 2.7 | 28 | Sleeve |
| MFD8025DD1-VHB | 12 | 0.22 | 2.64 | 3400 | 40.2 | 4.1 | 35 | Ball |
| MFD8025DD1-VHS | 12 | 0.22 | 2.64 | 3400 | 40.2 | 4.1 | 35 | Sleeve |
| MFD8025D2-HHB | 24 | 0.11 | 2.64 | 4000 | 50.8 | 7 | 41.8 | Ball |
| MFD8025D2-HHS | 24 | 0.11 | 2.64 | 4000 | 50.8 | 7 | 41.8 | Sleeve |
| MFD8025D2-HVB | 24 | 0.22 | 5.28 | 5000 | 60.5 | 8.9 | 46.3 | Ball |
| MFD8025D2-MB | 24 | 0.08 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Ball |
| MFD8025D2-MS | 24 | 0.08 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Sleeve |
| MFD8025BD2-HHB | 24 | 0.16 | 3.84 | 4000 | 44.9 | 5.2 | 42.4 | Ball |
| MFD8025BD2-HHS | 24 | 0.16 | 3.84 | 4000 | 44.9 | 5.2 | 42.4 | Sleeve |
| MFD8025BD2-MB | 24 | 0.08 | 1.92 | 3000 | 34.9 | 3.1 | 35.1 | Ball |
| MFD8025BD2-MS | 24 | 0.08 | 1.92 | 3000 | 34.9 | 3.1 | 35.1 | Sleeve |
| MFD8025BD2-VHB | 24 | 0.25 | 6 | 4500 | 50.2 | 6.2 | 45.4 | Ball |
| MFD8025CD2-HHB | 24 | 0.16 | 3.84 | 3600 | 40.3 | 5 | 42.4 | Ball |
| MFD8025CD2-HHS | 24 | 0.16 | 3.84 | 3600 | 40.3 | 5 | 42.4 | Sleeve |
| MFD8025CD2-MB | 24 | 0.08 | 1.92 | 3000 | 33.3 | 3.7 | 35.1 | Ball |
| MFD8025CD2-MS | 24 | 0.08 | 1.92 | 3000 | 33.3 | 3.7 | 35.1 | Sleeve |
| MFD8025CD2-VHB | 24 | 0.27 | 6.5 | 4000 | 44.4 | 6.1 | 45.4 | Ball |
| MFD8025CD2-VHS | 24 | 0.27 | 6.5 | 4000 | 44.4 | 6.1 | 45.4 | Sleeve |
| MFD8025DD2-HB | 24 | 0.07 | 1.68 | 3000 | 35.3 | 3.29 | 31 | Ball |
| MFD8025DD2-HHB | 24 | 0.1 | 2.4 | 3250 | 38.6 | 3.79 | 34 | Ball |
| MFD8025DD2-HHS | 24 | 0.1 | 2.4 | 3250 | 38.6 | 3.79 | 34 | Sleeve |
| MFD8025DD2-HS | 24 | 0.07 | 1.68 | 3000 | 35.3 | 3.29 | 31 | Sleeve |
| MFD8025DD2-LB | 24 | 0.05 | 1.2 | 2400 | 28.2 | 2.2 | 25 | Ball |
| MFD8025DD2-LLB | 24 | 0.04 | 1.08 | 2150 | 24.7 | 1.7 | 22 | Ball |
| MFD8025DD2-LLS | 24 | 0.04 | 1.08 | 2150 | 24.7 | 1.7 | 22 | Sleeve |
| MFD8025DD2-LS | 24 | 0.05 | 1.2 | 2400 | 28.2 | 2.2 | 25 | Sleeve |
| MFD8025DD2-MB | 24 | 0.06 | 1.44 | 2700 | 31.7 | 2.7 | 28 | Ball |
| MFD8025DD2-MS | 24 | 0.06 | 1.44 | 2700 | 31.7 | 2.7 | 28 | Sleeve |
| MFD8025DD2-VHB | 24 | 0.12 | 2.88 | 3400 | 40.2 | 4.1 | 35 | Ball |
| MFD8025DD2-VHS | 24 | 0.12 | 2.88 | 3400 | 40.2 | 4.1 | 35 | Sleeve |
| MFD8025D4-HHB | 48 | 0.08 | 3.84 | 4000 | 50.8 | 7 | 41.8 | Ball |
| MFD8025D4-HHS | 48 | 0.08 | 3.84 | 4000 | 50.8 | 7 | 41.8 | Sleeve |
| MFD8025D4-MB | 48 | 0.04 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Ball |
| MFD8025D4-MS | 48 | 0.04 | 1.92 | 3000 | 37.9 | 4 | 34.2 | Sleeve |
| MFD8025D4-HVB | 48 | 0.09 | 4.56 | 5000 | 60.5 | 8.9 | 46.3 | Ball |
| MFD8025BD4-HHB | 48 | 0.08 | 3.84 | 4000 | 44.9 | 5.2 | 42.4 | Ball |
| MFD8025BD4-HHS | 48 | 0.08 | 3.84 | 4000 | 44.9 | 5.2 | 42.4 | Sleeve |
| MFD8025BD4-MB | 48 | 0.04 | 1.92 | 3000 | 34.9 | 3.1 | 35.1 | Ball |
| MFD8025BD4-MS | 48 | 0.04 | 1.92 | 3000 | 34.9 | 3.1 | 35.1 | Sleeve |
| MFD8025BD4-VHB | 48 | 0.12 | 5.76 | 4500 | 50.2 | 6.2 | 45.4 | Ball |
| MFD8025CD4-HHB | 48 | 0.08 | 3.84 | 3600 | 40.3 | 5 | 42.4 | Ball |
| MFD8025CD4-HHS | 48 | 0.08 | 3.84 | 3600 | 40.3 | 5 | 42.4 | Sleeve |
| MFD8025CD4-MB | 48 | 0.04 | 1.92 | 3000 | 33.3 | 3.7 | 35.1 | Ball |
| MFD8025CD4-MS | 48 | 0.04 | 1.92 | 3000 | 33.3 | 3.7 | 35.1 | Sleeve |
| MFD8025CD4-VHB | 48 | 0.12 | 6.75 | 4000 | 44.4 | 6.1 | 45.4 | Ball |
| MFD8025CD4-VHS | 48 | 0.12 | 6.75 | 4000 | 44.4 | 6.1 | 45.4 | Sleeve |

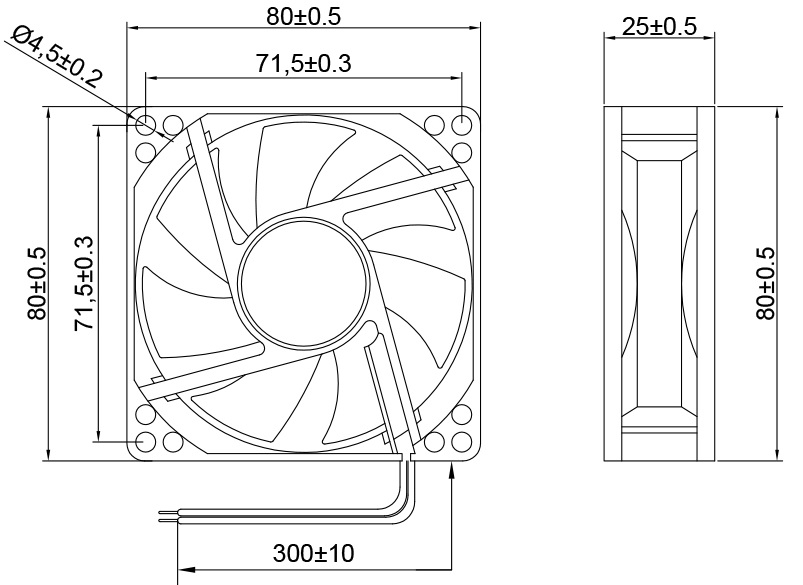

Dimension Drawing

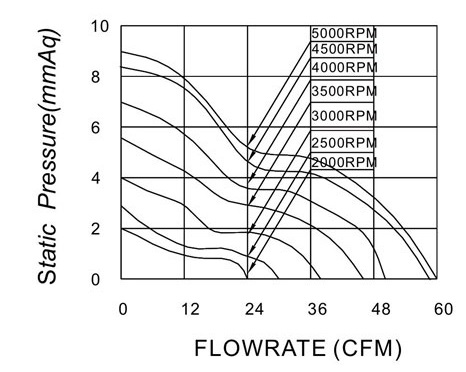

P&Q Curve
