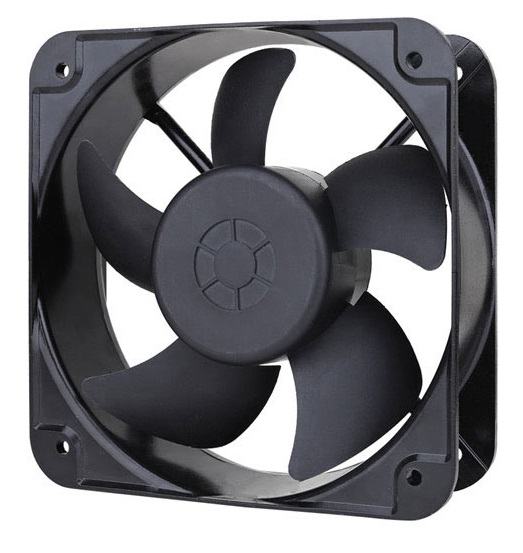

DC Fan
MFD20060
: 200 x 200 x 60 mm
Airflow
410.9~719.1 CFM
Speed
2000~3500 RPM
Noise
56.3~70.5 dB(A)
Product Specifications
| Size | 200 x 200 x 60 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD20060D1-HB | 12 | 2.8 | 33.6 | 2500 | 513.66 | 9.24 | 60.2 | Ball |
| MFD20060D1-HHB | 12 | 4 | 48 | 3000 | 616.4 | 11.08 | 65.8 | Ball |
| MFD20060D1-MB | 12 | 1.25 | 15 | 2000 | 410.93 | 7.39 | 56.3 | Ball |
| MFD20060D1-VHB | 12 | 5.3 | 64 | 3500 | 719.14 | 12.93 | 70.5 | Ball |
| MFD20060D2-HB | 24 | 1.42 | 34 | 2500 | 513.66 | 9.24 | 60.2 | Ball |
| MFD20060D2-HHB | 24 | 2 | 48 | 3000 | 616.4 | 11.08 | 65.8 | Ball |
| MFD20060D2-MB | 24 | 0.63 | 15.12 | 2000 | 410.93 | 7.39 | 56.3 | Ball |
| MFD20060D2-VHB | 24 | 2.75 | 66 | 3500 | 719.14 | 12.93 | 70.5 | Ball |
| MFD20060D4-HB | 48 | 0.66 | 31.68 | 2500 | 513.66 | 9.24 | 60.2 | Ball |
| MFD20060D4-HHB | 48 | 1 | 48 | 3000 | 616.4 | 11.08 | 65.8 | Ball |
| MFD20060D4-MB | 48 | 0.37 | 17.86 | 2000 | 410.93 | 7.39 | 56.3 | Ball |
| MFD20060D4-VHB | 48 | 1.38 | 66 | 3500 | 719.14 | 12.93 | 70.5 | Ball |
Dimension Drawing

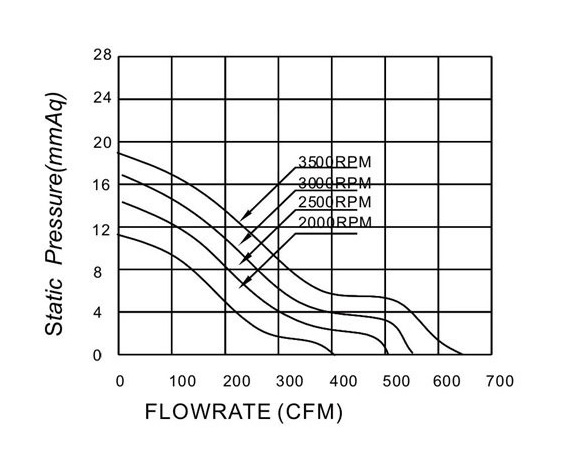

P&Q Curve
