DC Fan
MFD8038C
: 80 x 80 x 38 mm
Airflow
132 CFM
Speed
16100 RPM
Noise
73 dB(A)
Product Specifications
| Size | : 80 x 80 x 38 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD8038CD1-VHB | 12 | 7 ~ 13.8 | 3.4 | 40.8 | 16100 | 132 | 137.7 | 73 |
| MFD8038CD2-VHB | 24 | 18 ~ 26.5 | 1.7 | 40.8 | 16100 | 132 | 137.7 | 73 |
| MFD8038CD4-VHB | 48 | 36 ~ 54 | 0.85 | 40.8 | 16100 | 132 | 137.7 | 73 |

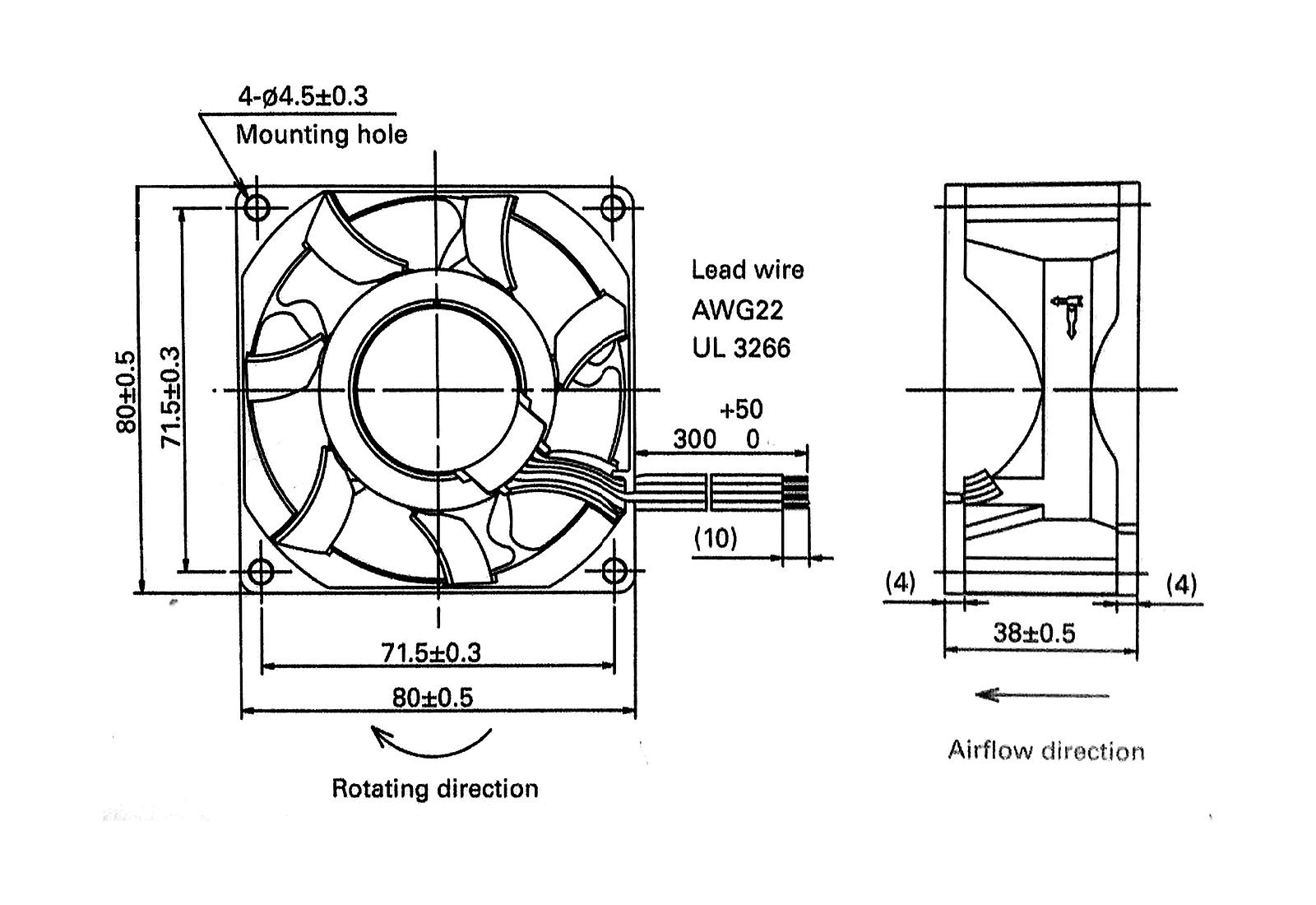

Dimension Drawing

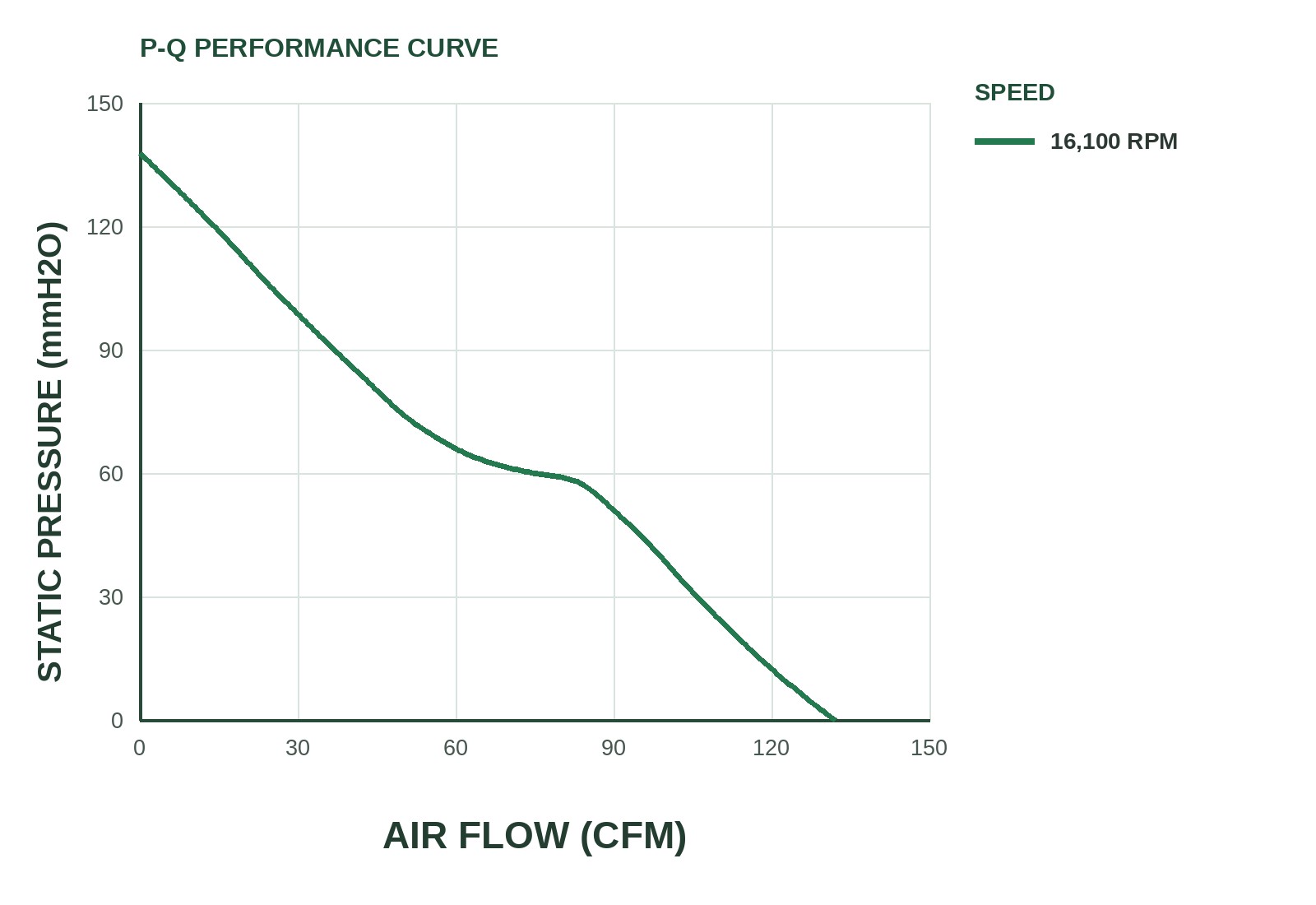

P&Q Curve
