DC Fan
MFD22580
225 x 225 x 80 mm
Airflow
533.5~806 CFM
Speed
2200~3300 RPM
Noise
50~61 dB(A)
Product Specifications
| Size | 225 x 225 x 80 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD22580D1-H | 12 | 7~13.2 | 8.0 | 96 | 3000 | 730.8 | 33.2 | 58 |
| MFD22580D2-HH | 24 | 18 ~ 26.5 | 5.0 | 120 | 2200 | 533.5 | 16.9 | 50 |
| MFD22580D2-M | 24 | 18 ~ 26.5 | 4.0 | 96 | 2700 | 656.5 | 25.4 | 55 |
| MFD22580D2-L | 24 | 18 ~ 26.5 | 3.0 | 72 | 3300 | 806 | 36.7 | 61 |
| MFD22580D4-HH | 48 | 36 ~ 54 | 2 | 96 | 2200 | 533.5 | 16.9 | 50 |
| MFD22580D4-M | 48 | 36 ~ 54 | 1.5 | 72 | 2700 | 656.5 | 25.4 | 55 |
| MFD22580D4-L | 48 | 36 ~ 54 | 1.2 | 57.599999999999994 | 3300 | 806 | 36.7 | 61 |

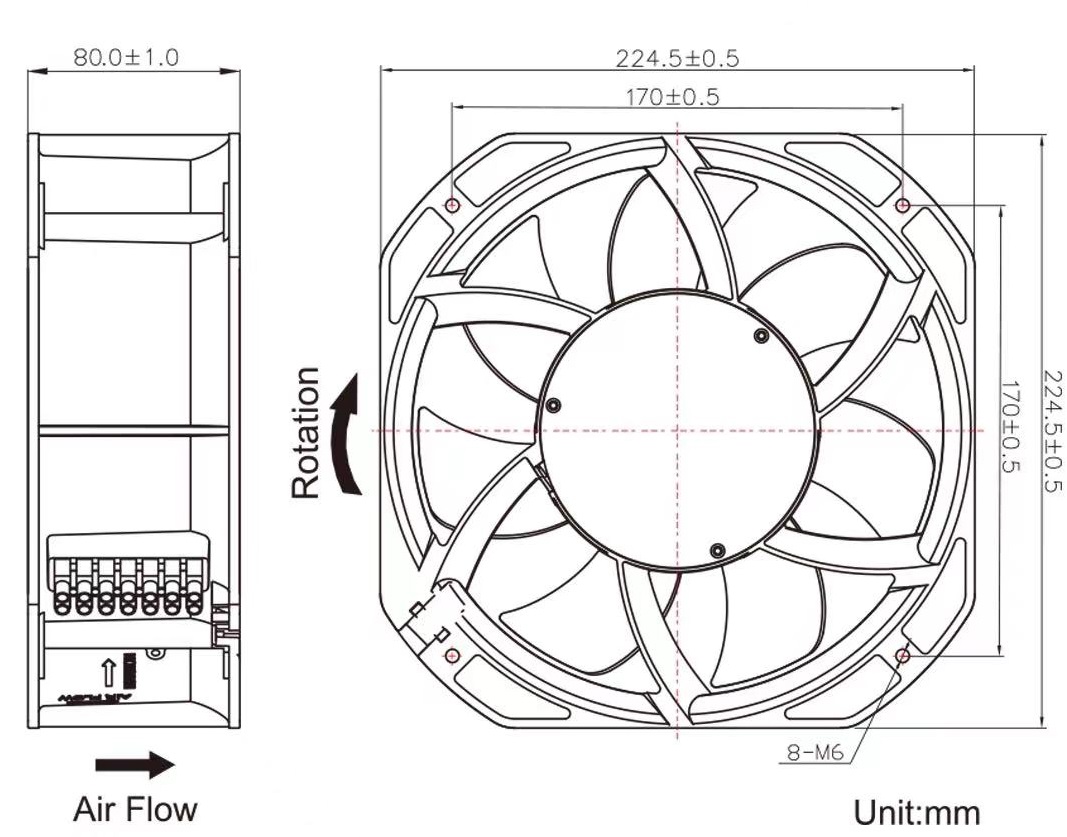

Dimension Drawing
P&Q Curve
