DC Fan
MFD6025
: 60 x 60 x 25mm
Airflow
15.7~39.5 CFM
Speed
3000~7500 RPM
Noise
27.2~49.5 dB(A)
Product Specifications
| Size | 60 x 60 x 25 mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD6025D1-HB | 12 | 0.2 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Ball |
| MFD6025D1-HS | 12 | 0.2 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Sleeve |
| MFD6025D1-LB | 12 | 0.06 | 0.72 | 3000 | 15.7 | 2.13 | 27.2 | Ball |
| MFD6025D1-LHB | 12 | 0.23 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Ball |
| MFD6025D1-LHS | 12 | 0.23 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Sleeve |
| MFD6025D1-LMB | 12 | 0.14 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 | Ball |
| MFD6025D1-LMS | 12 | 0.14 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 | Sleeve |
| MFD6025D1-LS | 12 | 0.06 | 0.72 | 3000 | 15.7 | 2.13 | 27.2 | Sleeve |
| MFD6025D1-MB | 12 | 0.17 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Ball |
| MFD6025D1-MS | 12 | 0.17 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Sleeve |
| MFD6025BD1-HHVB | 12 | 0.45 | 5.4 | 7000 | 37 | 14.82 | 46 | Ball |
| MFD6025BD1-HHVS | 12 | 0.45 | 5.4 | 7000 | 37 | 14.82 | 46 | Sleeve |
| MFD6025BD1-HVB | 12 | 0.38 | 4.56 | 6000 | 31.8 | 11.15 | 42.2 | Ball |
| MFD6025BD1-HVS | 12 | 0.38 | 4.56 | 6000 | 31.8 | 11.15 | 42.2 | Sleeve |
| MFD6025BD1-VHB | 12 | 0.4 | 4.8 | 6500 | 34.6 | 13.09 | 44.8 | Ball |
| MFD6025BD1-VHHB | 12 | 0.5 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Ball |
| MFD6025BD1-VHHS | 12 | 0.5 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Sleeve |
| MFD6025BD1-VHS | 12 | 0.4 | 4.8 | 6500 | 34.6 | 13.09 | 44.8 | Sleeve |
| MFD6025BD1-VMB | 12 | 0.35 | 4.2 | 5500 | 29.2 | 9.23 | 39.9 | Ball |
| MFD6025BD1-VMS | 12 | 0.35 | 4.2 | 5500 | 29.2 | 9.23 | 39.9 | Sleeve |
| MFD6025D2-HB | 24 | 0.1 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Ball |
| MFD6025D2-HS | 24 | 0.1 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Sleeve |
| MFD6025D2-LB | 24 | 0.05 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 | Ball |
| MFD6025D2-LHB | 24 | 0.11 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Ball |
| MFD6025D2-LHS | 24 | 0.11 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Sleeve |
| MFD6025D2-LMB | 24 | 0.07 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 | Ball |
| MFD6025D2-LMS | 24 | 0.07 | 1.68 | 3500 | 18.9 | 2.76 | 30.7 | Sleeve |
| MFD6025D2-LS | 24 | 0.05 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 | Sleeve |
| MFD6025D2-MB | 24 | 0.09 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Ball |
| MFD6025D2-MS | 24 | 0.09 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Sleeve |
| MFD6025BD2-HHVB | 24 | 0.2 | 4.8 | 7000 | 37 | 14.82 | 46 | Ball |
| MFD6025BD2-HHVS | 24 | 0.2 | 4.8 | 7000 | 37 | 14.82 | 46 | Sleeve |
| MFD6025BD2-HVB | 24 | 0.18 | 4.2 | 6000 | 31.8 | 11.15 | 42.2 | Ball |
| MFD6025BD2-HVS | 24 | 0.18 | 4.2 | 6000 | 31.8 | 11.15 | 42.2 | Sleeve |
| MFD6025BD2-VHB | 24 | 0.19 | 4.5 | 6500 | 34.6 | 13.09 | 44.8 | Ball |
| MFD6025BD2-VHHB | 24 | 0.25 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Ball |
| MFD6025BD2-VHHS | 24 | 0.25 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Sleeve |
| MFD6025BD2-VHS | 24 | 0.19 | 4.5 | 6500 | 34.6 | 13.09 | 44.8 | Sleeve |
| MFD6025BD2-VMB | 24 | 0.16 | 3.9 | 5500 | 29.2 | 9.23 | 39.9 | Ball |
| MFD6025BD2-VMS | 24 | 0.16 | 3.9 | 5500 | 29.2 | 9.23 | 39.9 | Sleeve |
| MFD6025D4-HB | 48 | 0.05 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Ball |
| MFD6025D4-HS | 48 | 0.05 | 2.4 | 4500 | 24.3 | 4.63 | 37.7 | Sleeve |
| MFD6025D4-LB | 48 | 0.03 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 | Ball |
| MFD6025D4-LHB | 48 | 0.06 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Ball |
| MFD6025D4-LHS | 48 | 0.06 | 2.76 | 5000 | 26.9 | 5.56 | 40.2 | Sleeve |
| MFD6025D4-LMB | 48 | 0.04 | 1.68 | 3500 | 18.9 | 2.75 | 30.7 | Ball |
| MFD6025D4-LMS | 48 | 0.04 | 1.68 | 3500 | 18.9 | 2.75 | 30.7 | Sleeve |
| MFD6025D4-LS | 48 | 0.03 | 1.2 | 3000 | 15.7 | 2.13 | 27.2 | Sleeve |
| MFD6025D4-MB | 48 | 0.04 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Ball |
| MFD6025D4-MS | 48 | 0.04 | 2.04 | 4000 | 21.5 | 3.64 | 34.3 | Sleeve |
| MFD6025BD4-HHVB | 48 | 0.11 | 5.4 | 7000 | 37 | 14.82 | 46 | Ball |
| MFD6025BD4-HHVS | 48 | 0.11 | 5.4 | 7000 | 37 | 14.82 | 46 | Sleeve |
| MFD6025BD4-HVB | 48 | 0.1 | 4.56 | 6000 | 31.8 | 11.15 | 42.2 | Ball |
| MFD6025BD4-HVS | 48 | 0.1 | 4.56 | 6000 | 31.8 | 11.15 | 42.2 | Sleeve |
| MFD6025BD4-VHB | 48 | 0.1 | 4.8 | 6500 | 34.6 | 13.09 | 44.8 | Ball |
| MFD6025BD4-VHHB | 48 | 0.12 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Ball |
| MFD6025BD4-VHHS | 48 | 0.12 | 6 | 7500 | 39.5 | 16.83 | 49.5 | Sleeve |
| MFD6025BD4-VHS | 48 | 0.1 | 4.8 | 6500 | 34.6 | 13.09 | 44.8 | Sleeve |
| MFD6025BD4-VMB | 48 | 0.09 | 4.2 | 5500 | 29.2 | 9.23 | 39.9 | Ball |
| MFD6025BD4-VMS | 48 | 0.09 | 4.2 | 5500 | 29.2 | 9.23 | 39.9 | Sleeve |

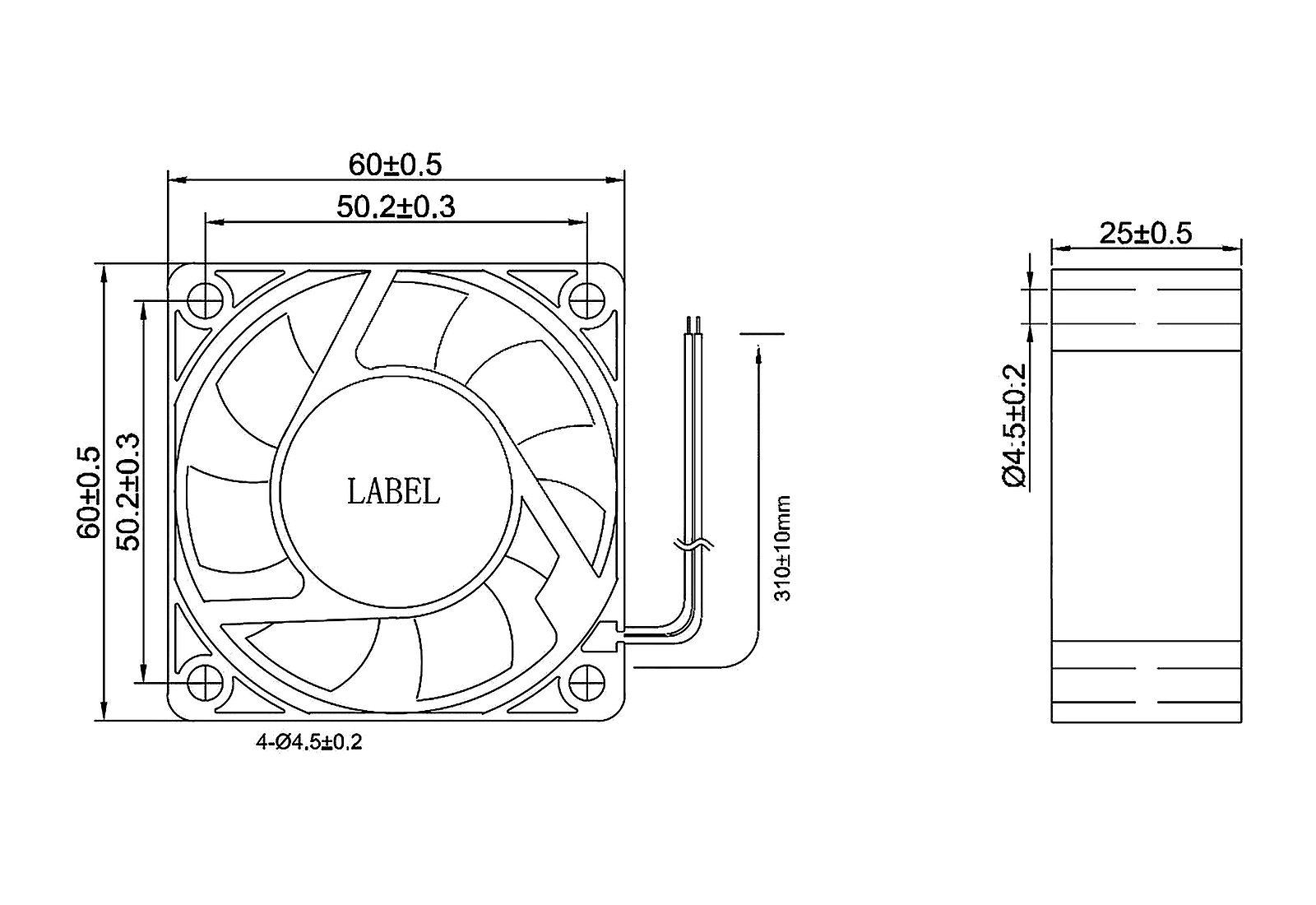

Dimension Drawing

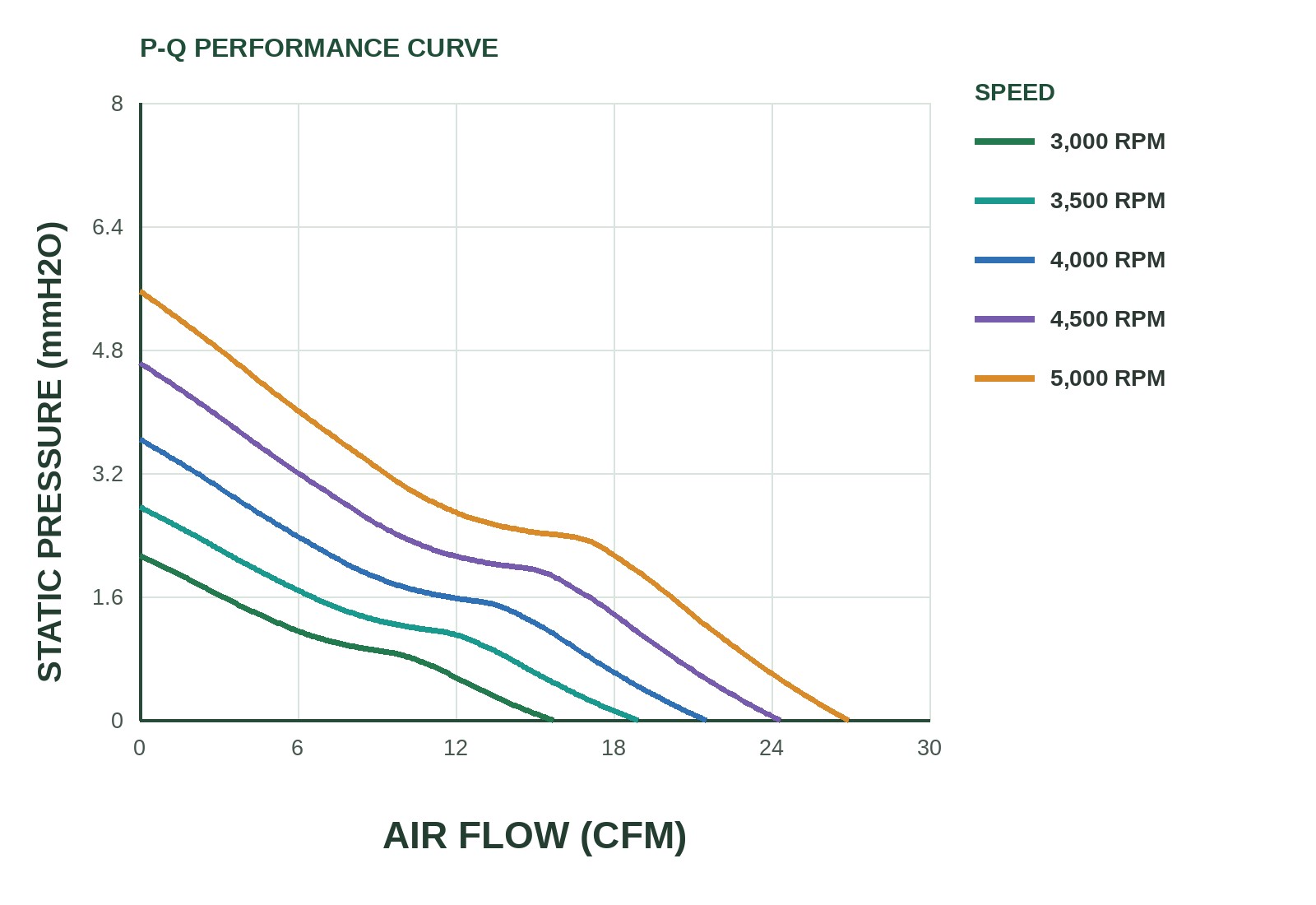

P&Q Curve
