DC Fan
MFD8010
: 80 x 80 x 10 mm
Airflow
13.9~25.6 CFM
Speed
2000~3500 RPM
Noise
22.9~34.9 dB(A)
Product Specifications
| Size | : 80 x 80 x 10 mm |
| Voltage | 5V / 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD8010D05-VLB | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 2000 | 13.9 | 0.89 | 22.9 |
| MFD8010D05-VLS | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 2000 | 13.9 | 0.89 | 22.9 |
| MFD8010D1-HB | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 3500 | 25.6 | 2.44 | 34.9 |
| MFD8010D1-HS | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 3500 | 25.6 | 2.44 | 34.9 |
| MFD8010D1-LB | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 2500 | 17.8 | 1.2 | 26.5 |
| MFD8010D1-LS | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 2500 | 17.8 | 1.2 | 26.5 |
| MFD8010D1-MB | 12 | 7 ~ 13.8 | 0.15 | 1.8 | 3000 | 21.8 | 1.71 | 30.7 |
| MFD8010D1-MS | 12 | 7 ~ 13.8 | 0.15 | 1.8 | 3000 | 21.8 | 1.71 | 30.7 |
| MFD8010D1-VLB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 2000 | 13.9 | 0.89 | 22.9 |
| MFD8010D1-VLS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 2000 | 13.9 | 0.89 | 22.9 |
| MFD8010D2-HB | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 3500 | 25.6 | 2.44 | 34.9 |
| MFD8010D2-HS | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 3500 | 25.6 | 2.44 | 34.9 |
| MFD8010D2-LB | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 2500 | 17.8 | 1.2 | 26.5 |
| MFD8010D2-LS | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 2500 | 17.8 | 1.2 | 26.5 |
| MFD8010D2-MB | 24 | 18 ~ 26.5 | 0.07 | 1.68 | 3000 | 21.8 | 1.71 | 30.7 |
| MFD8010D2-MS | 24 | 18 ~ 26.5 | 0.07 | 1.68 | 3000 | 21.8 | 1.71 | 30.7 |
| MFD8010D2-VLB | 24 | 18 ~ 26.5 | 0.03 | 0.72 | 2000 | 13.9 | 0.89 | 22.9 |
| MFD8010D2-VLS | 24 | 18 ~ 26.5 | 0.03 | 0.72 | 2000 | 13.9 | 0.89 | 22.9 |

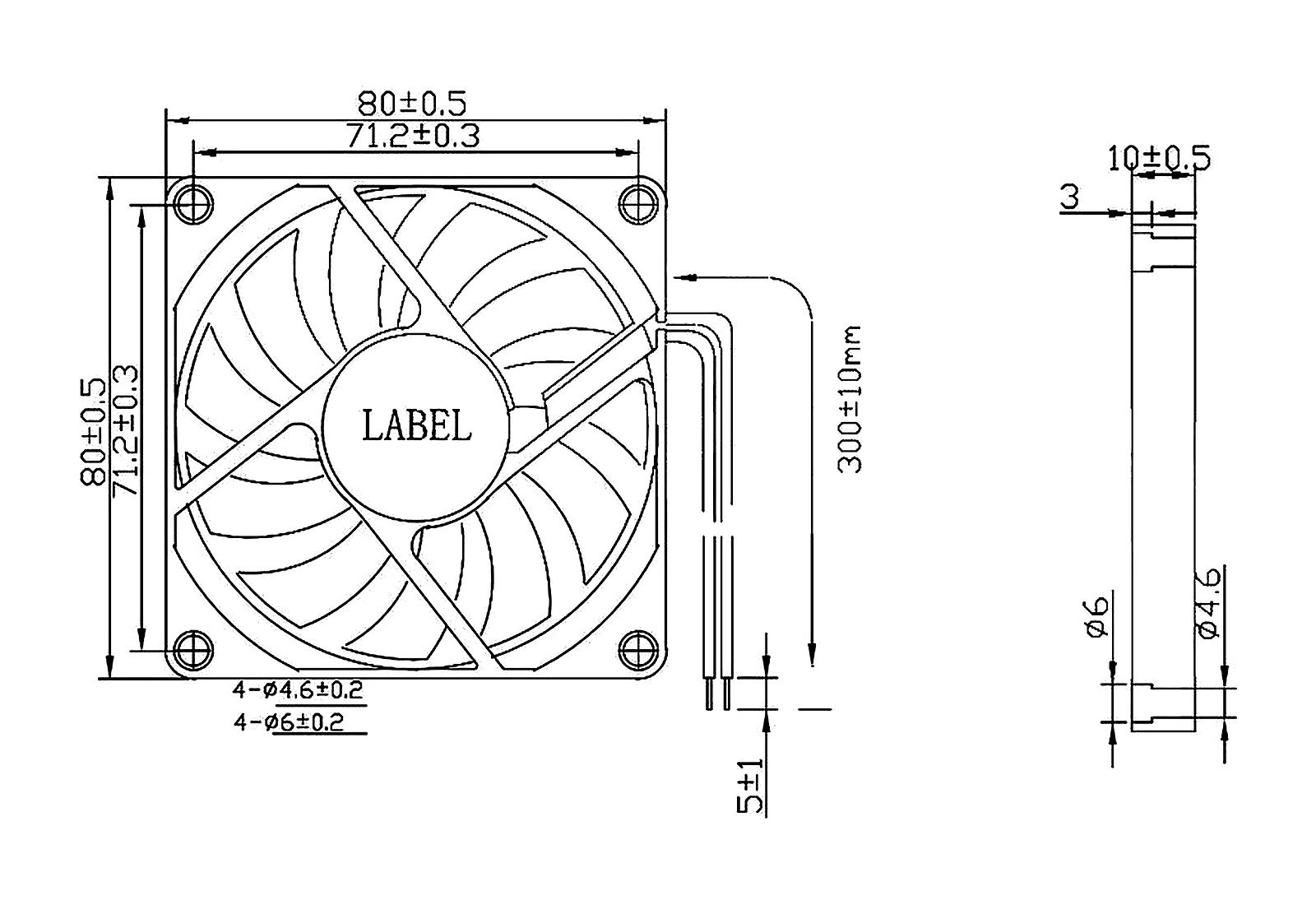

Dimension Drawing

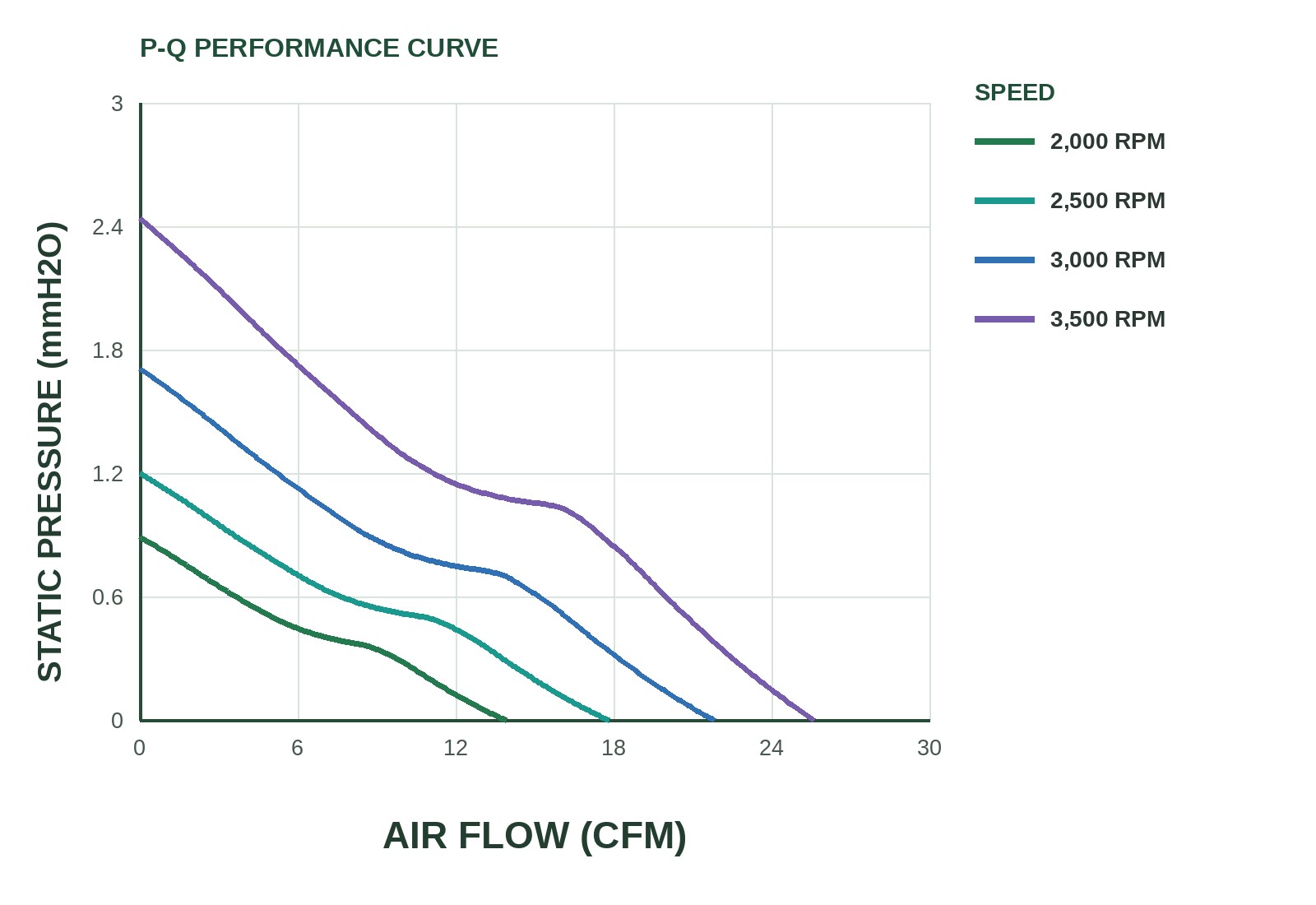

P&Q Curve
