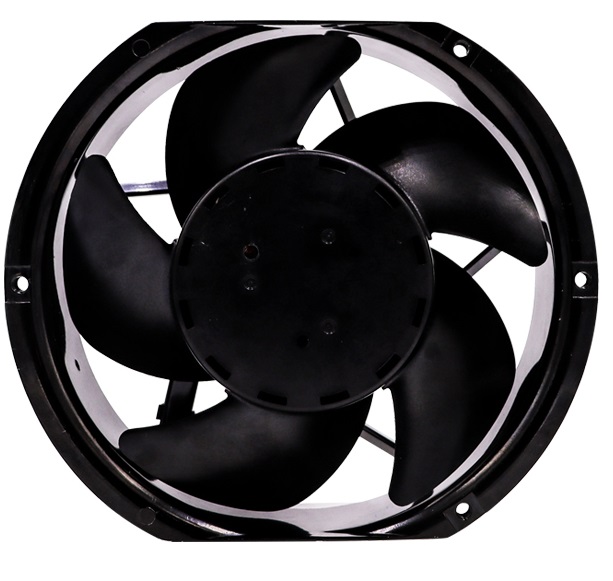

DC Fan
MFD17251E
: 172 x 150 x 51 mm
Airflow
532.1 CFM
Speed
9200 RPM
Noise
90 dB(A)
Product Specifications
| Size | : 172 x 150 x 51 mm |
| Voltage | 48V DC |
| Motor | Brushless DC |
| Frame | Aluminum |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD17251RD4-L | 48 | 36 ~ 55 | 3.2 | 153.6 | 9200 | 532.07 | 116.19 | >90 |
Dimension Drawing

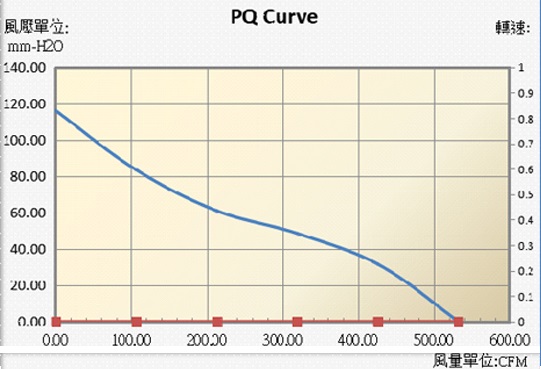

P&Q Curve
