DC Fan
MFD3010
: 30 x 30 x 10 mm
Airflow
1.0~4.2 CFM
Speed
5000~13000 RPM
Noise
25.5~34.9 dB(A)
Product Specifications
| Size | : 30 x 30 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3010D05-HB | 5 | 3.5 ~ 5.5 | 0.19 | 0.96 | 9000 | 2.95 | 4.25 | 30.1 |
| MFD3010D05-HHB | 5 | 3.5 ~ 5.5 | 0.22 | 1.08 | 11000 | 3.61 | 6.28 | 32 |
| MFD3010D05-HHS | 5 | 3.5 ~ 5.5 | 0.22 | 1.08 | 11000 | 3.61 | 6.28 | 32 |
| MFD3010D05-HS | 5 | 3.5 ~ 5.5 | 0.19 | 0.96 | 9000 | 2.95 | 4.25 | 30.1 |
| MFD3010D05-LB | 5 | 3.5 ~ 5.5 | 0.14 | 0.72 | 5000 | 0.98 | 1.22 | 25.5 |
| MFD3010D05-LS | 5 | 3.5 ~ 5.5 | 0.14 | 0.72 | 5000 | 0.98 | 1.22 | 25.5 |
| MFD3010D05-MB | 5 | 3.5 ~ 5.5 | 0.17 | 0.84 | 7000 | 2.25 | 2.5 | 27.4 |
| MFD3010D05-MS | 5 | 3.5 ~ 5.5 | 0.17 | 0.84 | 7000 | 2.25 | 2.5 | 27.4 |
| MFD3010D05-VHB | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3010D05-VHS | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3010D1-HB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 9000 | 2.95 | 4.25 | 30.1 |
| MFD3010D1-HHB | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 11000 | 3.61 | 6.28 | 32 |
| MFD3010D1-HHS | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 11000 | 3.61 | 6.28 | 32 |
| MFD3010D1-HS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 9000 | 2.95 | 4.25 | 30.1 |
| MFD3010D1-LB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5000 | 0.98 | 1.22 | 25.5 |
| MFD3010D1-LS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 5000 | 0.98 | 1.22 | 25.5 |
| MFD3010D1-MB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 7000 | 2.25 | 2.5 | 27.4 |
| MFD3010D1-MS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 7000 | 2.25 | 2.5 | 27.4 |
| MFD3010D1-VHB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3010D1-VHS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
Dimension Drawing

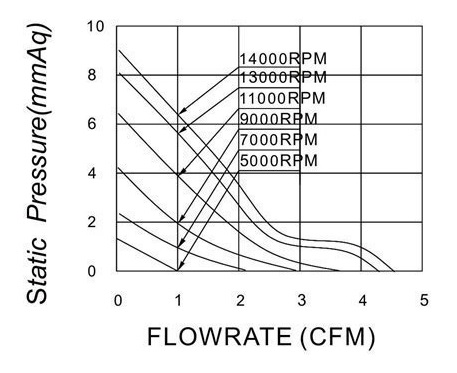

P&Q Curve
