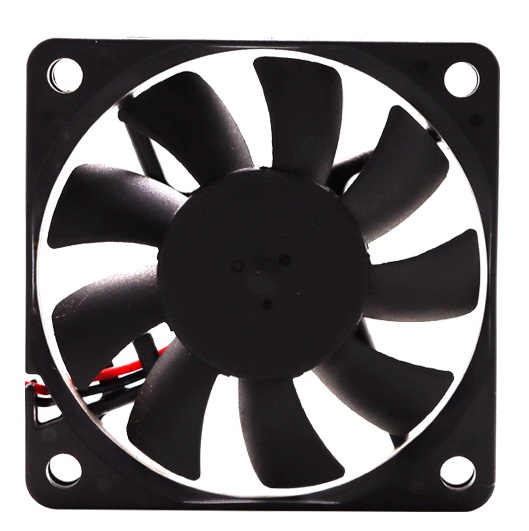

DC Fan
MFD6010C
: 60 x 60 x 15mm
Airflow
10.6~21.3 CFM
Speed
2300~4500 RPM
Noise
17.1~34.5 dB(A)
Product Specifications
| Size | : 60 x 60 x 15mm |
| Voltage | 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD6010CD1-HB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 4000 | 16.3 | 3.05 | 28.5 |
| MFD6010CD1-HS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 4000 | 16.3 | 3.05 | 28.5 |
| MFD6010CD1-LB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 3000 | 12.2 | 2.03 | 20.5 |
| MFD6010CD1-LS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 3000 | 12.2 | 2.03 | 20.5 |
| MFD6010CD1-MB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 3500 | 14.3 | 2.54 | 25 |
| MFD6010CD1-MS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 3500 | 14.3 | 2.54 | 25 |

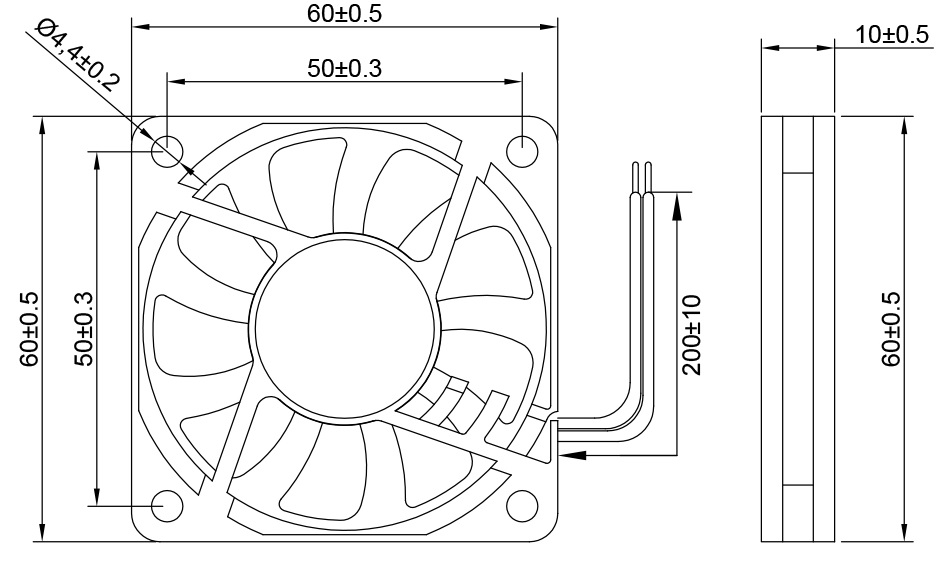

Dimension Drawing

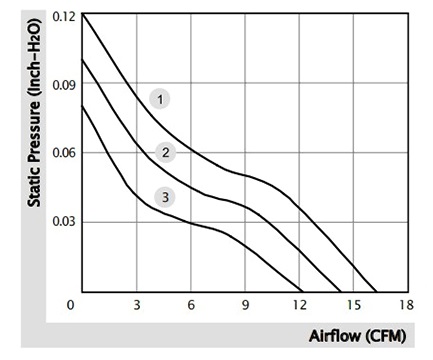

P&Q Curve
