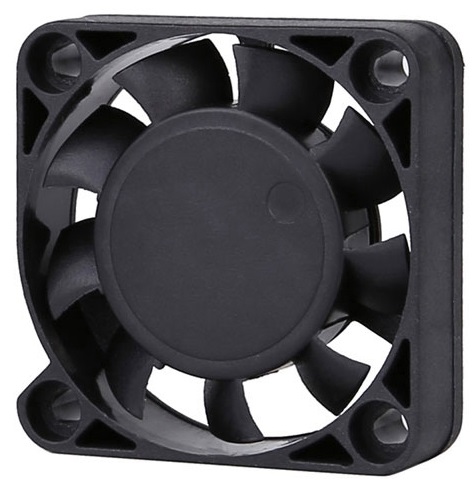

DC Fan
MFD4010B
40 x 40 x 10 mm
Airflow
4.3~8.0 CFM
Speed
4500~8500 RPM
Noise
24.2~40.2 dB(A)
Product Specifications
| Size | 40 x 40 x 10 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD4010BD05-HB | 5 | 0.19 | 0.96 | 7000 | 6.59 | 3.91 | 35.1 | Ball |
| MFD4010BD05-HHB | 5 | 0.24 | 1.2 | 8000 | 7.73 | 5.22 | 39.1 | Ball |
| MFD4010BD05-HHS | 5 | 0.24 | 1.2 | 8000 | 7.73 | 5.22 | 39.1 | Sleeve |
| MFD4010BD05-HLB | 5 | 0.22 | 1.08 | 7500 | 7.1 | 4.51 | 37.1 | Ball |
| MFD4010BD05-HLS | 5 | 0.22 | 1.08 | 7500 | 7.1 | 4.51 | 37.1 | Sleeve |
| MFD4010BD05-HS | 5 | 0.19 | 0.96 | 7000 | 6.59 | 3.91 | 35.1 | Sleeve |
| MFD4010BD05-LB | 5 | 0.08 | 0.4 | 4500 | 4.31 | 1.71 | 24.2 | Ball |
| MFD4010BD05-LMB | 5 | 0.14 | 0.72 | 5500 | 5.23 | 2.54 | 29.2 | Ball |
| MFD4010BD05-LMS | 5 | 0.14 | 0.72 | 5500 | 5.23 | 2.54 | 29.2 | Sleeve |
| MFD4010BD05-LS | 5 | 0.08 | 0.4 | 4500 | 4.31 | 1.71 | 24.2 | Sleeve |
| MFD4010BD05-LVB | 5 | 0.13 | 0.65 | 5000 | 4.81 | 2.21 | 27.3 | Ball |
| MFD4010BD05-LVS | 5 | 0.13 | 0.65 | 5000 | 4.81 | 2.21 | 27.3 | Sleeve |
| MFD4010BD05-MB | 5 | 0.17 | 0.84 | 6500 | 6.24 | 3.5 | 33.4 | Ball |
| MFD4010BD05-MLB | 5 | 0.17 | 0.84 | 6000 | 5.8 | 3.06 | 31.1 | Ball |
| MFD4010BD05-MLS | 5 | 0.17 | 0.84 | 6000 | 5.8 | 3.06 | 31.1 | Sleeve |
| MFD4010BD05-MS | 5 | 0.17 | 0.84 | 6500 | 6.24 | 3.5 | 33.4 | Sleeve |
| MFD4010BD05-VHB | 5 | 0.26 | 1.32 | 8500 | 8.02 | 5.57 | 40.2 | Ball |
| MFD4010BD05-VHS | 5 | 0.26 | 1.32 | 8500 | 8.02 | 5.57 | 40.2 | Sleeve |
| MFD4010BD1-HB | 12 | 0.08 | 0.96 | 7000 | 6.59 | 3.91 | 35.1 | Ball |
| MFD4010BD1-HHB | 12 | 0.1 | 1.2 | 8000 | 7.73 | 5.22 | 39.1 | Ball |
| MFD4010BD1-HHS | 12 | 0.1 | 1.2 | 8000 | 7.73 | 5.22 | 39.1 | Sleeve |
| MFD4010BD1-HLB | 12 | 0.09 | 1.08 | 7500 | 7.1 | 4.51 | 37.1 | Ball |
| MFD4010BD1-HLS | 12 | 0.09 | 1.08 | 7500 | 7.1 | 4.51 | 37.1 | Sleeve |
| MFD4010BD1-HS | 12 | 0.08 | 0.96 | 7000 | 6.59 | 3.91 | 35.1 | Sleeve |
| MFD4010BD1-LB | 12 | 0.03 | 0.4 | 4500 | 4.31 | 1.71 | 24.2 | Ball |
| MFD4010BD1-LMB | 12 | 0.06 | 0.72 | 5500 | 5.23 | 2.54 | 29.2 | Ball |
| MFD4010BD1-LMS | 12 | 0.06 | 0.72 | 5500 | 5.23 | 2.54 | 29.2 | Sleeve |
| MFD4010BD1-LS | 12 | 0.03 | 0.4 | 4500 | 4.31 | 1.71 | 24.2 | Sleeve |
| MFD4010BD1-LVB | 12 | 0.05 | 0.65 | 5000 | 4.81 | 2.21 | 27.3 | Ball |
| MFD4010BD1-LVS | 12 | 0.05 | 0.65 | 5000 | 4.81 | 2.21 | 27.3 | Sleeve |
| MFD4010BD1-MB | 12 | 0.07 | 0.84 | 6500 | 6.24 | 3.5 | 33.4 | Ball |
| MFD4010BD1-MLB | 12 | 0.07 | 0.84 | 6000 | 5.8 | 3.06 | 31.1 | Ball |
| MFD4010BD1-MLS | 12 | 0.07 | 0.84 | 6000 | 5.8 | 3.06 | 31.1 | Sleeve |
| MFD4010BD1-MS | 12 | 0.07 | 0.84 | 6500 | 6.24 | 3.5 | 33.4 | Sleeve |
| MFD4010BD1-VHB | 12 | 0.11 | 1.32 | 8500 | 8.02 | 5.57 | 40.2 | Ball |
| MFD4010BD1-VHS | 12 | 0.11 | 1.32 | 8500 | 8.02 | 5.57 | 40.2 | Sleeve |
Dimension Drawing

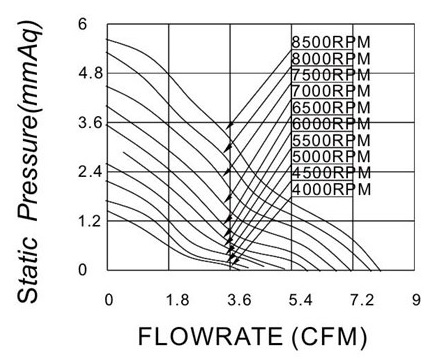

P&Q Curve
