DC Fan
MFD12025F
: 120 x 120 x 25mm
Airflow
64.2~107 CFM
Speed
1500~3000 RPM
Noise
30.5~47.4 dB(A)
Product Specifications
| Size | : 120 x 120 x 25mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025FD1-LB | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD1-LS | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD1-MB | 12 | 7 ~ 13.8 | 0.25 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD1-MS | 12 | 7 ~ 13.8 | 0.25 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD1-HB | 12 | 7 ~ 13.8 | 0.31 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD1-HS | 12 | 7 ~ 13.8 | 0.31 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD1-HHB | 12 | 7 ~ 13.8 | 0.45 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD1-HHS | 12 | 7 ~ 13.8 | 0.45 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD2-LB | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD2-LS | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD2-MB | 24 | 18 ~ 26.5 | 0.13 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD2-MS | 24 | 18 ~ 26.5 | 0.13 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD2-HB | 24 | 18 ~ 26.5 | 0.16 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD2-HS | 24 | 18 ~ 26.5 | 0.16 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD2-HHB | 24 | 18 ~ 26.5 | 0.23 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD2-HHS | 24 | 18 ~ 26.5 | 0.23 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD4-LB | 48 | 36 ~ 54 | 0.05 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD4-LS | 48 | 36 ~ 54 | 0.05 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD4-MB | 48 | 36 ~ 54 | 0.07 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD4-MS | 48 | 36 ~ 54 | 0.07 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD4-HB | 48 | 36 ~ 54 | 0.08 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD4-HS | 48 | 36 ~ 54 | 0.08 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD4-HHB | 48 | 36 ~ 54 | 0.12 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD4-HHS | 48 | 36 ~ 54 | 0.12 | 5.4 | 3000 | 107 | 10.55 | 47.4 |

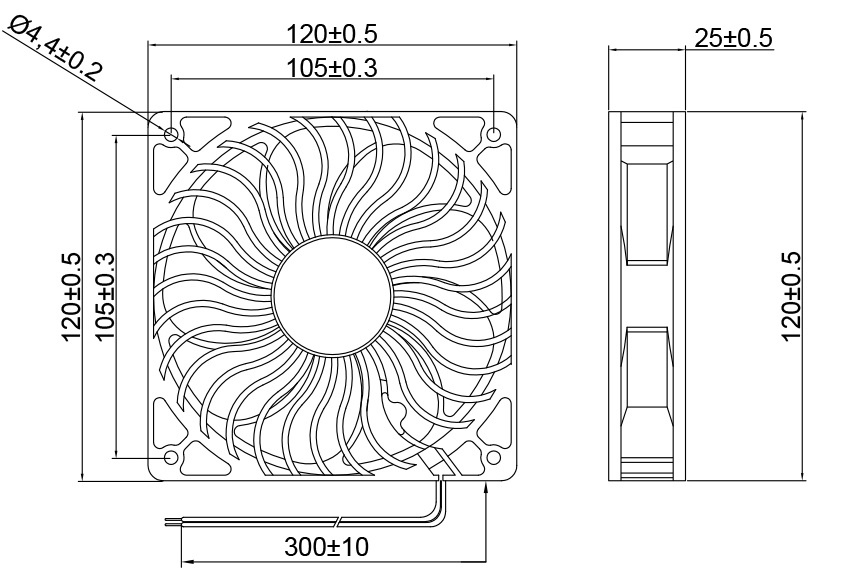

Dimension Drawing
P&Q Curve
