DC 風扇
MFD12025F
: 120 x 120 x 25mm
風量
64.2~107 CFM
轉速
1500~3000 RPM
噪音
30.5~47.4 dB(A)
產品規格
| 尺寸 | : 120 x 120 x 25mm |
| 電壓 | 12V / 24V / 48V DC |
| 馬達 | 無刷直流 |
| 框架 | 塑膠 PBT UL94V-0 |
| 扇葉 | 塑膠 PBT UL94V-0 |
| 軸承類型 | 滾珠軸承 / 含油軸承 |
| 工作溫度 | 滾珠軸承: -10 ~ 70°C / 含油軸承: 0 ~ 60°C |
| 預期壽命 | 滾珠軸承: 50,000 小時 (25°C) / 含油軸承: 30,000 小時 (25°C) |
型號與規格
| 型號 | 額定電壓 (V) | 工作電壓範圍 (V) | 額定電流 (A) | 輸入功率 (W) | 轉速 (RPM) | 最大風量 (CFM) | 最大靜壓 (mmH₂O) | 噪音 (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025FD1-HB | 12 | 7 ~ 13.8 | 0.31 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD1-HHB | 12 | 7 ~ 13.8 | 0.45 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD1-HHS | 12 | 7 ~ 13.8 | 0.45 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD1-HS | 12 | 7 ~ 13.8 | 0.31 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD1-LB | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD1-LS | 12 | 7 ~ 13.8 | 0.18 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD1-MB | 12 | 7 ~ 13.8 | 0.25 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD1-MS | 12 | 7 ~ 13.8 | 0.25 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD2-HB | 24 | 18 ~ 26.5 | 0.16 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD2-HHB | 24 | 18 ~ 26.5 | 0.23 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD2-HHS | 24 | 18 ~ 26.5 | 0.23 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD2-HS | 24 | 18 ~ 26.5 | 0.16 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD2-LB | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD2-LS | 24 | 18 ~ 26.5 | 0.09 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD2-MB | 24 | 18 ~ 26.5 | 0.13 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD2-MS | 24 | 18 ~ 26.5 | 0.13 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD4-HB | 48 | 36 ~ 54 | 0.08 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD4-HHB | 48 | 36 ~ 54 | 0.12 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD4-HHS | 48 | 36 ~ 54 | 0.12 | 5.4 | 3000 | 107 | 10.55 | 47.4 |
| MFD12025FD4-HS | 48 | 36 ~ 54 | 0.08 | 3.72 | 2500 | 92.4 | 9.63 | 42.4 |
| MFD12025FD4-LB | 48 | 36 ~ 54 | 0.05 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD4-LS | 48 | 36 ~ 54 | 0.05 | 2.16 | 1500 | 64.2 | 6.59 | 30.5 |
| MFD12025FD4-MB | 48 | 36 ~ 54 | 0.07 | 3 | 2000 | 76.6 | 8.12 | 36.5 |
| MFD12025FD4-MS | 48 | 36 ~ 54 | 0.07 | 3 | 2000 | 76.6 | 8.12 | 36.5 |

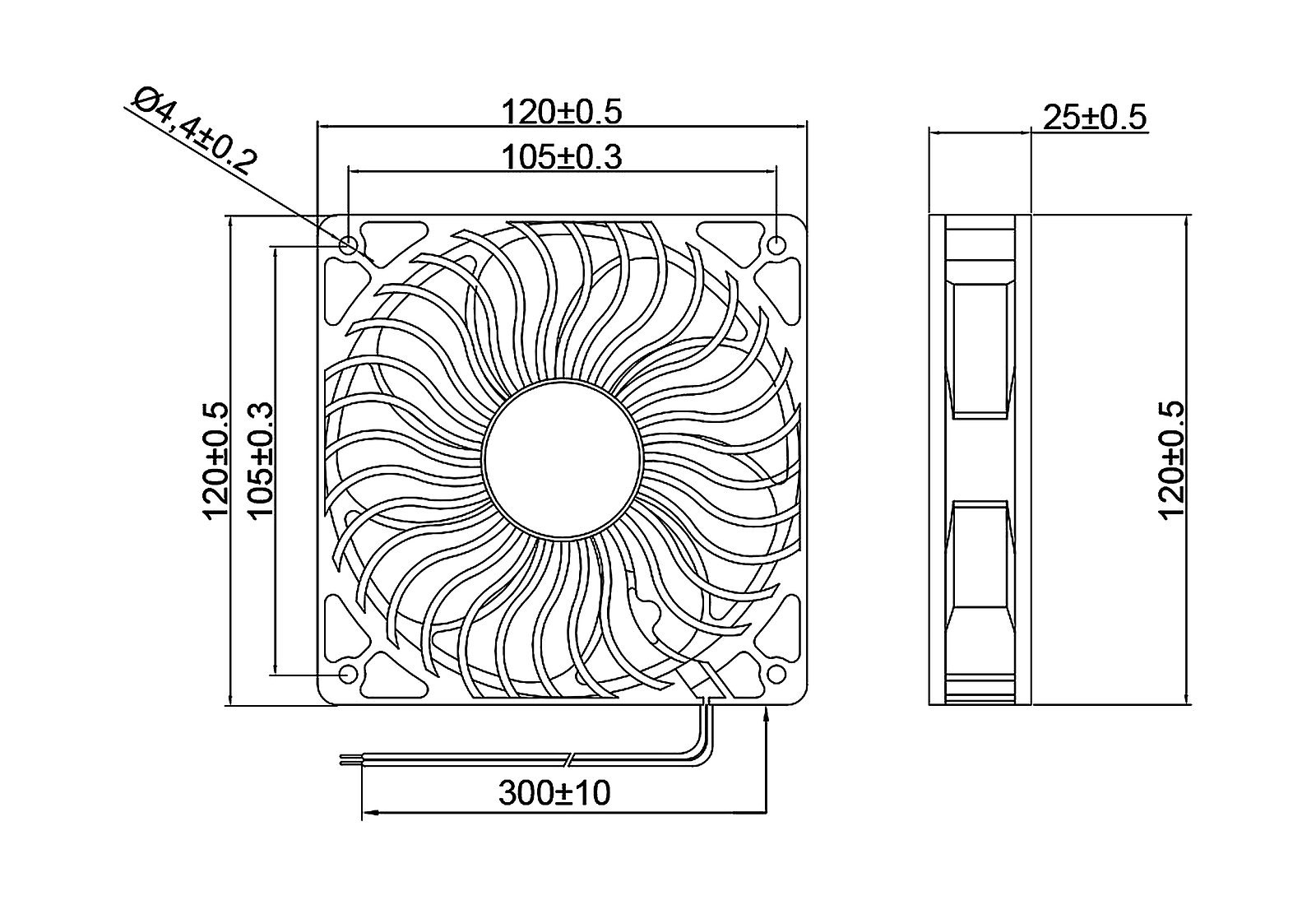

尺寸圖

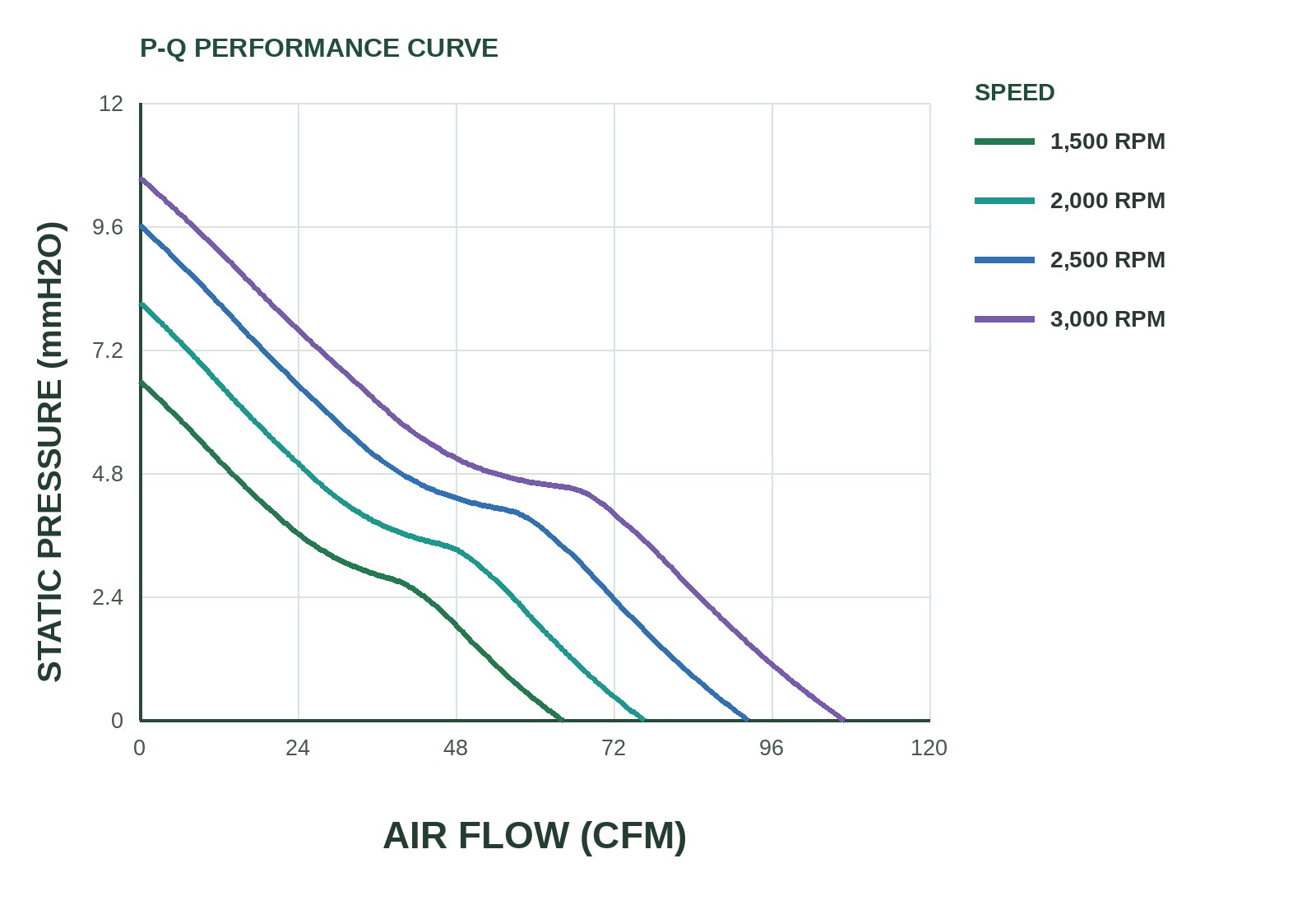

P&Q 曲線圖
