DC Fan
MFD6020
: 60 x 60 x 20mm
Airflow
13.8~19.6 CFM
Speed
3500~5000 RPM
Noise
27.2~36.5 dB(A)
Product Specifications
| Size | : 60 x 60 x 20mm |
| Voltage | 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD6020D1-HB | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 5000 | 19.6 | 5.94 | 36.5 |
| MFD6020D1-HS | 12 | 7 ~ 13.8 | 0.12 | 1.44 | 5000 | 19.6 | 5.94 | 36.5 |
| MFD6020D1-LB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 3500 | 13.8 | 2.87 | 27.2 |
| MFD6020D1-LMB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 4000 | 15.4 | 3.9 | 30.1 |
| MFD6020D1-LMS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 4000 | 15.4 | 3.9 | 30.1 |
| MFD6020D1-LS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 3500 | 13.8 | 2.87 | 27.2 |
| MFD6020D1-MB | 12 | 7 ~ 13.8 | 0.11 | 1.32 | 4500 | 17.6 | 4.86 | 33.5 |
| MFD6020D1-MS | 12 | 7 ~ 13.8 | 0.11 | 1.32 | 4500 | 17.6 | 4.86 | 33.5 |
| MFD6020D2-HB | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 5000 | 19.6 | 5.94 | 36.5 |
| MFD6020D2-HS | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 5000 | 19.6 | 5.94 | 36.5 |
| MFD6020D2-LB | 24 | 18 ~ 26.5 | 0.03 | 0.72 | 3500 | 13.8 | 2.87 | 27.2 |
| MFD6020D2-LMB | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 4000 | 15.4 | 3.9 | 30.1 |
| MFD6020D2-LMS | 24 | 18 ~ 26.5 | 0.05 | 1.2 | 4000 | 15.4 | 3.9 | 30.1 |
| MFD6020D2-LS | 24 | 18 ~ 26.5 | 0.03 | 0.72 | 3500 | 13.8 | 2.87 | 27.2 |
| MFD6020D2-MB | 24 | 18 ~ 26.5 | 0.06 | 1.32 | 4500 | 17.6 | 4.86 | 33.5 |
| MFD6020D2-MS | 24 | 18 ~ 26.5 | 0.06 | 1.32 | 4500 | 17.6 | 4.86 | 33.5 |

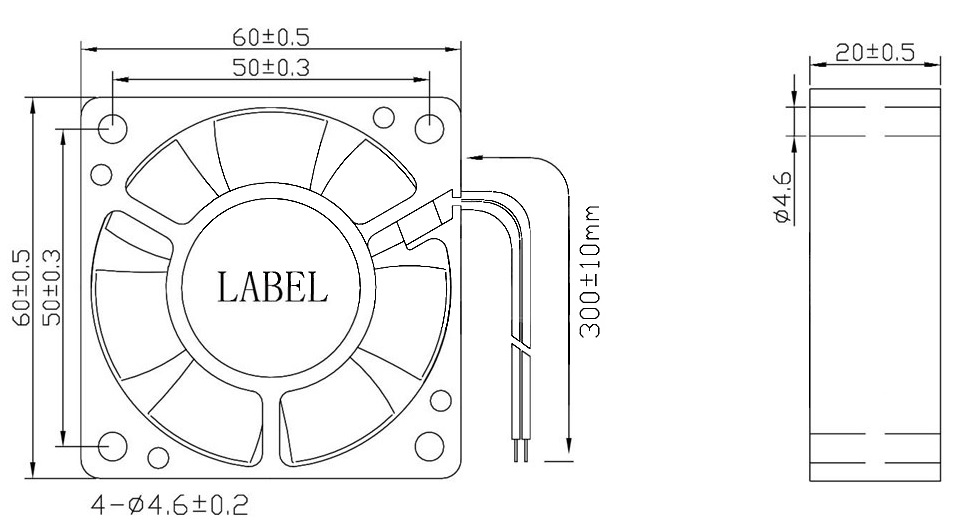

Dimension Drawing
P&Q Curve
