DC Fan
MFD14038B
: 140 x 140 x 38mm
Airflow
167.7~254.89 CFM
Speed
4500~6500 RPM
Noise
55.8~67.8 dB(A)
Product Specifications
| Size | : 140 x 140 x 38mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD14038BD1-LB | 12 | 7 ~ 13.8 | 2.3 | 27 | 4500 | 167.7 | 17.92 | 55.8 |
| MFD14038BD1-MB | 12 | 7 ~ 13.8 | 2.5 | 30 | 5000 | 189.71 | 22.4 | 58.2 |
| MFD14038BD1-HB | 12 | 7 ~ 13.8 | 2.7 | 32 | 5500 | 209.4 | 26.72 | 62 |
| MFD14038BD1-HHB | 12 | 7 ~ 13.8 | 3 | 36 | 6000 | 229.45 | 31.64 | 64 |
| MFD14038BD1-VHB | 12 | 7 ~ 13.8 | 3.5 | 42 | 6500 | 254.89 | 37.93 | 67.8 |
| MFD14038BD2-LB | 24 | 18 ~ 26.5 | 1.17 | 28 | 4500 | 167.7 | 17.92 | 55.8 |
| MFD14038BD2-MB | 24 | 18 ~ 26.5 | 1.33 | 32 | 5000 | 189.71 | 22.4 | 58.2 |
| MFD14038BD2-HB | 24 | 18 ~ 26.5 | 1.42 | 34 | 5500 | 209.4 | 26.72 | 62 |
| MFD14038BD2-HHB | 24 | 18 ~ 26.5 | 1.58 | 38 | 6000 | 229.45 | 31.64 | 64 |
| MFD14038BD2-VHB | 24 | 18 ~ 26.5 | 1.83 | 44 | 6500 | 254.89 | 37.93 | 67.8 |
| MFD14038BD4-LB | 48 | 36 ~ 54 | 0.63 | 30 | 4500 | 167.7 | 17.92 | 55.8 |
| MFD14038BD4-MB | 48 | 36 ~ 54 | 0.71 | 34 | 5000 | 189.71 | 22.4 | 58.2 |
| MFD14038BD4-HB | 48 | 36 ~ 54 | 0.79 | 38 | 5500 | 209.4 | 26.72 | 62 |
| MFD14038BD4-HHB | 48 | 36 ~ 54 | 0.92 | 44 | 6000 | 229.45 | 31.64 | 64 |
| MFD14038BD4-VHB | 48 | 36 ~ 54 | 1.04 | 50 | 6500 | 254.89 | 37.93 | 67.8 |
Dimension Drawing

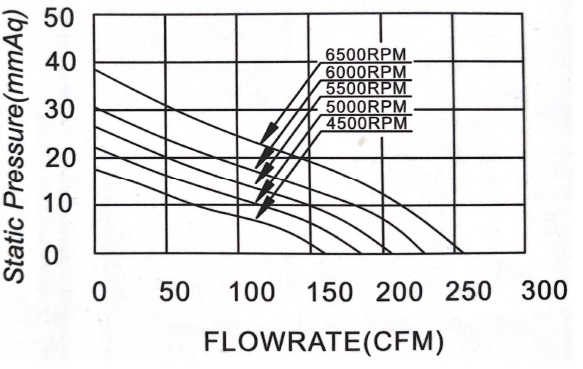

P&Q Curve
