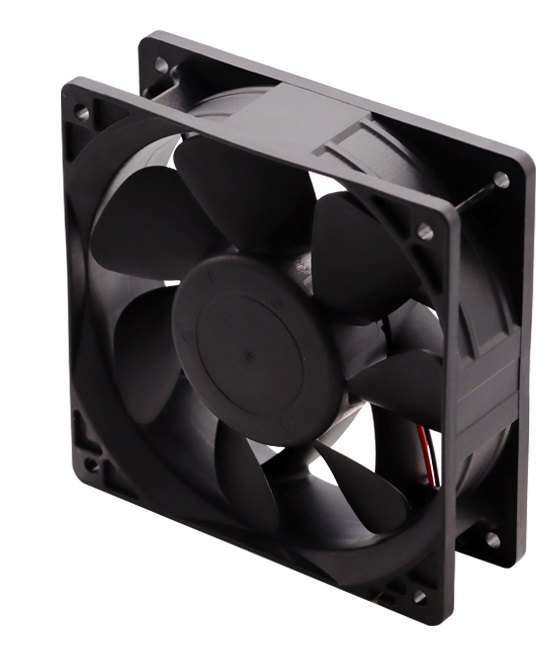

DC Fan
MFD12038Q
120 x 120 x 38mm
Airflow
111.0~217.6 CFM
Speed
3000~6000 RPM
Noise
45.7~63.5 dB(A)
Product Specifications
| Size | 120 x 120 x 38mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD12038QD1-HB | 12 | 0.74 | 8.88 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD1-HHB | 12 | 1.3 | 15.6 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD1-HVB | 12 | 1.8 | 21.6 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD1-LB | 12 | 0.4 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD1-LS | 12 | 0.4 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD1-MB | 12 | 0.5 | 6 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD1-VHB | 12 | 1.4 | 16.8 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD1-VMB | 12 | 0.52 | 6.24 | 4000 | 142.97 | 13.81 | 52.8 | Ball |
| MFD12038QD2-HB | 24 | 0.45 | 10.8 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD2-HHB | 24 | 0.65 | 15.6 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD2-HVB | 24 | 0.9 | 21.6 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD2-LB | 24 | 0.2 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD2-LS | 24 | 0.2 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD2-MB | 24 | 0.25 | 6 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD2-VHB | 24 | 0.85 | 20.4 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD2-VMB | 24 | 0.35 | 8.4 | 4000 | 142.97 | 13.81 | 52.8 | Ball |
| MFD12038QD4-HB | 48 | 0.23 | 11.04 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD4-HHB | 48 | 0.33 | 15.84 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD4-HVB | 48 | 0.67 | 32 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD4-LB | 48 | 0.1 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD4-LS | 48 | 0.1 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD4-MB | 48 | 0.13 | 6.24 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD4-VHB | 48 | 0.6 | 28.8 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD4-VMB | 48 | 0.18 | 8.64 | 4000 | 142.97 | 13.81 | 52.8 | Ball |

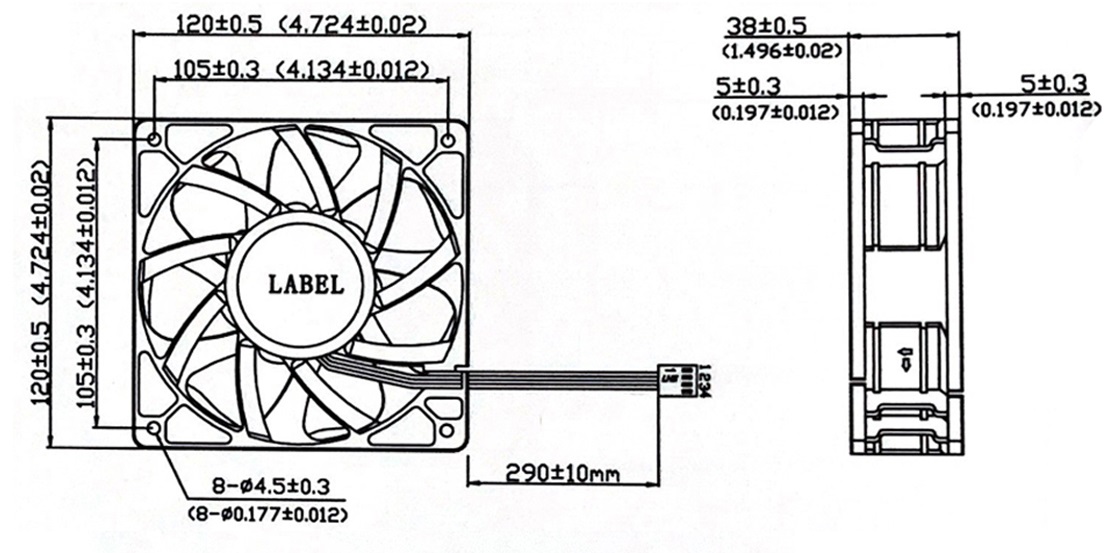

Dimension Drawing

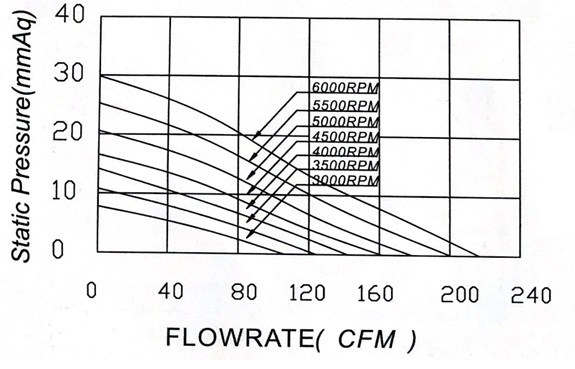

P&Q Curve
