DC Fan
MFD8038
: 80 x 80 x 38 mm
Airflow
49.9~109.1 CFM
Speed
4000~8500 RPM
Noise
46.8~66.6 dB(A)
Product Specifications
| Size | : 80 x 80 x 38 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD8038D1-LB | 12 | 7 ~ 13.8 | 0.29 | 3.48 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D1-LS | 12 | 7 ~ 13.8 | 0.29 | 3.48 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D1-MB | 12 | 7 ~ 13.8 | 0.72 | 8.64 | 5500 | 70.21 | 15.83 | 53.2 |
| MFD8038D1-HB | 12 | 7 ~ 13.8 | 0.9 | 10.8 | 6000 | 74.98 | 18.78 | 58.9 |
| MFD8038D1-HHB | 12 | 7 ~ 13.8 | 1.2 | 14.4 | 7000 | 91.51 | 25.52 | 60.5 |
| MFD8038D1-VHB | 12 | 7 ~ 13.8 | 1.8 | 21.6 | 8500 | 109.06 | 37.26 | 66.6 |
| MFD8038D2-LB | 24 | 18 ~ 26.5 | 0.14 | 3.48 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D2-LS | 24 | 18 ~ 26.5 | 0.14 | 3.48 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D2-MB | 24 | 18 ~ 26.5 | 0.36 | 8.64 | 5500 | 70.21 | 15.83 | 53.2 |
| MFD8038D2-HB | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 6000 | 74.98 | 18.78 | 58.9 |
| MFD8038D2-HHB | 24 | 18 ~ 26.5 | 0.5 | 14.4 | 7000 | 91.51 | 25.52 | 60.5 |
| MFD8038D2-VHB | 24 | 18 ~ 26.5 | 0.9 | 21.6 | 8500 | 109.06 | 37.26 | 66.6 |
| MFD8038D4-LB | 48 | 36 ~ 54 | 0.13 | 6 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D4-LS | 48 | 36 ~ 54 | 0.13 | 6 | 4000 | 49.89 | 8.51 | 46.8 |
| MFD8038D4-MB | 48 | 36 ~ 54 | 0.23 | 10.8 | 5500 | 70.21 | 15.83 | 53.2 |
| MFD8038D4-HB | 48 | 36 ~ 54 | 0.36 | 14.4 | 6000 | 74.98 | 18.78 | 58.9 |
| MFD8038D4-HHB | 48 | 36 ~ 54 | 0.4 | 19.2 | 7000 | 91.51 | 25.52 | 60.5 |
| MFD8038D4-VHB | 48 | 36 ~ 54 | 0.53 | 25.2 | 8500 | 109.06 | 37.26 | 66.6 |

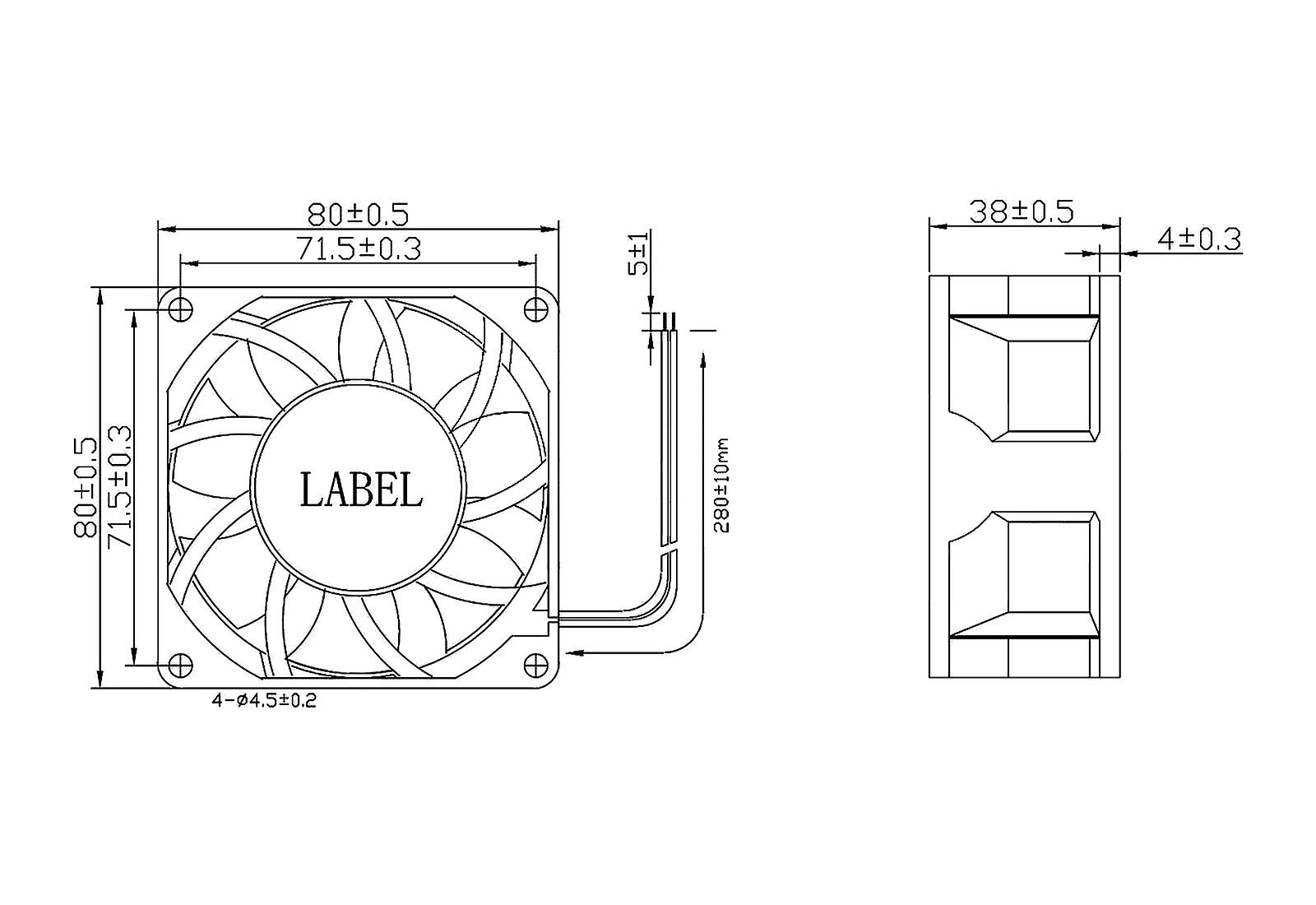

Dimension Drawing

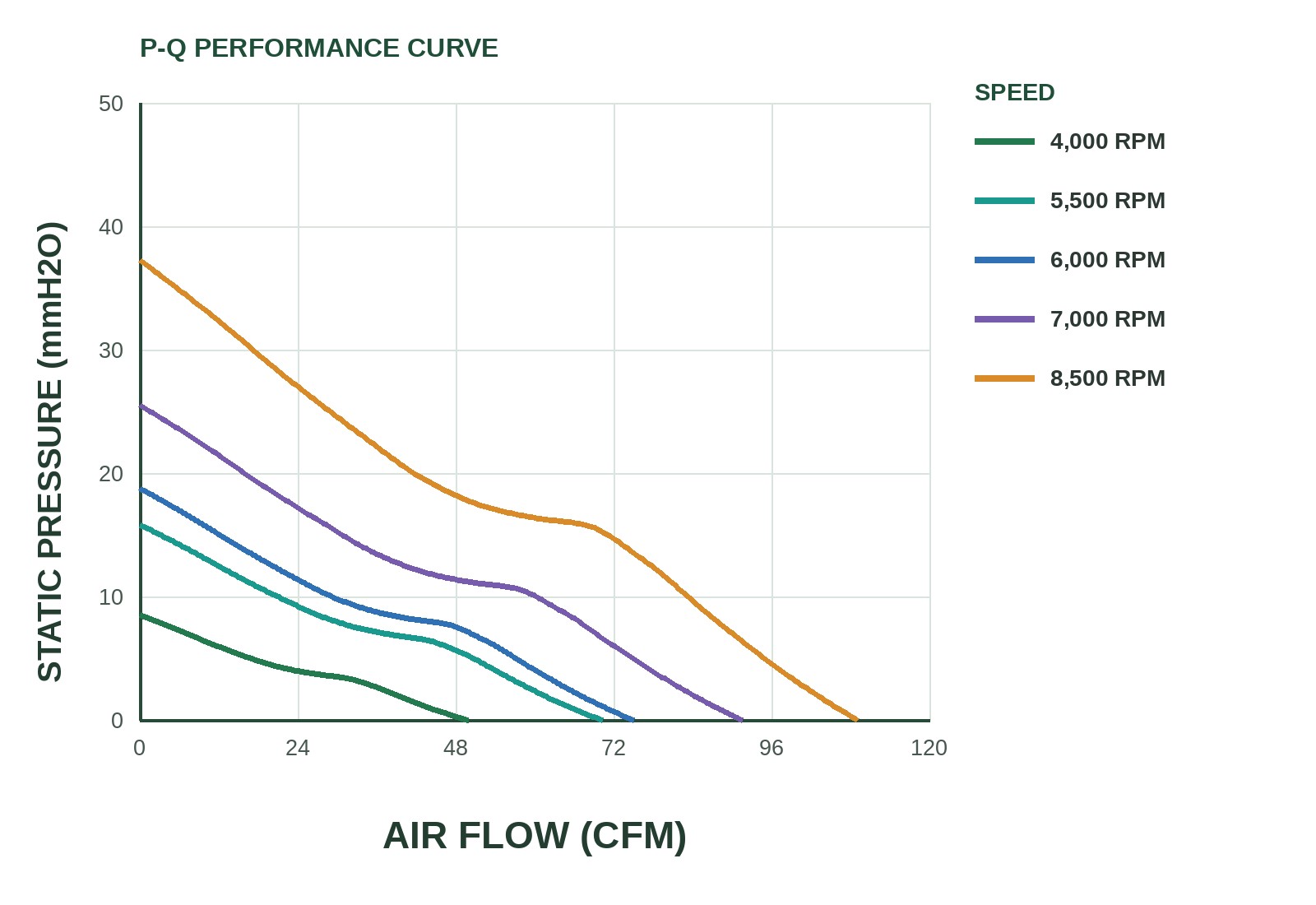

P&Q Curve
