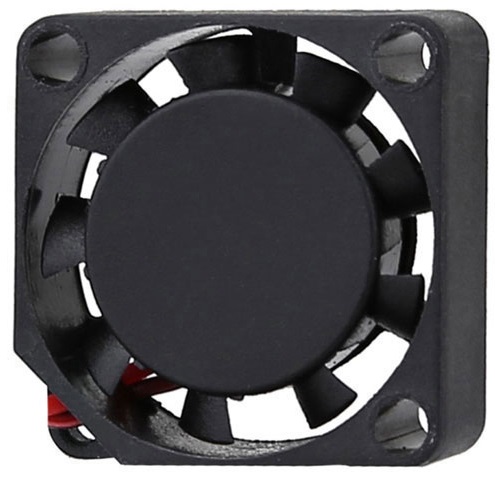

DC Fan
MFD2006
: 20 x 20 x 6 mm
Airflow
0.8~1.1 CFM
Speed
8000~12000 RPM
Noise
21.5~31.2 dB(A)
Product Specifications
| Size | : 20 x 20 x 6 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Sleeve Bearing |
| Operating Temperature | Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD2006D05-HS | 5 | 3.5 ~ 5.5 | 0.11 | 0.55 | 12000 | 1.12 | 2.69 | 31.2 |
| MFD2006D05-LS | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 8000 | 0.79 | 1.95 | 21.5 |
| MFD2006D05-MS | 5 | 3.5 ~ 5.5 | 0.09 | 0.45 | 10000 | 0.95 | 2.22 | 25.6 |
| MFD2006D1-HS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 12000 | 1.12 | 2.69 | 31.2 |
| MFD2006D1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 8000 | 0.79 | 1.95 | 21.5 |
| MFD2006D1-MS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 10000 | 0.95 | 2.22 | 25.6 |

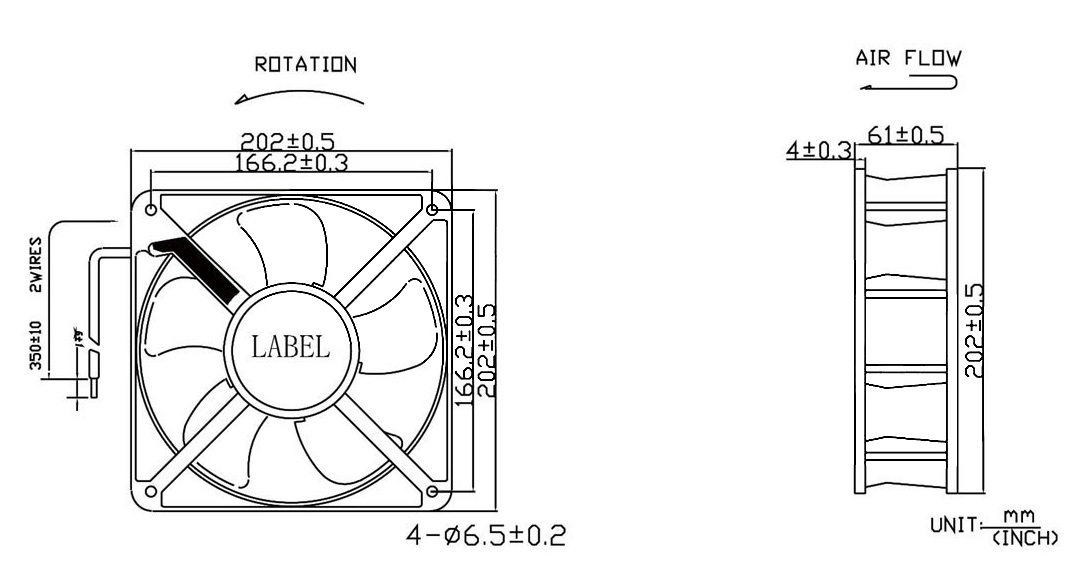

Dimension Drawing

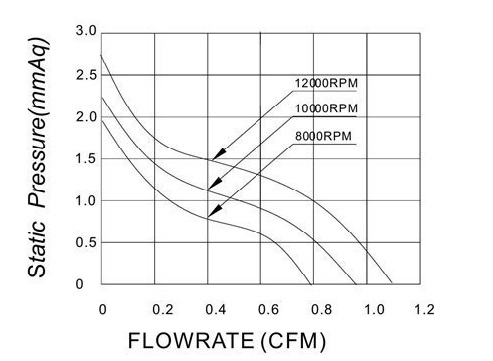

P&Q Curve
