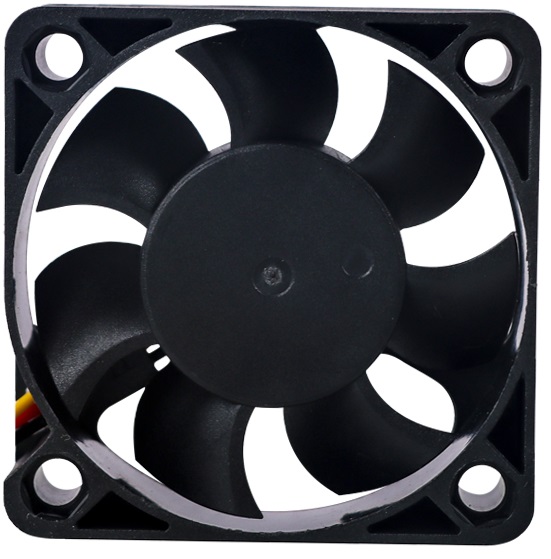

DC Fan
MFD5015B
: 50 x 50 x 15mm
Airflow
6.3~10.9 CFM
Speed
4000~6500 RPM
Noise
22.1~40 dB(A)
Product Specifications
| Size | : 50 x 50 x 15mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD5015BD05-HB | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5015BD05-HHB | 5 | 3.5 ~ 5.5 | 0.22 | 1.1 | 6500 | 10.9 | 3.77 | 40 |
| MFD5015BD05-HHS | 5 | 3.5 ~ 5.5 | 0.22 | 1.1 | 6500 | 10.9 | 3.77 | 40 |
| MFD5015BD05-HS | 5 | 3.5 ~ 5.5 | 0.2 | 1 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5015BD05-LB | 5 | 3.5 ~ 5.5 | 0.07 | 0.35 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5015BD05-LHB | 5 | 3.5 ~ 5.5 | 0.19 | 0.95 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5015BD05-LHS | 5 | 3.5 ~ 5.5 | 0.19 | 0.95 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5015BD05-LMB | 5 | 3.5 ~ 5.5 | 0.13 | 0.65 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5015BD05-LMS | 5 | 3.5 ~ 5.5 | 0.13 | 0.65 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5015BD05-LS | 5 | 3.5 ~ 5.5 | 0.07 | 0.35 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5015BD05-MB | 5 | 3.5 ~ 5.5 | 0.15 | 0.75 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5015BD05-MS | 5 | 3.5 ~ 5.5 | 0.15 | 0.75 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5015BD1-HB | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5015BD1-HHB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 6500 | 10.9 | 3.77 | 40 |
| MFD5015BD1-HHS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 6500 | 10.9 | 3.77 | 40 |
| MFD5015BD1-HS | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 6000 | 10.6 | 3.45 | 37.6 |
| MFD5015BD1-LB | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5015BD1-LHB | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5015BD1-LHS | 12 | 7 ~ 13.8 | 0.08 | 0.96 | 5500 | 9.12 | 2.92 | 35.1 |
| MFD5015BD1-LMB | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5015BD1-LMS | 12 | 7 ~ 13.8 | 0.06 | 0.72 | 4500 | 7.62 | 1.98 | 27.1 |
| MFD5015BD1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 4000 | 6.34 | 1.37 | 22.1 |
| MFD5015BD1-MHB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 5000 | 8.65 | 2.53 | 31.8 |
| MFD5015BD1-MHS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 5000 | 8.65 | 2.53 | 31.8 |
Dimension Drawing
P&Q Curve
