DC Fan
MFD14050
: 140 x 140 x 50mm
Airflow
229.5~360.8 CFM
Speed
2800~4300 RPM
Noise
59.4~68.1 dB(A)
Product Specifications
| Size | : 140 x 140 x 50mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD14050D1-HB | 12 | 7 ~ 13.8 | 2.85 | 38.4 | 3600 | 303.68 | 21.818 | 64.7 |
| MFD14050D1-LB | 12 | 7 ~ 13.8 | 2.12 | 21.6 | 2800 | 229.46 | 13.258 | 59.4 |
| MFD14050D1-MB | 12 | 7 ~ 13.8 | 2.6 | 33.6 | 3200 | 265.12 | 17.018 | 62.5 |
| MFD14050D2-HB | 24 | 18 ~ 26.5 | 1.5 | 36 | 3600 | 303.68 | 21.818 | 64.7 |
| MFD14050D2-LB | 24 | 18 ~ 26.5 | 0.3 | 19.2 | 2800 | 229.46 | 13.258 | 59.4 |
| MFD14050D2-MB | 24 | 18 ~ 26.5 | 1.1 | 26.4 | 3200 | 265.12 | 17.018 | 62.5 |
| MFD14050D4-HB | 48 | 36 ~ 54 | 0.73 | 35.04 | 3600 | 303.68 | 21.818 | 64.7 |
| MFD14050D4-LB | 48 | 36 ~ 54 | 0.53 | 17.28 | 2800 | 229.46 | 13.258 | 59.4 |
| MFD14050D4-MB | 48 | 36 ~ 54 | 0.67 | 24.48 | 3200 | 265.12 | 17.018 | 62.5 |
| MFD14050D4-UB | 48 | 36 ~ 54 | 1.1 | 52.8 | 4300 | 360.8 | 29.387 | 68.1 |

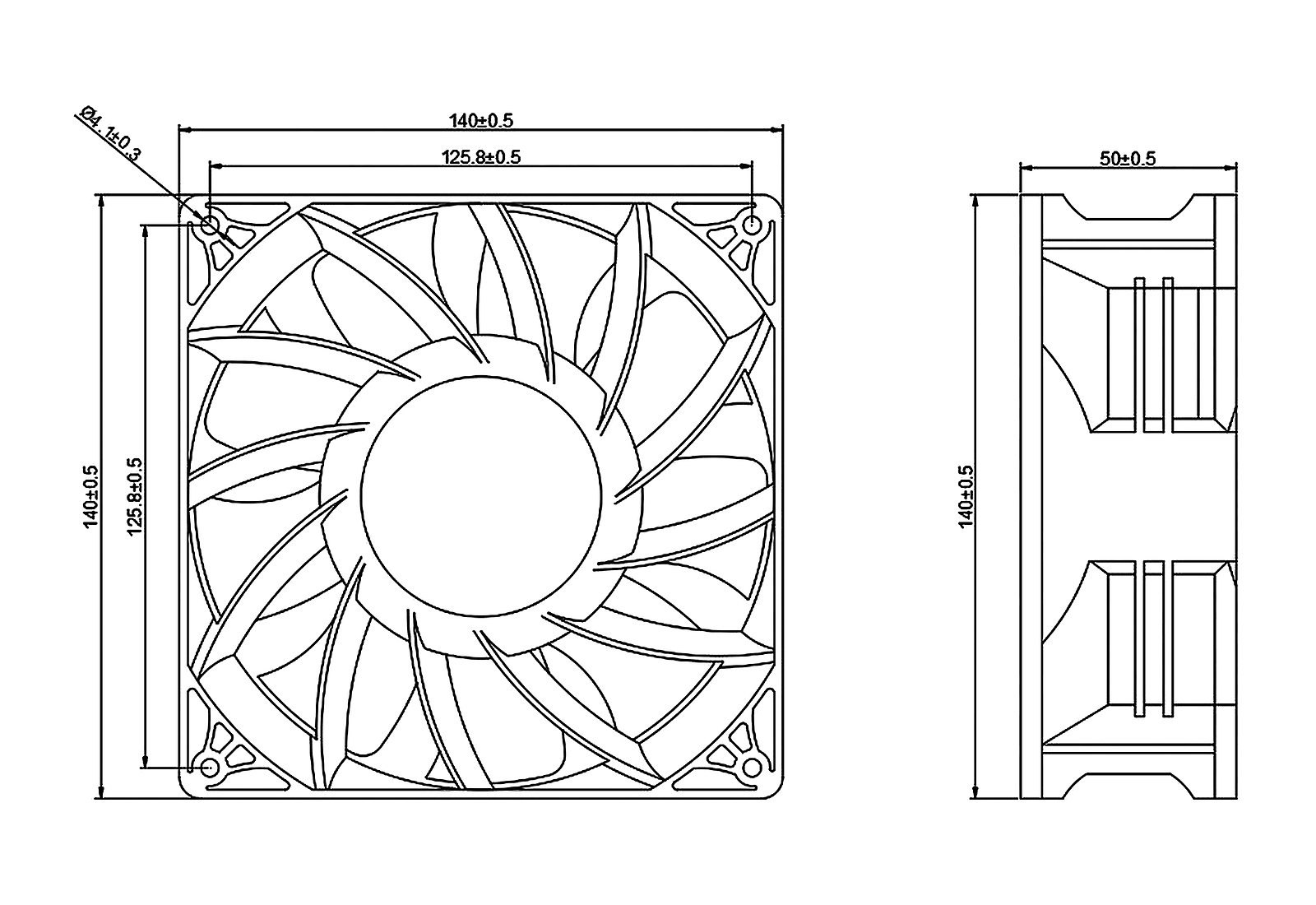

Dimension Drawing

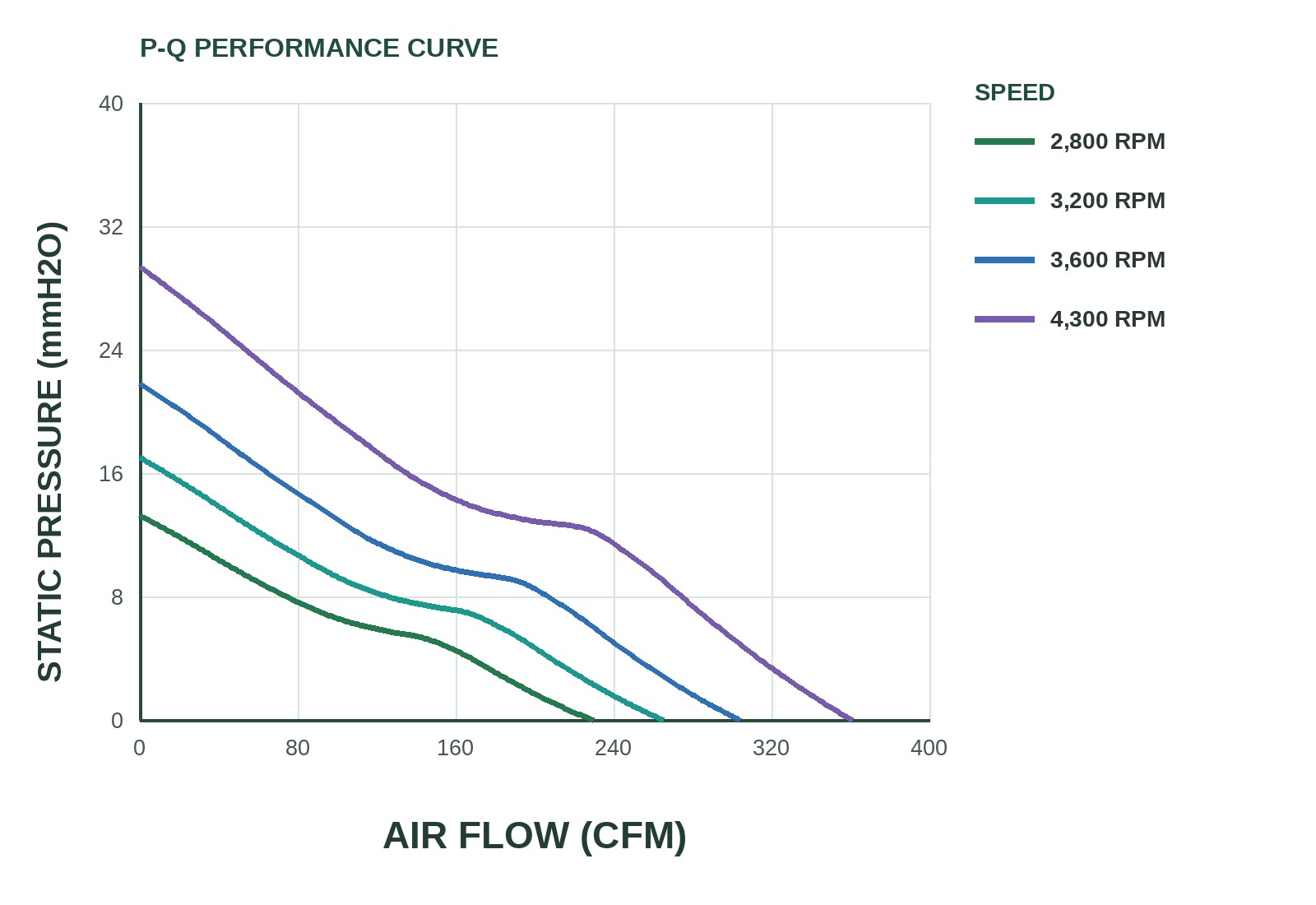

P&Q Curve
