DC Fan
MFD8015
: 80 x 80 x 15 mm
Airflow
22.8~36.6 CFM
Speed
2000~3500 RPM
Noise
30.4~40.3 dB(A)
Product Specifications
| Size | : 80 x 80 x 15 mm |
| Voltage | 5V / 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD8015D05-LB | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D05-LS | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D1-HB | 12 | 7 ~ 13.8 | 0.2 | 2.4 | 3000 | 31.9 | 2.44 | 36.2 |
| MFD8015D1-HHB | 12 | 7 ~ 13.8 | 0.25 | 3 | 3500 | 36.6 | 3.38 | 40.3 |
| MFD8015D1-HHS | 12 | 7 ~ 13.8 | 0.25 | 3 | 3500 | 36.6 | 3.38 | 40.3 |
| MFD8015D1-HS | 12 | 7 ~ 13.8 | 0.2 | 2.4 | 3000 | 31.9 | 2.44 | 36.2 |
| MFD8015D1-LB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D1-LS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D1-MB | 12 | 7 ~ 13.8 | 0.16 | 1.92 | 2500 | 25 | 1.65 | 33.5 |
| MFD8015D1-MS | 12 | 7 ~ 13.8 | 0.16 | 1.92 | 2500 | 25 | 1.65 | 33.5 |
| MFD8015D2-HB | 24 | 18 ~ 26.5 | 0.1 | 2.4 | 3000 | 31.9 | 2.44 | 36.2 |
| MFD8015D2-HHB | 24 | 18 ~ 26.5 | 0.18 | 3 | 3500 | 36.6 | 3.38 | 40.3 |
| MFD8015D2-HHS | 24 | 18 ~ 26.5 | 0.18 | 3 | 3500 | 36.6 | 3.38 | 40.3 |
| MFD8015D2-HS | 24 | 18 ~ 26.5 | 0.1 | 2.4 | 3000 | 31.9 | 2.44 | 36.2 |
| MFD8015D2-LB | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D2-LS | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 2000 | 22.8 | 1.2 | 30.4 |
| MFD8015D2-MB | 24 | 18 ~ 26.5 | 0.08 | 1.92 | 2500 | 25 | 1.65 | 33.5 |
| MFD8015D2-MS | 24 | 18 ~ 26.5 | 0.08 | 1.92 | 2500 | 25 | 1.65 | 33.5 |

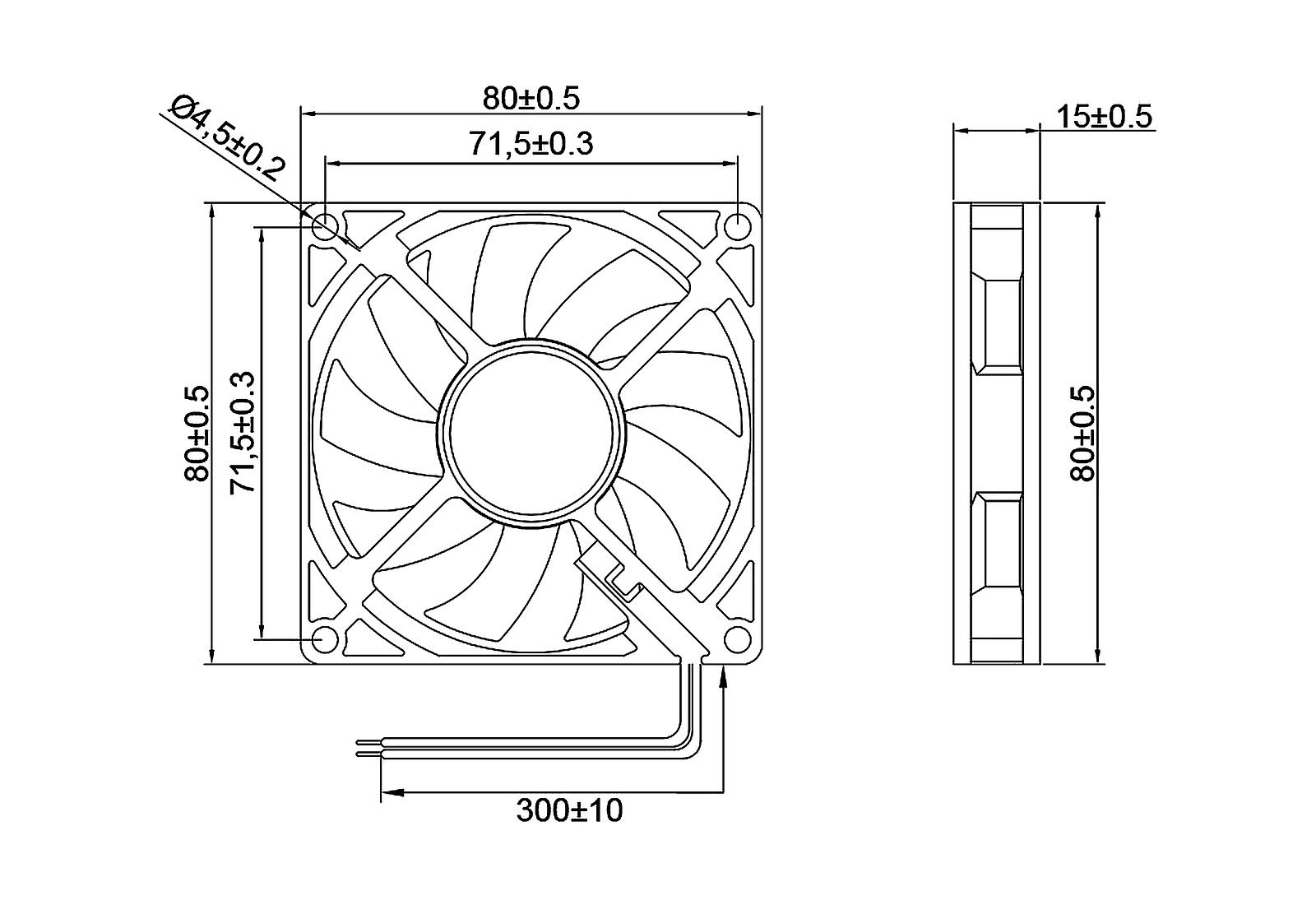

Dimension Drawing

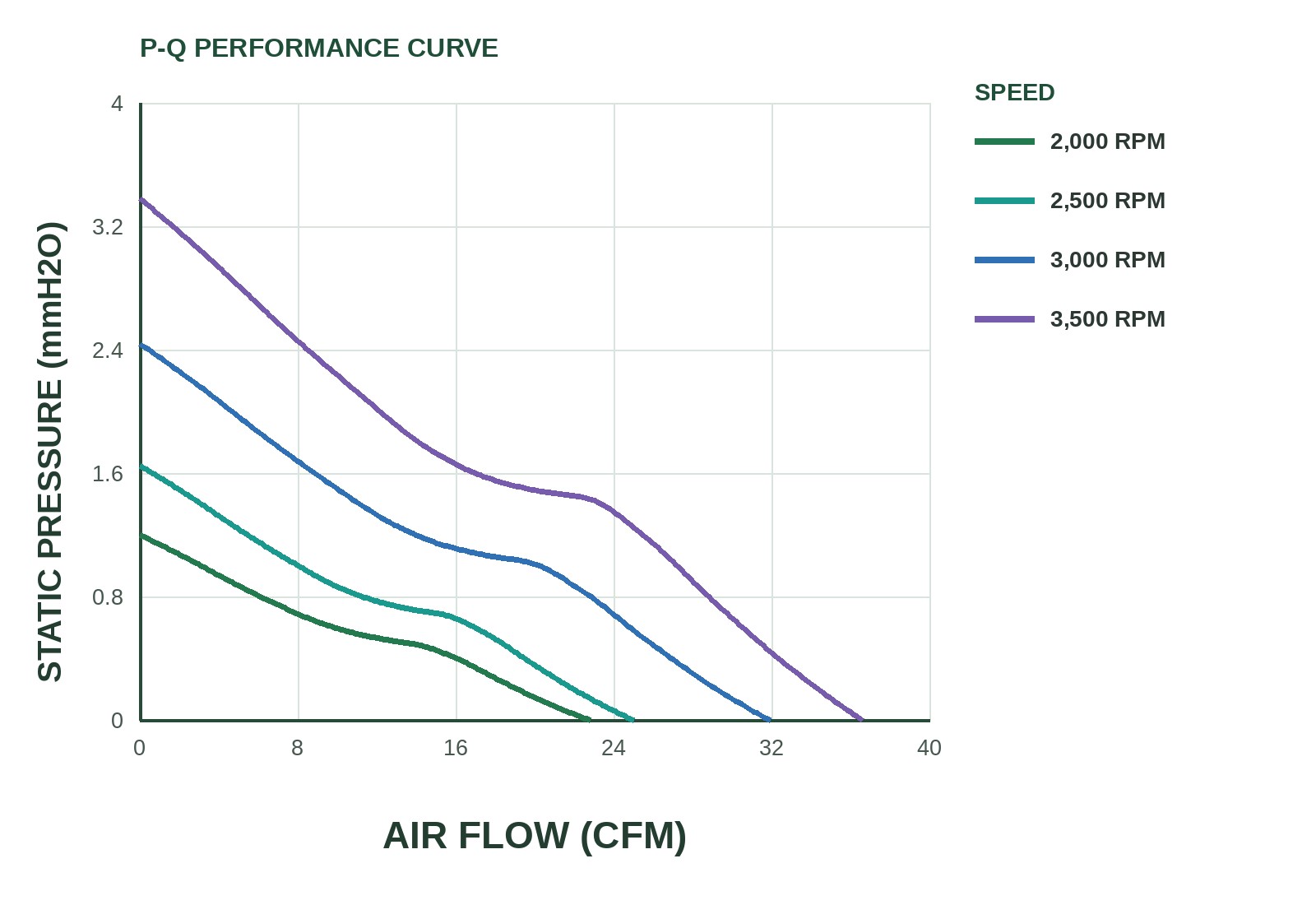

P&Q Curve
