DC Fan
MFD3010D
: 30 x 30 x 10 mm
Airflow
2.2~4.5 CFM
Speed
5000~11000 RPM
Noise
20.8~34 dB(A)
Product Specifications
| Size | : 30 x 30 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3010DD05-L | 5 | 1.8 ~ 6 | 0.05 | 0.24 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010DD05-L | M | 1.8 ~ 6 | 0.07 | 0.36 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010DD05-M | 5 | 1.8 ~ 6 | 0.1 | 0.48 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010DD05-L | H 5 | 1.8 ~ 6 | 0.1 | 0.5 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010DD05-H | 5 | 1.8 ~ 6 | 0.14 | 0.72 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010DD05-H | L | 1.8 ~ 6 | 0.17 | 0.84 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010DD05-H | H | 1.8 ~ 6 | 0.22 | 1.08 | 11000 | 4.49 | 6.05 | 34 |
| MFD3010DD1-L | 12 | 8.5 ~ 13.5 | 0.02 | 0.24 | 5000 | 2.21 | 1.49 | 20.8 |
| MFD3010DD1-LM | 12 | 8.5 ~ 13.5 | 0.03 | 0.36 | 6000 | 2.39 | 1.98 | 22.7 |
| MFD3010DD1-M | 12 | 8.5 ~ 13.5 | 0.04 | 0.48 | 7000 | 2.55 | 2.72 | 24 |
| MFD3010DD1-LH | 12 | 8.5 ~ 13.5 | 0.05 | 0.6 | 8000 | 3.33 | 3.55 | 26.5 |
| MFD3010DD1-H | 12 | 8.5 ~ 13.5 | 0.06 | 0.72 | 9000 | 3.63 | 4.09 | 28.8 |
| MFD3010DD1-HL | 12 | 8.5 ~ 13.5 | 0.07 | 0.84 | 10000 | 3.99 | 4.94 | 30.4 |
| MFD3010DD1-HH | 12 | 8.5 ~ 13.5 | 0.09 | 1.08 | 11000 | 4.49 | 6.05 | 34 |

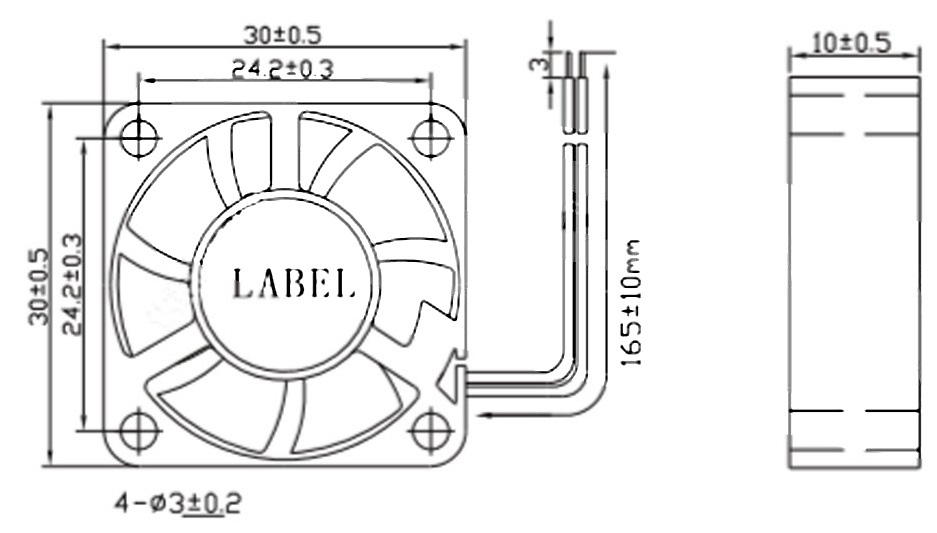

Dimension Drawing

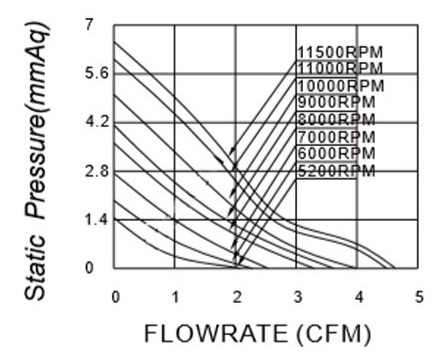

P&Q Curve
