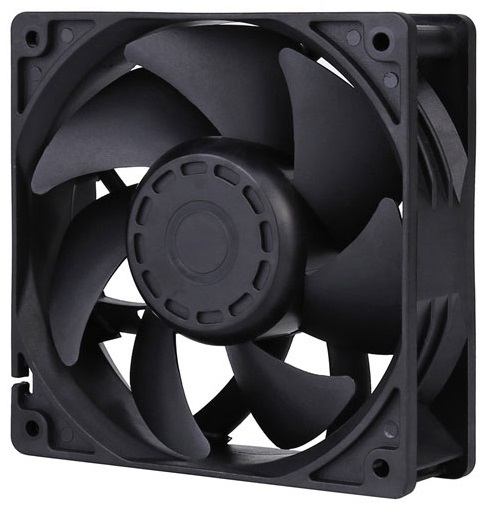

DC Fan
MFD12038
120 x 120 x 38mm
Airflow
96.5~311.7 CFM
Speed
2500~11000 RPM
Noise
43.4~77.3 dB(A)
Product Specifications
| Size | 120 x 120 x 38mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD12038D1-HB | 12 | 0.7 | 8.4 | 4000 | 152.89 | 15.46 | 54.5 | Ball |
| MFD12038D1-HHB | 12 | 1.3 | 15.6 | 4500 | 169.37 | 19.73 | 58.1 | Ball |
| MFD12038D1-HVB | 12 | 2.1 | 25.2 | 5500 | 209.92 | 29.28 | 65.2 | Ball |
| MFD12038D1-LB | 12 | 0.2 | 2.4 | 2500 | 96.55 | 5.91 | 43.4 | Ball |
| MFD12038D1-LS | 12 | 0.2 | 2.4 | 2500 | 96.55 | 5.91 | 43.4 | Sleeve |
| MFD12038D1-MB | 12 | 0.33 | 3.96 | 3000 | 111.26 | 8.66 | 47.7 | Ball |
| MFD12038D1-MS | 12 | 0.33 | 3.96 | 3000 | 111.26 | 8.66 | 47.7 | Sleeve |
| MFD12038D1-VHB | 12 | 0.8 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 | Ball |
| MFD12038D1-VMB | 12 | 0.47 | 5.64 | 3500 | 132.14 | 11.94 | 52.8 | Ball |
| MFD12038BD1-HB | 12 | 1.9 | 22.8 | 4000 | 179.8 | 18.15 | 62.4 | Ball |
| MFD12038BD1-HHB | 12 | 2.4 | 28.8 | 4500 | 200.78 | 22.96 | 66.7 | Ball |
| MFD12038BD1-HVB | 12 | 3 | 36 | 5500 | 248.46 | 33.14 | 71.9 | Ball |
| MFD12038BD1-LB | 12 | 0.35 | 4.2 | 2500 | 108.28 | 7.16 | 52.4 | Ball |
| MFD12038BD1-MB | 12 | 0.85 | 10.2 | 3000 | 131.62 | 10.43 | 56 | Ball |
| MFD12038BD1-VHB | 12 | 2.8 | 33.6 | 5000 | 225.59 | 28.02 | 69.8 | Ball |
| MFD12038BD1-VMB | 12 | 1.38 | 16.6 | 3500 | 157.4 | 14.2 | 57.6 | Ball |
| MFD12038DD1-HB | 12 | 1.3 | 15.6 | 4700 | 182.6 | 21.08 | 59 | Ball |
| MFD12038DD1-HHB | 12 | 1.5 | 18 | 5000 | 188.9 | 23.88 | 60 | Ball |
| MFD12038DD1-HVB | 12 | 2.5 | 30 | 6400 | 243.6 | 37.85 | 66 | Ball |
| MFD12038DD1-MB | 12 | 0.9 | 10.8 | 3800 | 141.2 | 15.24 | 53 | Ball |
| MFD12038DD1-VHB | 12 | 1.9 | 22.8 | 5700 | 215.7 | 29.21 | 63 | Ball |
| MFD12038FD1-HB | 12 | 2.5 | 30 | 7500 | 236.48 | 43.45 | 77.3 | Ball |
| MFD12038HD1-HB | 12 | 1.25 | 15 | 4100 | 190.48 | 17.64 | 55.5 | Ball |
| MFD12038HD1-HHB | 12 | 1.8 | 21.6 | 4600 | 212.57 | 21.43 | 58.5 | Ball |
| MFD12038HD1-HVB | 12 | 2.45 | 29.4 | 5200 | 240.96 | 27.48 | 62 | Ball |
| MFD12038QD1-HB | 12 | 0.74 | 8.88 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD1-HHB | 12 | 1.3 | 15.6 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD1-HVB | 12 | 1.8 | 21.6 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD1-LB | 12 | 0.4 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD1-LS | 12 | 0.4 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD1-MB | 12 | 0.5 | 6 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD1-VHB | 12 | 1.4 | 16.8 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD1-VMB | 12 | 0.52 | 6.24 | 4000 | 142.97 | 13.81 | 52.8 | Ball |
| MFD12038D2-HB | 24 | 0.45 | 10.8 | 4000 | 152.89 | 15.46 | 54.5 | Ball |
| MFD12038D2-HHB | 24 | 0.6 | 14.4 | 4500 | 169.37 | 19.73 | 58.1 | Ball |
| MFD12038D2-HVB | 24 | 0.9 | 21.6 | 5500 | 209.92 | 29.28 | 65.2 | Ball |
| MFD12038D2-LB | 24 | 0.13 | 3.12 | 2500 | 96.55 | 5.91 | 43.4 | Ball |
| MFD12038D2-LS | 24 | 0.13 | 3.12 | 2500 | 96.55 | 5.91 | 43.4 | Sleeve |
| MFD12038D2-MB | 24 | 0.18 | 4.32 | 3000 | 111.26 | 8.66 | 47.7 | Ball |
| MFD12038D2-MS | 24 | 0.18 | 4.32 | 3000 | 111.26 | 8.66 | 47.7 | Sleeve |
| MFD12038D2-VHB | 24 | 0.7 | 16.8 | 5000 | 189.97 | 24.4 | 62.1 | Ball |
| MFD12038D2-VMB | 24 | 0.3 | 7.2 | 3500 | 132.14 | 11.94 | 52.8 | Ball |
| MFD12038BD2-HB | 24 | 0.95 | 22.8 | 4000 | 179.8 | 18.15 | 62.4 | Ball |
| MFD12038BD2-HHB | 24 | 1.2 | 28.8 | 4500 | 200.78 | 22.96 | 66.7 | Ball |
| MFD12038BD2-HVB | 24 | 1.85 | 44.4 | 5500 | 248.46 | 33.14 | 71.9 | Ball |
| MFD12038BD2-LB | 24 | 0.18 | 4.2 | 2500 | 108.28 | 7.16 | 52.4 | Ball |
| MFD12038BD2-MB | 24 | 0.43 | 10.2 | 3000 | 131.62 | 10.43 | 56 | Ball |
| MFD12038BD2-VHB | 24 | 1.4 | 33.6 | 5000 | 225.59 | 28.02 | 69.8 | Ball |
| MFD12038BD2-VMB | 24 | 0.7 | 16.6 | 3500 | 157.4 | 14.2 | 57.6 | Ball |
| MFD12038DD2-HB | 24 | 0.74 | 17.6 | 4700 | 182.6 | 21.08 | 59 | Ball |
| MFD12038DD2-HHB | 24 | 0.88 | 21.2 | 5000 | 188.9 | 23.88 | 60 | Ball |
| MFD12038DD2-HVB | 24 | 1.48 | 35.52 | 6400 | 243.6 | 37.85 | 66 | Ball |
| MFD12038DD2-MB | 24 | 0.45 | 10.8 | 3800 | 141.2 | 15.24 | 53 | Ball |
| MFD12038DD2-VHB | 24 | 1.04 | 24.96 | 5700 | 215.7 | 29.21 | 63 | Ball |
| MFD12038ED2-HB | 24 | 3.4 | 81.6 | 11000 | 311.68 | 162.89 | 70.8 | Ball |
| MFD12038FD2-HB | 24 | 1.25 | 30 | 7500 | 236.48 | 43.45 | 77.3 | Ball |
| MFD12038HD2-HB | 24 | 0.62 | 14.88 | 4100 | 190.48 | 17.64 | 55.5 | Ball |
| MFD12038HD2-HHB | 24 | 0.85 | 20.4 | 4600 | 212.57 | 21.43 | 58.5 | Ball |
| MFD12038HD2-HVB | 24 | 1.3 | 29.4 | 5200 | 240.96 | 27.48 | 62 | Ball |
| MFD12038QD2-HB | 24 | 0.45 | 10.8 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD2-HHB | 24 | 0.65 | 15.6 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD2-HVB | 24 | 0.9 | 21.6 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD2-LB | 24 | 0.2 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD2-LS | 24 | 0.2 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD2-MB | 24 | 0.25 | 6 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD2-VHB | 24 | 0.85 | 20.4 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD2-VMB | 24 | 0.35 | 8.4 | 4000 | 142.97 | 13.81 | 52.8 | Ball |
| MFD12038D4-HB | 48 | 0.27 | 12.9 | 4000 | 152.89 | 15.46 | 54.5 | Ball |
| MFD12038D4-HHB | 48 | 0.3 | 14.4 | 4500 | 169.37 | 19.73 | 58.1 | Ball |
| MFD12038D4-HVB | 48 | 0.5 | 24 | 5500 | 209.92 | 29.28 | 65.2 | Ball |
| MFD12038D4-LB | 48 | 0.08 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 | Ball |
| MFD12038D4-LS | 48 | 0.08 | 3.6 | 2500 | 96.55 | 5.91 | 43.4 | Sleeve |
| MFD12038D4-MB | 48 | 0.12 | 5.76 | 3000 | 111.26 | 8.66 | 47.7 | Ball |
| MFD12038D4-MS | 48 | 0.12 | 5.76 | 3000 | 111.26 | 8.66 | 47.7 | Sleeve |
| MFD12038D4-VHB | 48 | 0.45 | 21.6 | 5000 | 189.97 | 24.4 | 62.1 | Ball |
| MFD12038D4-VMB | 48 | 0.19 | 9.12 | 3500 | 132.14 | 11.94 | 52.8 | Ball |
| MFD12038BD4-HB | 48 | 0.48 | 22.8 | 4000 | 179.8 | 18.15 | 62.4 | Ball |
| MFD12038BD4-HHB | 48 | 0.6 | 28.8 | 4500 | 200.78 | 22.96 | 66.7 | Ball |
| MFD12038BD4-HVB | 48 | 0.75 | 36 | 5500 | 248.46 | 33.14 | 71.9 | Ball |
| MFD12038BD4-LB | 48 | 0.09 | 4.2 | 2500 | 108.28 | 7.16 | 52.4 | Ball |
| MFD12038BD4-MB | 48 | 0.21 | 10.2 | 3000 | 131.62 | 10.43 | 56 | Ball |
| MFD12038BD4-VHB | 48 | 0.7 | 33.6 | 5000 | 225.59 | 28.02 | 69.8 | Ball |
| MFD12038BD4-VMB | 48 | 0.35 | 16.6 | 3500 | 157.4 | 14.2 | 57.6 | Ball |
| MFD12038DD4-HB | 48 | 0.39 | 18.72 | 4700 | 182.6 | 21.08 | 59 | Ball |
| MFD12038DD4-HHB | 48 | 0.44 | 21.12 | 5000 | 188.9 | 23.88 | 60 | Ball |
| MFD12038DD4-HVB | 48 | 0.7 | 33.6 | 6400 | 243.6 | 37.85 | 66 | Ball |
| MFD12038DD4-MB | 48 | 0.23 | 11.04 | 3800 | 141.2 | 15.24 | 53 | Ball |
| MFD12038DD4-VHB | 48 | 0.55 | 26.4 | 5700 | 215.7 | 29.21 | 63 | Ball |
| MFD12038ED4-HB | 48 | 1.7 | 81.6 | 11000 | 311.68 | 162.89 | 70.8 | Ball |
| MFD12038HD4-HB | 48 | 0.31 | 14.88 | 4100 | 190.48 | 17.64 | 55.5 | Ball |
| MFD12038HD4-HHB | 48 | 0.85 | 20.4 | 4600 | 212.57 | 21.43 | 58.5 | Ball |
| MFD12038HD4-HVB | 48 | 0.6 | 28.8 | 5200 | 240.96 | 27.48 | 62 | Ball |
| MFD12038QD4-HB | 48 | 0.23 | 11.04 | 4500 | 162.93 | 17.23 | 56.6 | Ball |
| MFD12038QD4-HHB | 48 | 0.33 | 15.84 | 5000 | 181.61 | 21.11 | 59.4 | Ball |
| MFD12038QD4-HVB | 48 | 0.67 | 32 | 6000 | 217.62 | 29.65 | 63.5 | Ball |
| MFD12038QD4-LB | 48 | 0.1 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Ball |
| MFD12038QD4-LS | 48 | 0.1 | 4.8 | 3000 | 110.99 | 8.58 | 45.7 | Sleeve |
| MFD12038QD4-MB | 48 | 0.13 | 6.24 | 3500 | 124.92 | 10.8 | 49.3 | Ball |
| MFD12038QD4-VHB | 48 | 0.6 | 28.8 | 5500 | 201.17 | 25.61 | 62.6 | Ball |
| MFD12038QD4-VMB | 48 | 0.18 | 8.64 | 4000 | 142.97 | 13.81 | 52.8 | Ball |

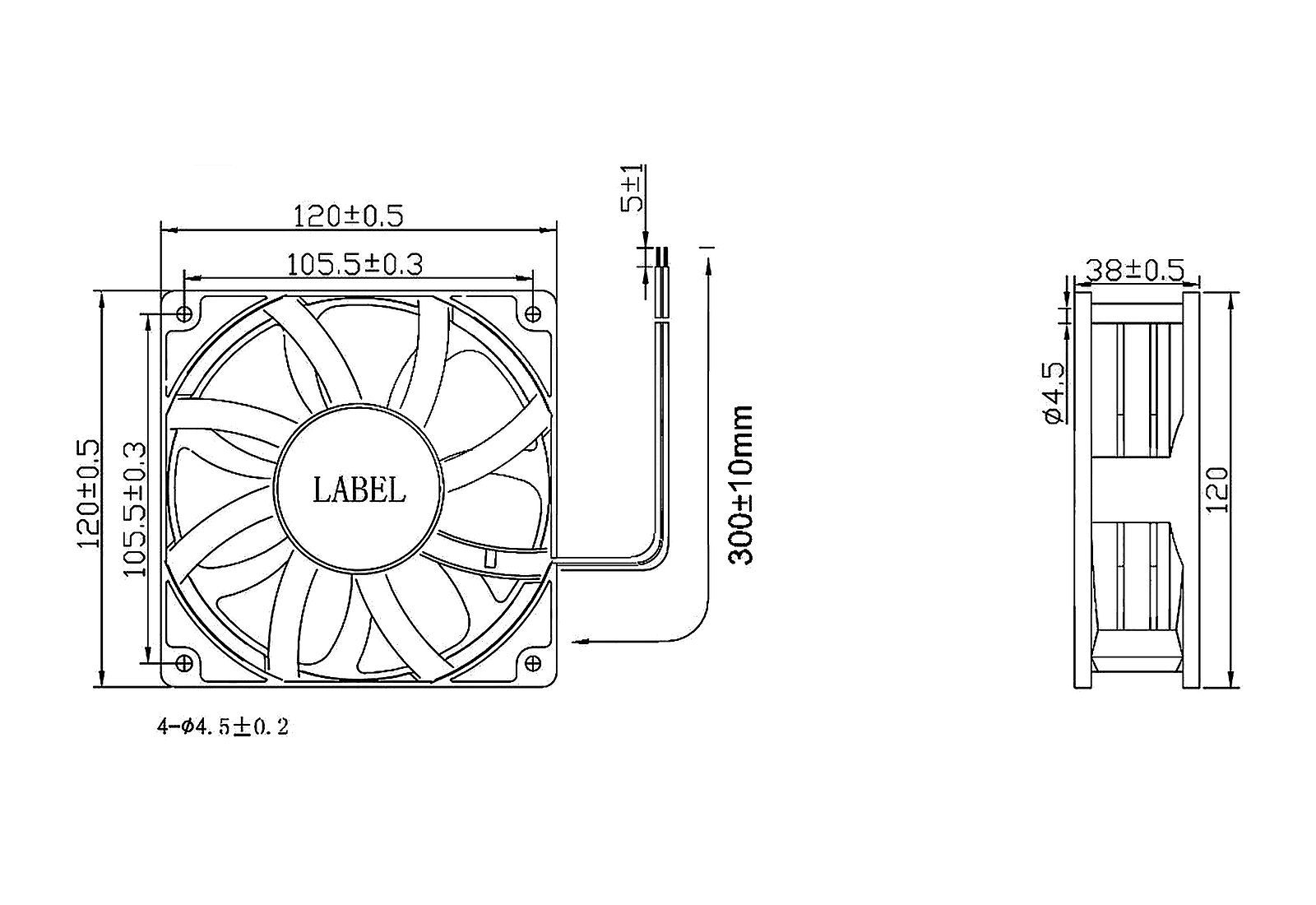

Dimension Drawing

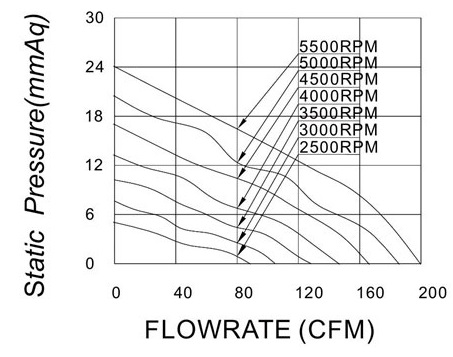

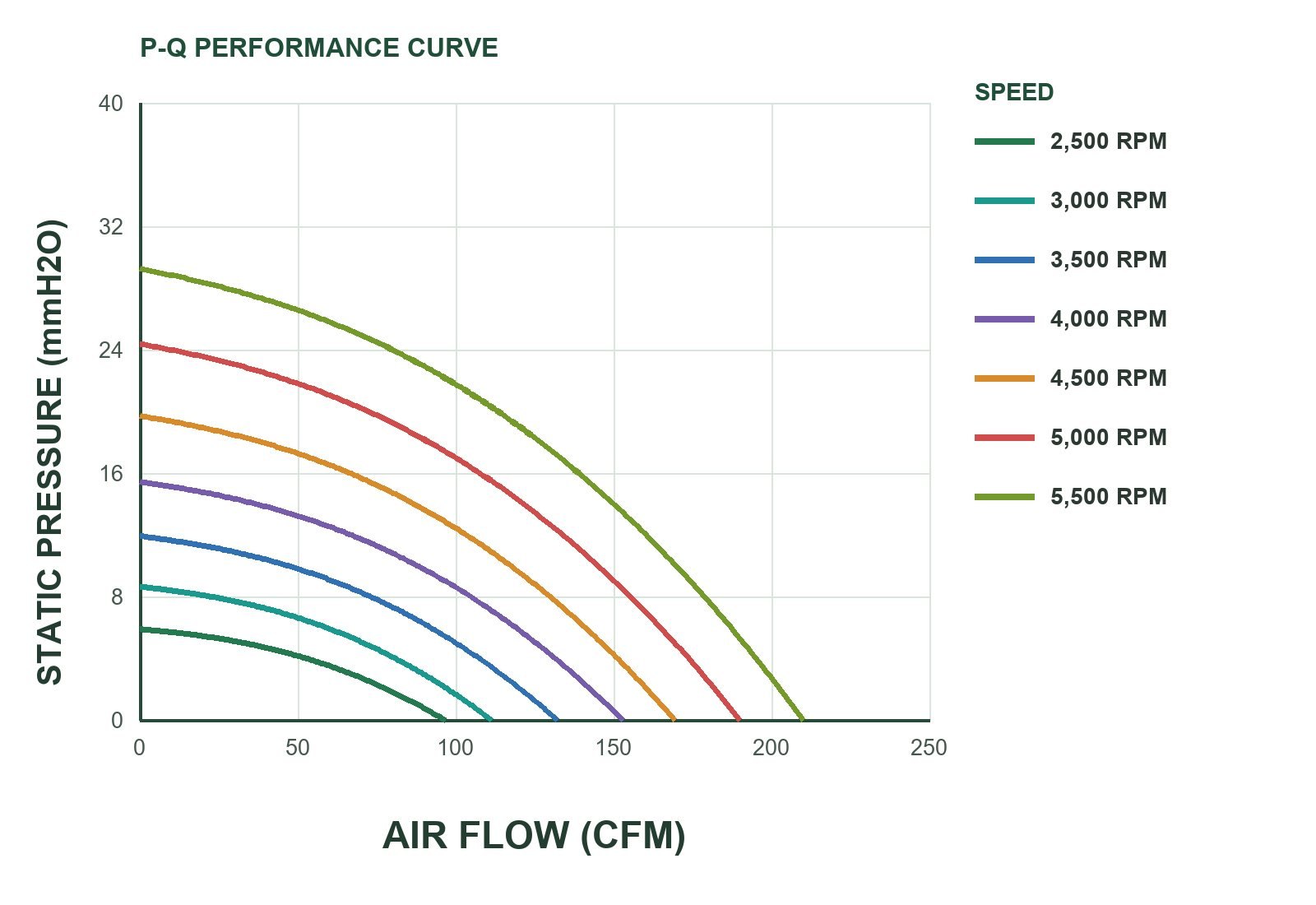

P&Q Curve
