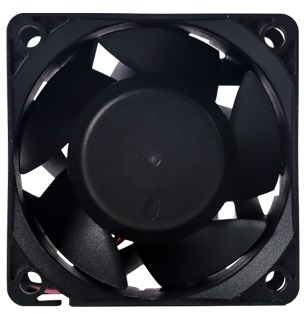

DC Fan
MFD6038C
: 60 x 60 x 38mm
Airflow
52.0~65.3 CFM
Speed
12000~16000 RPM
Noise
61.8~70.8 dB(A)
Product Specifications
| Size | : 60 x 60 x 38mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD6038CD1-HB | 12 | 7 ~ 13.8 | 0.9 | 10.8 | 12000 | 52.04 | 48.51 | 61.8 |
| MFD6038CD1-LHB | 12 | 7 ~ 13.8 | 1 | 12 | 13000 | 55.89 | 55.9 | 63.7 |
| MFD6038CD1-HHB | 12 | 7 ~ 13.8 | 1.2 | 14.4 | 14000 | 60.25 | 64.98 | 64.7 |
| MFD6038CD1-VHB | 12 | 7 ~ 13.8 | 1.3 | 15.6 | 15000 | 64.29 | 77.37 | 68.8 |
| MFD6038CD1-HVB | 12 | 7 ~ 13.8 | 1.4 | 16.8 | 16000 | 65.34 | 83.69 | 70.8 |
| MFD6038CD2-HB | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 12000 | 52.04 | 48.51 | 61.8 |
| MFD6038CD2-LHB | 24 | 18 ~ 26.5 | 0.5 | 12 | 13000 | 55.89 | 55.9 | 63.7 |
| MFD6038CD2-HHB | 24 | 18 ~ 26.5 | 0.6 | 14.4 | 14000 | 60.25 | 64.98 | 64.7 |
| MFD6038CD2-VHB | 24 | 18 ~ 26.5 | 0.65 | 15.6 | 15000 | 64.29 | 77.37 | 68.8 |
| MFD6038CD2-HVB | 24 | 18 ~ 26.5 | 0.7 | 16.8 | 16000 | 65.34 | 83.69 | 70.8 |
| MFD6038CD4-HB | 48 | 36 ~ 54 | 0.225 | 10.8 | 12000 | 52.04 | 48.51 | 61.8 |
| MFD6038CD4-LHB | 48 | 36 ~ 54 | 0.25 | 12 | 13000 | 55.89 | 55.9 | 63.7 |
| MFD6038CD4-HHB | 48 | 36 ~ 54 | 0.3 | 14.4 | 14000 | 60.25 | 64.98 | 64.7 |
| MFD6038CD4-VHB | 48 | 36 ~ 54 | 0.325 | 15.6 | 15000 | 64.29 | 77.37 | 68.8 |
| MFD6038CD4-HVB | 48 | 36 ~ 54 | 0.35 | 16.8 | 16000 | 65.34 | 83.69 | 70.8 |

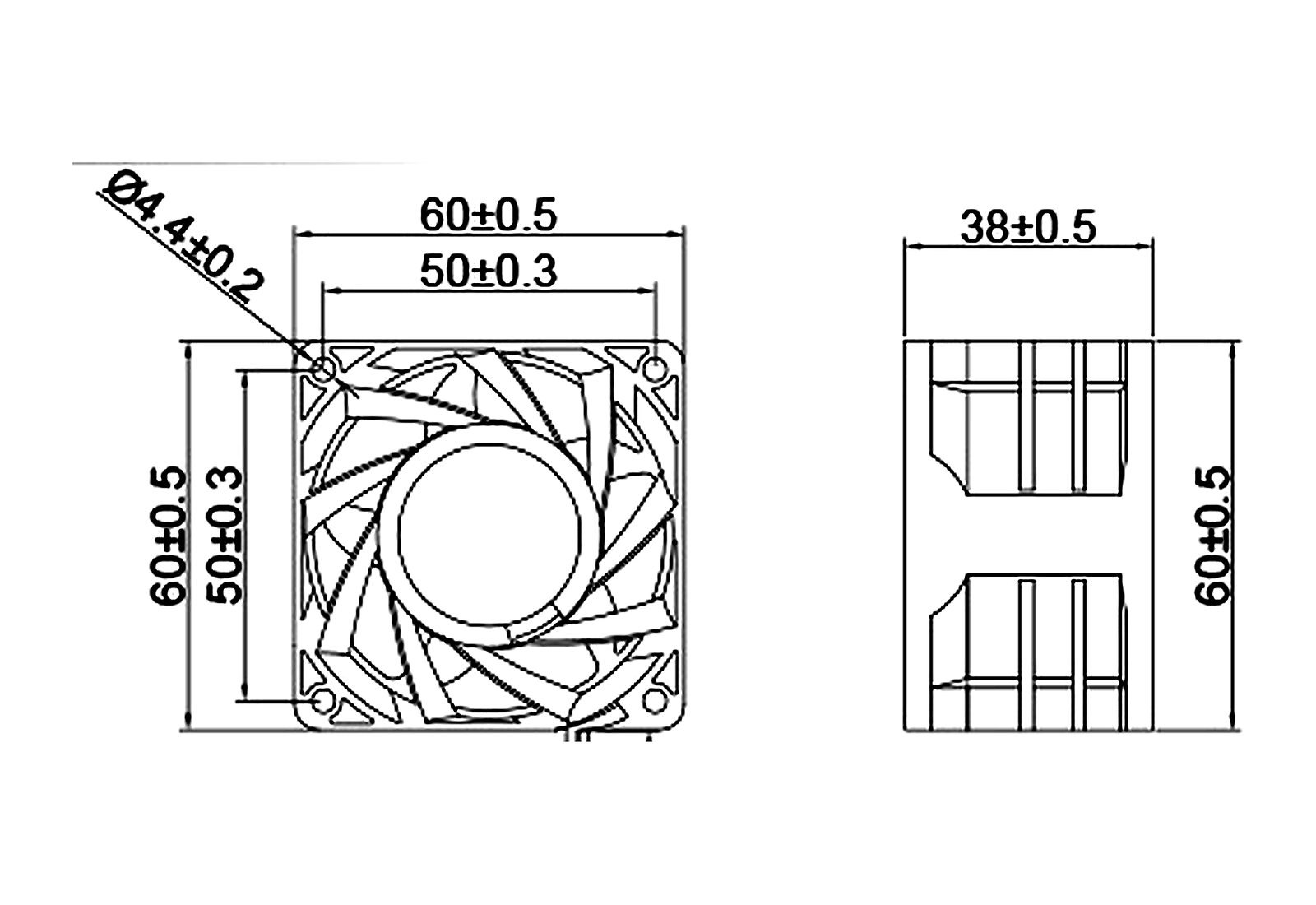

Dimension Drawing

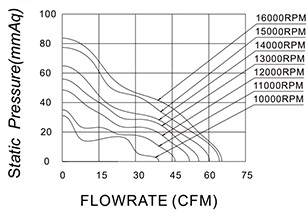

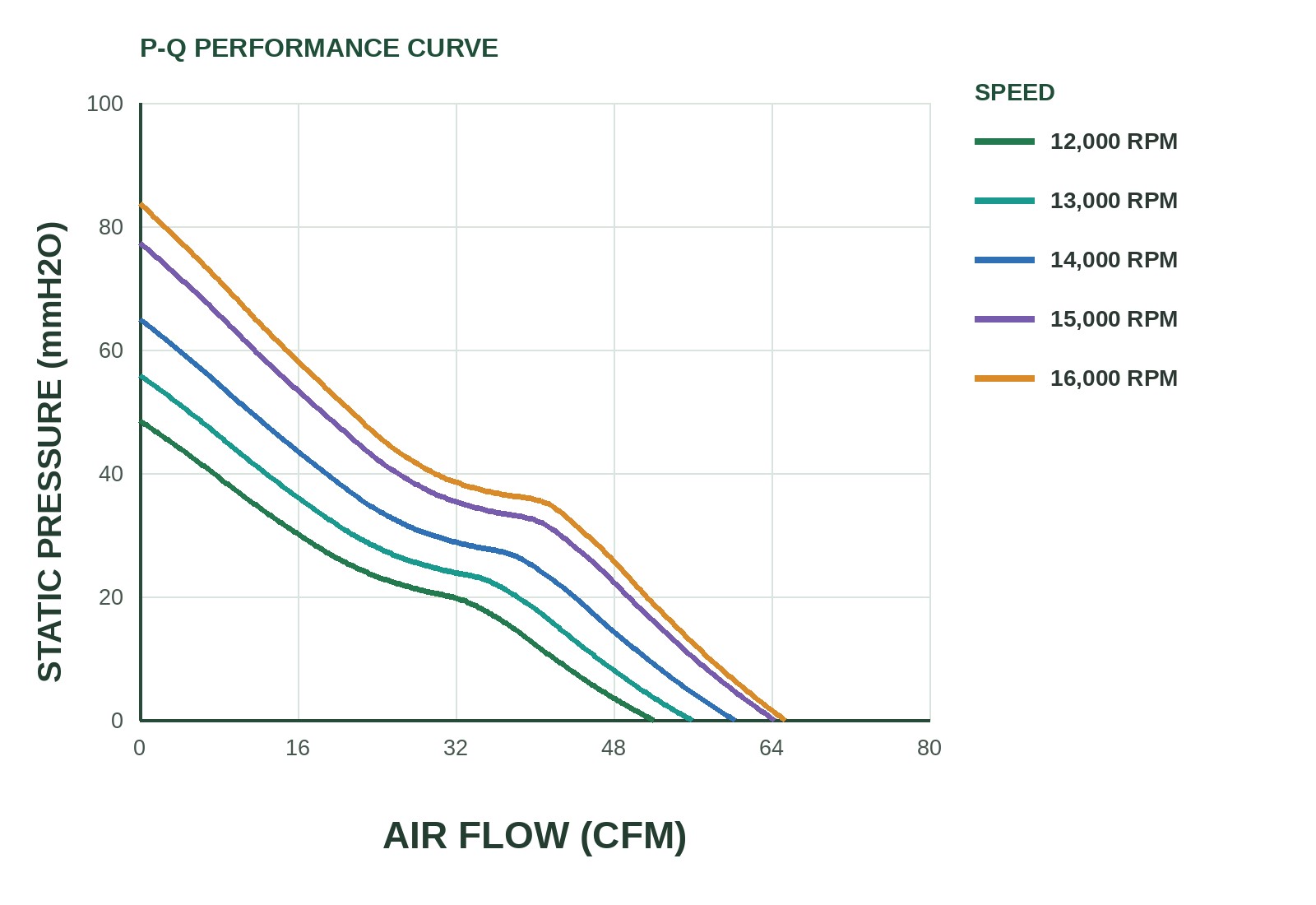

P&Q Curve
