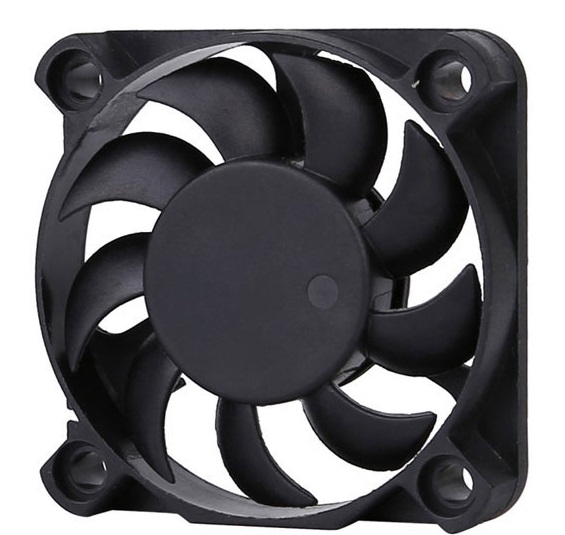

DC Fan
MFD5010D
: 50 x 50 x 10mm
Airflow
7.3~10.4 CFM
Speed
3500~5000 RPM
Noise
20.8~28.5 dB(A)
Product Specifications
| Size | : 50 x 50 x 10mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD5010DD05-HB | 5 | 3.5 ~ 5.5 | 0.21 | 1.05 | 5000 | 10.43 | 2.37 | 28.5 |
| MFD5010DD05-HS | 5 | 3.5 ~ 5.5 | 0.21 | 1.05 | 5000 | 10.43 | 2.37 | 28.5 |
| MFD5010DD05-LB | 5 | 3.5 ~ 5.5 | 0.11 | 0.55 | 3500 | 7.3 | 1.17 | 20.8 |
| MFD5010DD05-LS | 5 | 3.5 ~ 5.5 | 0.11 | 0.55 | 3500 | 7.3 | 1.17 | 20.8 |
| MFD5010DD05-MB | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 4500 | 9.42 | 2.27 | 26.1 |
| MFD5010DD05-MS | 5 | 3.5 ~ 5.5 | 0.16 | 0.8 | 4500 | 9.42 | 2.27 | 26.1 |
| MFD5010DD1-HB | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 5000 | 10.43 | 2.37 | 28.5 |
| MFD5010DD1-HS | 12 | 7 ~ 13.8 | 0.09 | 1.08 | 5000 | 10.43 | 2.37 | 28.5 |
| MFD5010DD1-LB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 3500 | 7.3 | 1.77 | 20.8 |
| MFD5010DD1-LS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 3500 | 7.3 | 1.77 | 20.8 |
| MFD5010DD1-MB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 4500 | 9.42 | 2.27 | 26.1 |
| MFD5010DD1-MS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 4500 | 9.42 | 2.27 | 26.1 |

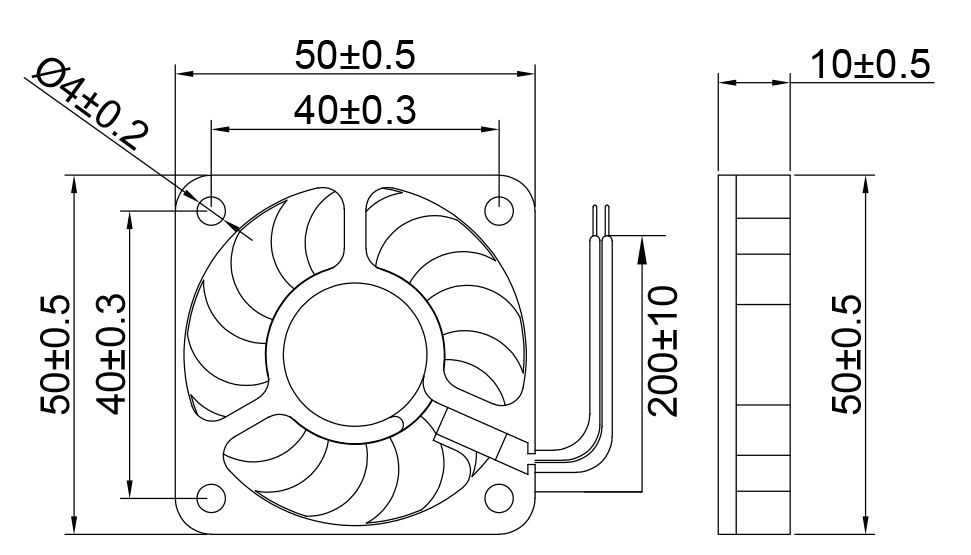

Dimension Drawing

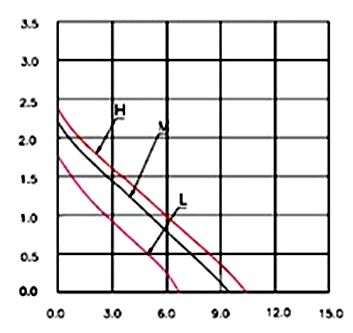

P&Q Curve
