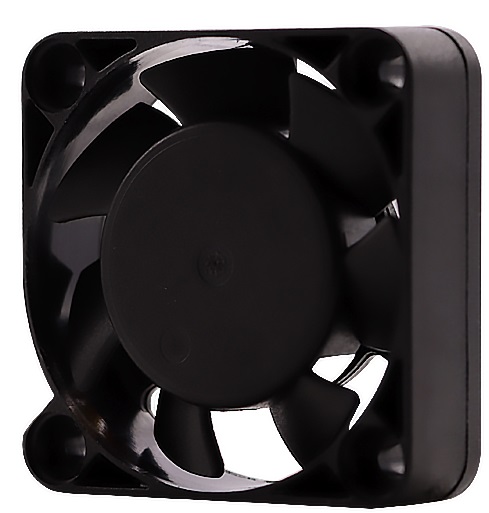

DC Fan
MFD4012
40 x 40 x 12mm
Airflow
3.9~7.0 CFM
Speed
4500~8500 RPM
Noise
24.6~39.5 dB(A)
Product Specifications
| Size | 40 x 40 x 12mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD4012D1-HB | 12 | 0.08 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 | Ball |
| MFD4012D1-HHB | 12 | 0.1 | 1.2 | 8000 | 6.51 | 5.26 | 38 | Ball |
| MFD4012D1-HHS | 12 | 0.1 | 1.2 | 8000 | 6.51 | 5.26 | 38 | Sleeve |
| MFD4012D1-HLB | 12 | 0.09 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 | Ball |
| MFD4012D1-HLS | 12 | 0.09 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 | Sleeve |
| MFD4012D1-HS | 12 | 0.08 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 | Sleeve |
| MFD4012D1-LB | 12 | 0.03 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 | Ball |
| MFD4012D1-LMB | 12 | 0.05 | 0.6 | 5500 | 4.83 | 3.3 | 30 | Ball |
| MFD4012D1-LMS | 12 | 0.05 | 0.6 | 5500 | 4.83 | 3.3 | 30 | Sleeve |
| MFD4012D1-LS | 12 | 0.03 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 | Sleeve |
| MFD4012D1-LVB | 12 | 0.04 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 | Ball |
| MFD4012D1-LVS | 12 | 0.04 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 | Sleeve |
| MFD4012D1-MB | 12 | 0.07 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 | Ball |
| MFD4012D1-MLB | 12 | 0.06 | 0.72 | 6000 | 5.16 | 3.43 | 31 | Ball |
| MFD4012D1-MLS | 12 | 0.06 | 0.72 | 6000 | 5.16 | 3.43 | 31 | Sleeve |
| MFD4012D1-MS | 12 | 0.07 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 | Sleeve |
| MFD4012D1-VHB | 12 | 0.11 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 | Ball |
| MFD4012D1-VHS | 12 | 0.11 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 | Sleeve |
| MFD4012D05-HB | 5 | 0.19 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 | Ball |
| MFD4012D05-HHB | 5 | 0.24 | 1.2 | 8000 | 6.51 | 5.26 | 38 | Ball |
| MFD4012D05-HHS | 5 | 0.24 | 1.2 | 8000 | 6.51 | 5.26 | 38 | Sleeve |
| MFD4012D05-HLB | 5 | 0.22 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 | Ball |
| MFD4012D05-HLS | 5 | 0.22 | 1.08 | 7500 | 6.3 | 4.72 | 37.1 | Sleeve |
| MFD4012D05-HS | 5 | 0.19 | 0.96 | 7000 | 5.84 | 4.19 | 35.3 | Sleeve |
| MFD4012D05-LB | 5 | 0.072 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 | Ball |
| MFD4012D05-LMB | 5 | 0.12 | 0.6 | 5500 | 4.83 | 3.03 | 30 | Ball |
| MFD4012D05-LMS | 5 | 0.12 | 0.6 | 5500 | 4.83 | 3.03 | 30 | Sleeve |
| MFD4012D05-LS | 5 | 0.072 | 0.36 | 4500 | 3.93 | 2.09 | 24.6 | Sleeve |
| MFD4012D05-LVB | 5 | 0.096 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 | Ball |
| MFD4012D05-LVS | 5 | 0.096 | 0.48 | 5000 | 4.51 | 2.65 | 28.5 | Sleeve |
| MFD4012D05-MB | 5 | 0.168 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 | Ball |
| MFD4012D05-MLB | 5 | 0.144 | 0.72 | 6000 | 5.16 | 3.43 | 31 | Ball |
| MFD4012D05-MLS | 5 | 0.144 | 0.72 | 6000 | 5.16 | 3.43 | 31 | Sleeve |
| MFD4012D05-MS | 5 | 0.168 | 0.84 | 6500 | 5.35 | 3.81 | 33.4 | Sleeve |
| MFD4012D05-VHB | 5 | 0.26 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 | Ball |
| MFD4012D05-VHS | 5 | 0.26 | 1.32 | 8500 | 7.02 | 5.92 | 39.5 | Sleeve |

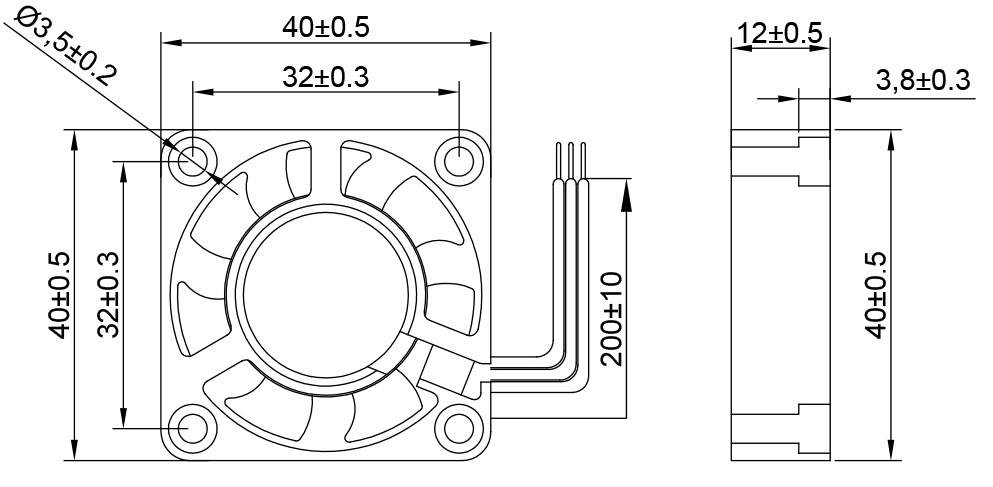

Dimension Drawing

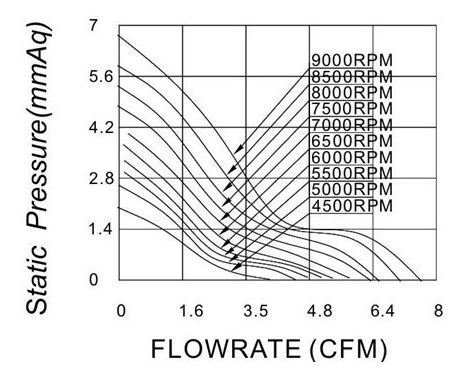

P&Q Curve
