DC Fan
MFD12038D
: 120 x 120 x 38mm
Airflow
141.2~243.6 CFM
Speed
3800~6400 RPM
Noise
53~66 dB(A)
Product Specifications
| Size | : 120 x 120 x 38mm |
| Voltage | 12V / 24V / 48V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12038DD1-MB | 12 | 7 ~ 13.8 | 0.9 | 10.8 | 3800 | 141.2 | 15.24 | 53 |
| MFD12038DD1-HB | 12 | 7 ~ 13.8 | 1.3 | 15.6 | 4700 | 182.6 | 21.08 | 59 |
| MFD12038DD1-HHB | 12 | 7 ~ 13.8 | 1.5 | 18 | 5000 | 188.9 | 23.88 | 60 |
| MFD12038DD1-VHB | 12 | 7 ~ 13.8 | 1.9 | 22.8 | 5700 | 215.7 | 29.21 | 63 |
| MFD12038DD1-HVB | 12 | 7 ~ 13.8 | 2.5 | 30 | 6400 | 243.6 | 37.85 | 66 |
| MFD12038DD2-MB | 24 | 18 ~ 26.5 | 0.45 | 10.8 | 3800 | 141.2 | 15.24 | 53 |
| MFD12038DD2-HB | 24 | 18 ~ 26.5 | 0.74 | 17.6 | 4700 | 182.6 | 21.08 | 59 |
| MFD12038DD2-HHB | 24 | 18 ~ 26.5 | 0.88 | 21.2 | 5000 | 188.9 | 23.88 | 60 |
| MFD12038DD2-VHB | 24 | 18 ~ 26.5 | 1.04 | 24.96 | 5700 | 215.7 | 29.21 | 63 |
| MFD12038DD2-HVB | 24 | 18 ~ 26.5 | 1.48 | 35.52 | 6400 | 243.6 | 37.85 | 66 |
| MFD12038DD4-MB | 48 | 36 ~ 54 | 0.23 | 11.04 | 3800 | 141.2 | 15.24 | 53 |
| MFD12038DD4-HB | 48 | 36 ~ 54 | 0.39 | 18.72 | 4700 | 182.6 | 21.08 | 59 |
| MFD12038DD4-HHB | 48 | 36 ~ 54 | 0.44 | 21.12 | 5000 | 188.9 | 23.88 | 60 |
| MFD12038DD4-VHB | 48 | 36 ~ 54 | 0.55 | 26.4 | 5700 | 215.7 | 29.21 | 63 |
| MFD12038DD4-HVB | 48 | 36 ~ 54 | 0.7 | 33.6 | 6400 | 243.6 | 37.85 | 66 |
Dimension Drawing

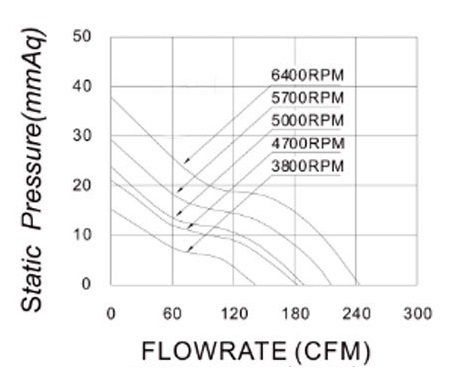

P&Q Curve
