DC Fan
MFD3007R
: Ø30 x 10 mm
Airflow
1.99~4.25 CFM
Speed
6000~13000 RPM
Noise
25.5~34.9 dB(A)
Product Specifications
| Size | : Ø30 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3007RD05-LB | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 6000 | 1.99 | 1.71 | 25.5 |
| MFD3007RD05-LS | 5 | 3.5 ~ 5.5 | 0.06 | 0.3 | 6000 | 1.99 | 1.71 | 25.5 |
| MFD3007RD05-MB | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 8000 | 2.66 | 2.7 | 27.4 |
| MFD3007RD05-MS | 5 | 3.5 ~ 5.5 | 0.08 | 0.4 | 8000 | 2.66 | 2.7 | 27.4 |
| MFD3007RD05-HB | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 10000 | 3.46 | 4.13 | 30.1 |
| MFD3007RD05-HS | 5 | 3.5 ~ 5.5 | 0.12 | 0.6 | 10000 | 3.46 | 4.13 | 30.1 |
| MFD3007RD05-HHB | 5 | 3.5 ~ 5.5 | 0.22 | 1.08 | 11000 | 3.78 | 4.94 | 32 |
| MFD3007RD05-HHS | 5 | 3.5 ~ 5.5 | 0.22 | 1.08 | 11000 | 3.78 | 4.94 | 32 |
| MFD3007RD05-VHB | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3007RD05-VHS | 5 | 3.5 ~ 5.5 | 0.24 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3007RD1-LB | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 6000 | 1.99 | 1.71 | 25.5 |
| MFD3007RD1-LS | 12 | 7 ~ 13.8 | 0.03 | 0.36 | 6000 | 1.99 | 1.71 | 25.5 |
| MFD3007RD1-MB | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 8000 | 2.66 | 2.7 | 27.4 |
| MFD3007RD1-MS | 12 | 7 ~ 13.8 | 0.04 | 0.48 | 8000 | 2.66 | 2.7 | 27.4 |
| MFD3007RD1-HB | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 10000 | 3.46 | 4.13 | 30.1 |
| MFD3007RD1-HS | 12 | 7 ~ 13.8 | 0.05 | 0.6 | 10000 | 3.46 | 4.13 | 30.1 |
| MFD3007RD1-HHB | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 11000 | 3.78 | 4.94 | 32 |
| MFD3007RD1-HHS | 12 | 7 ~ 13.8 | 0.07 | 0.84 | 11000 | 3.78 | 4.94 | 32 |
| MFD3007RD1-VHB | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
| MFD3007RD1-VHS | 12 | 7 ~ 13.8 | 0.1 | 1.2 | 13000 | 4.25 | 8.25 | 34.9 |
Dimension Drawing

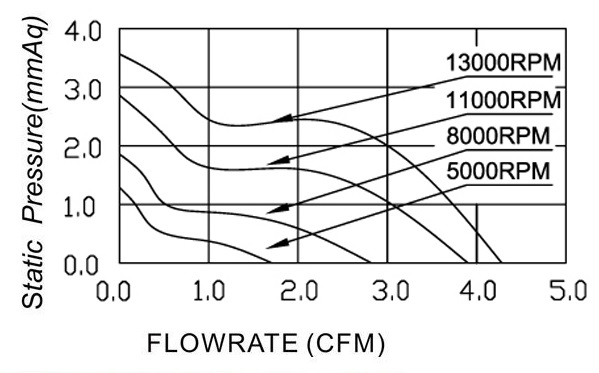

P&Q Curve
