DC Fan
MFD1504
: 15 x 15 x 4 mm
Airflow
0.4 CFM
Speed
16000 RPM
Noise
35 dB(A)
Product Specifications
| Size | : 15 x 15 x 4 mm |
| Voltage | 5V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Sleeve Bearing |
| Operating Temperature | Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD1504D05-HS | 5 | 3.5 ~ 5.5 | 0.04 | 2 | 16000 | 0.4 | 2.8 | 35 |

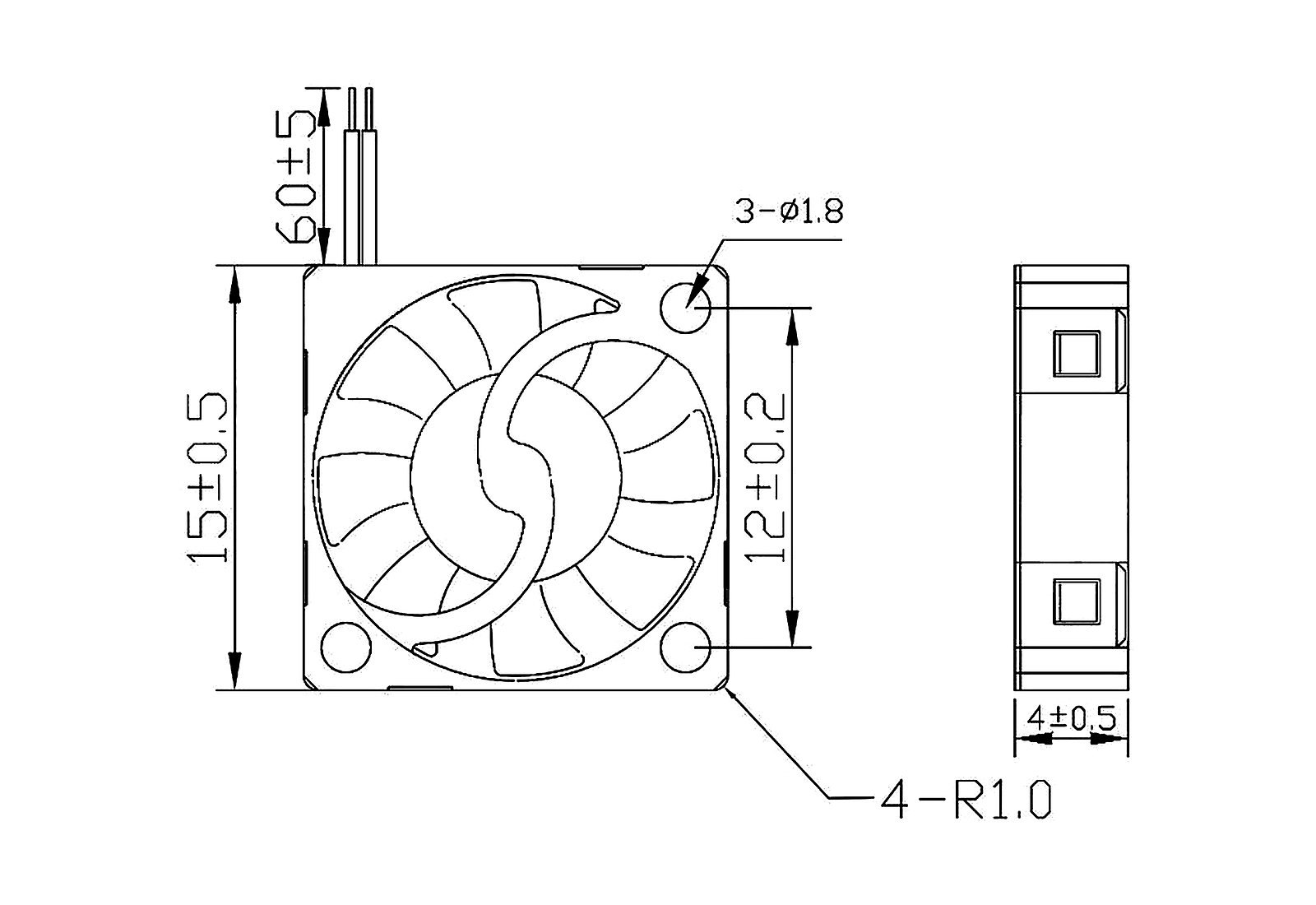

Dimension Drawing

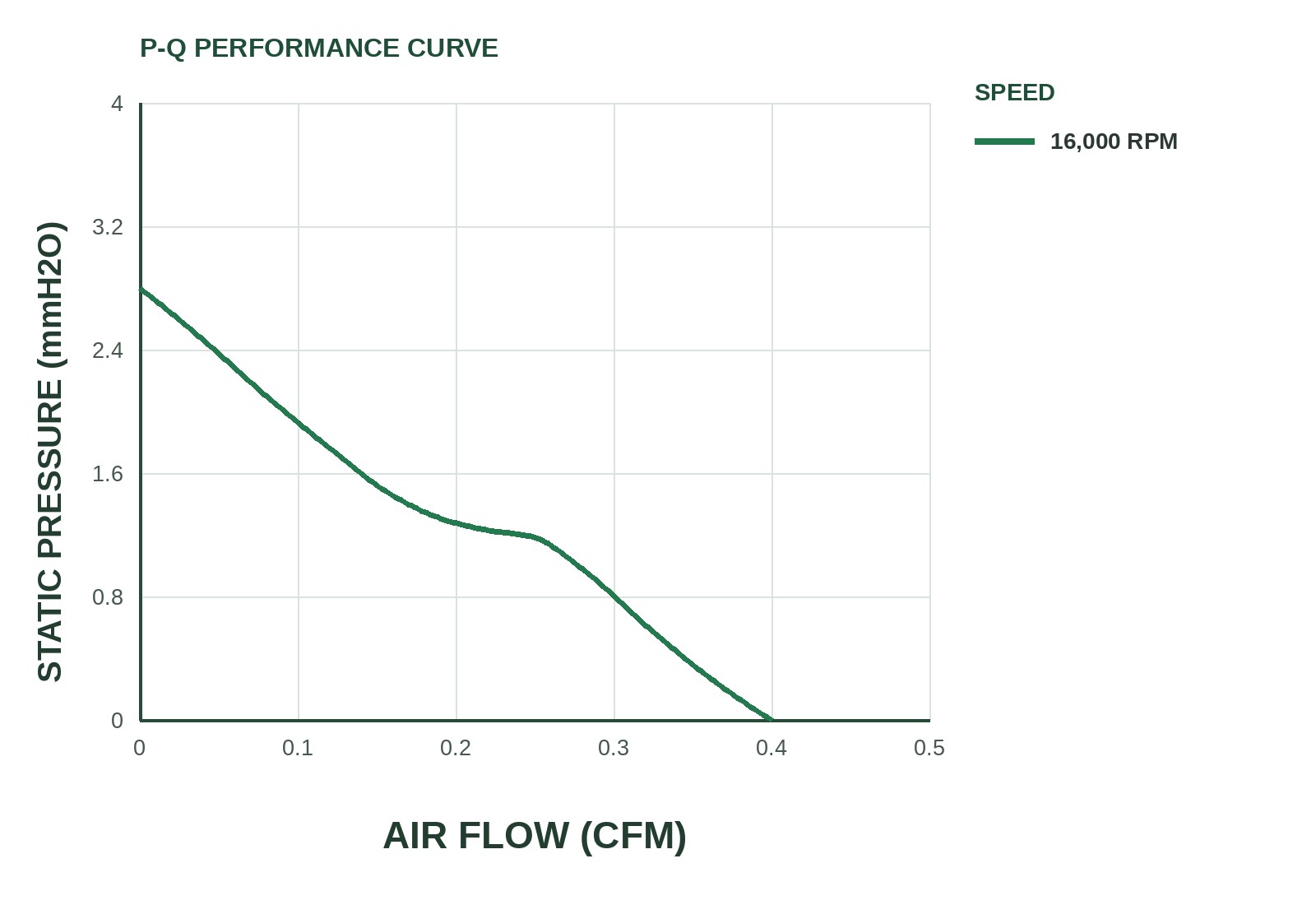

P&Q Curve
