DC Fan
MFD3510R
35 x 35 x10 mm
Airflow
2.8~8.7 CFM
Speed
7000~14000 RPM
Noise
28~44.7 dB(A)
Product Specifications
| Size | 35 x 35 x10 mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD3510RD05-M | 5 | 1.8 ~ 6 | 0.14 | 0.7 | 7000 | 3.91 | 2.84 | 28 |
| MFD3510RD05-ML | 5 | 1.8 ~ 6 | 0.16 | 0.8 | 8000 | 4.5 | 3.51 | 31 |
| MFD3510RD05-H | 5 | 1.8 ~ 6 | 0.18 | 0.9 | 9000 | 5 | 4.31 | 34.4 |
| MFD3510RD05-LH | 5 | 1.8 ~ 6 | 0.2 | 1 | 10000 | 5.32 | 5.12 | 37.1 |
| MFD3510RD05-HH | 5 | 1.8 ~ 6 | 0.22 | 1.1 | 11000 | 6.06 | 6.11 | 39.4 |
| MFD3510RD05-HL | 5 | 1.8 ~ 6 | 0.24 | 1.2 | 12000 | 6.39 | 6.77 | 41 |
| MFD3510RD05-VH | 5 | 1.8 ~ 6 | 0.26 | 1.3 | 13000 | 6.87 | 7.97 | 42.6 |
| MFD3510RD05-HV | 5 | 1.8 ~ 6 | 0.28 | 1.4 | 14000 | 7.41 | 8.74 | 44.7 |
| MFD3510RD1-M | 12 | 8.5 ~ 13.5 | 0.07 | 0.8 | 7000 | 2.84 | 2.84 | 28 |
| MFD3510RD1-ML | 12 | 8.5 ~ 13.5 | 0.08 | 0.9 | 8000 | 3.51 | 3.51 | 31 |
| MFD3510RD1-H | 12 | 8.5 ~ 13.5 | 0.08 | 1 | 9000 | 4.31 | 4.31 | 34.4 |
| MFD3510RD1-LH | 12 | 8.5 ~ 13.5 | 0.09 | 1.1 | 10000 | 5.12 | 5.12 | 37.1 |
| MFD3510RD1-HH | 12 | 8.5 ~ 13.5 | 0.1 | 1.2 | 11000 | 6.11 | 6.11 | 39.4 |
| MFD3510RD1-HL | 12 | 8.5 ~ 13.5 | 0.11 | 1.3 | 12000 | 6.77 | 6.77 | 41 |
| MFD3510RD1-VH | 12 | 8.5 ~ 13.5 | 0.13 | 1.5 | 13000 | 7.97 | 7.97 | 42.6 |
| MFD3510RD1-HV | 12 | 8.5 ~ 13.5 | 0.13 | 1.6 | 14000 | 8.74 | 8.74 | 44.7 |

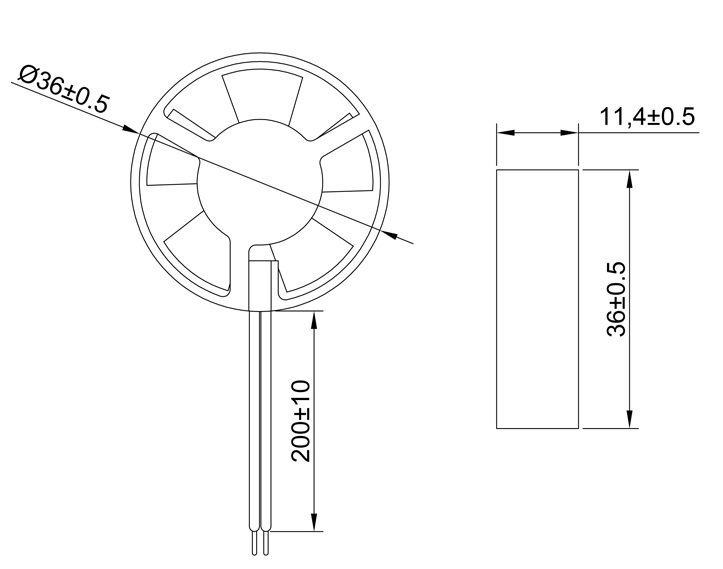

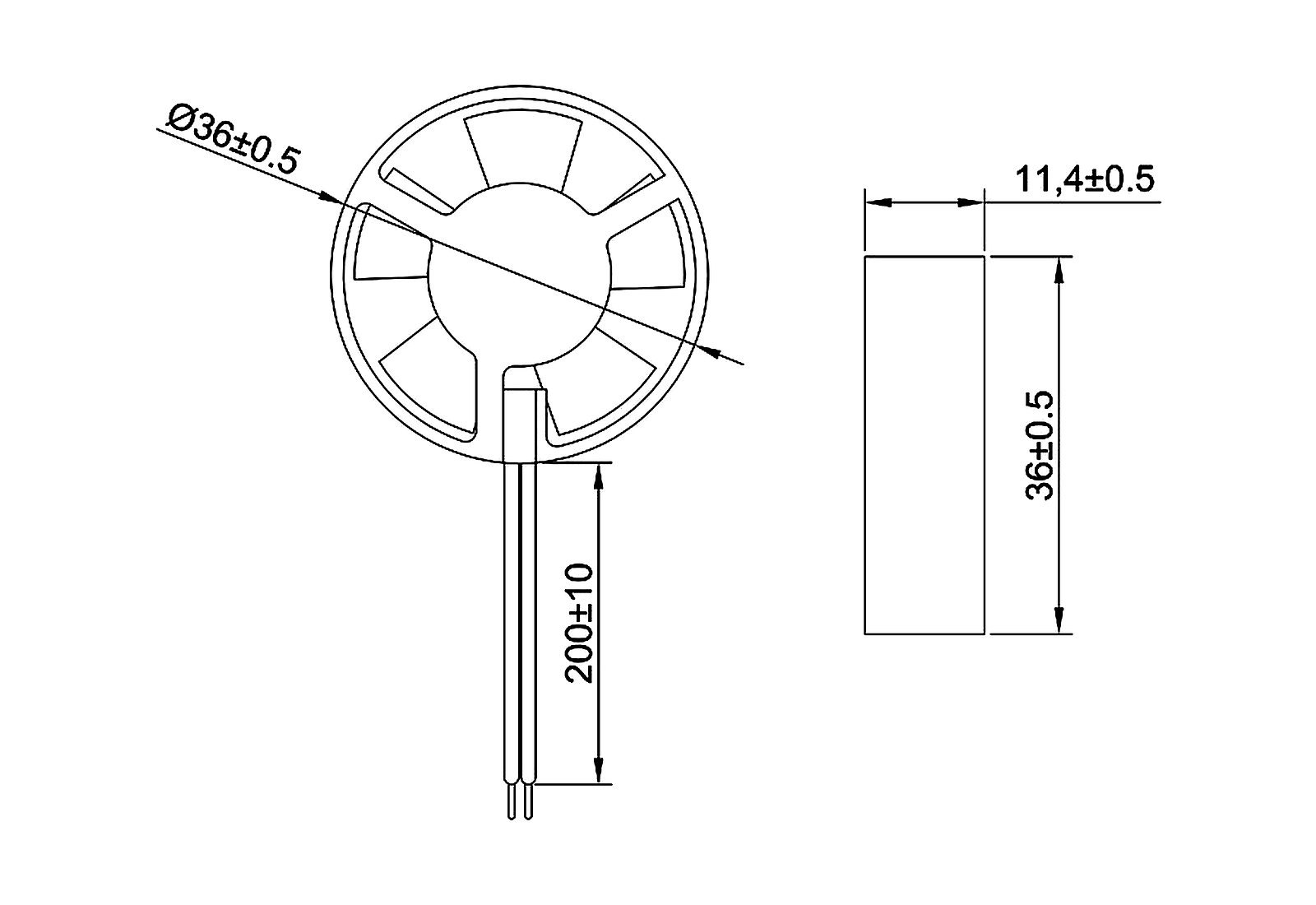

Dimension Drawing

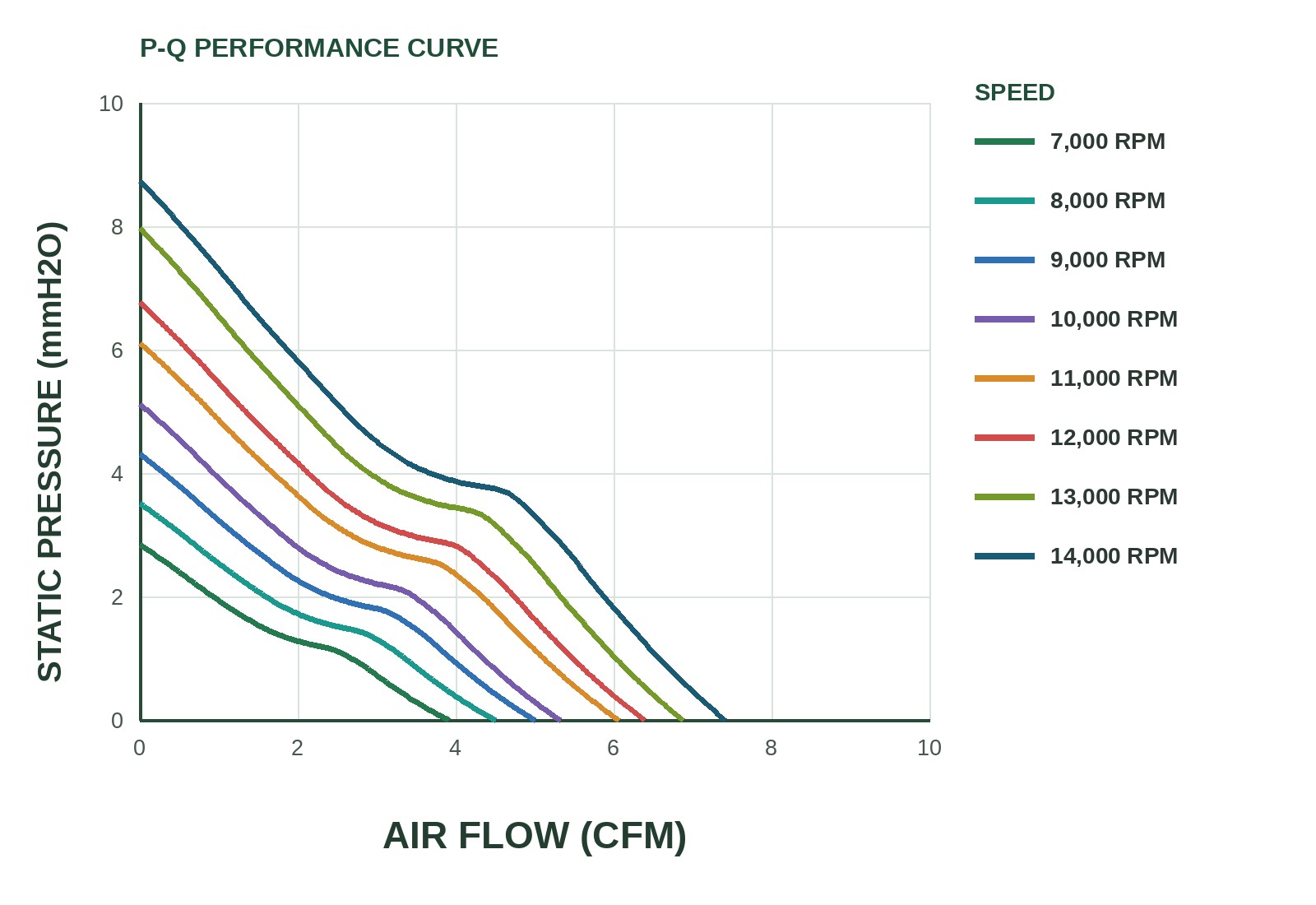

P&Q Curve
