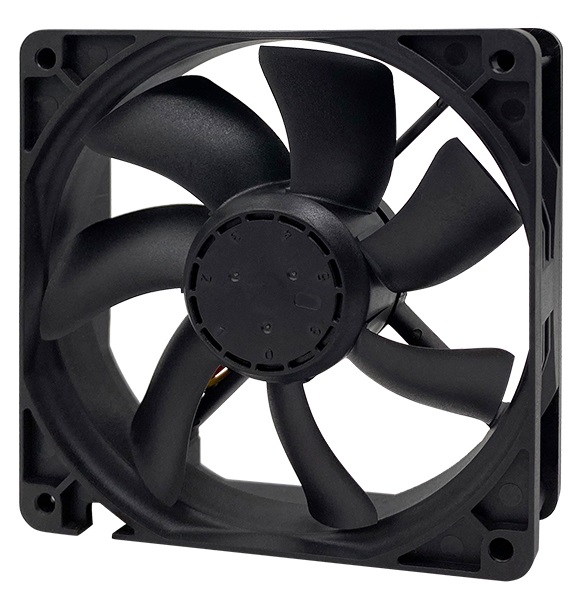

DC Fan
MFD12025E
: 120 x 120 x 25mm
Airflow
67.1~91.1 CFM
Speed
1900~3700 RPM
Noise
30~37 dB(A)
Product Specifications
| Size | : 120 x 120 x 25mm |
| Voltage | 12V / 24V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD12025ED1-LB | 12 | 7 ~ 13.8 | 0.13 | 1.44 | 1900 | 67.1 | 1.8 | 30 |
| MFD12025ED1-LS | 12 | 7 ~ 13.8 | 0.13 | 1.44 | 1900 | 67.1 | 1.8 | 30 |
| MFD12025ED1-MB | 12 | 7 ~ 13.8 | 0.16 | 1.92 | 2200 | 79.4 | 2.2 | 33.5 |
| MFD12025ED1-MS | 12 | 7 ~ 13.8 | 0.16 | 1.92 | 2200 | 79.4 | 2.2 | 33.5 |
| MFD12025ED1-NB | 12 | 7 ~ 13.8 | 0.24 | 2.64 | 2500 | 91.1 | 2.62 | 37 |
| MFD12025ED1-NS | 12 | 7 ~ 13.8 | 0.24 | 2.64 | 2500 | 91.1 | 2.62 | 37 |
| MFD12025ED2-LB | 24 | 18 ~ 26.5 | 0.06 | 1.44 | 3100 | 67.1 | 1.8 | 30 |
| MFD12025ED2-MB | 24 | 18 ~ 26.5 | 0.08 | 1.92 | 3400 | 79.6 | 2.2 | 33.5 |
| MFD12025ED2-NB | 24 | 18 ~ 26.5 | 0.11 | 2.64 | 3700 | 91.1 | 2.62 | 37 |
Dimension Drawing
P&Q Curve
