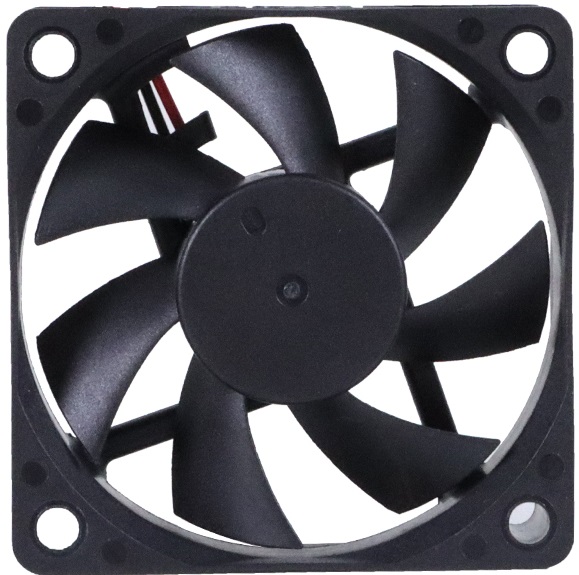

DC Fan
MFD6015B
60 x 60 x 15mm
Airflow
9.4~24 CFM
Speed
2000~6000 RPM
Noise
21.1~41 dB(A)
Product Specifications
| Size | 60 x 60 x 15mm |
| Voltage | 5V / 12V / 24V / 48V DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Rated Voltage (V) | Operating Voltage Range (V) | Rated Current (A) | Input Power (W) | Speed (RPM) | Max. Airflow (CFM) | Max. Pressure (mmH₂O) | Noise (dB-A) |
|---|---|---|---|---|---|---|---|---|
| MFD6015BD05-L | 5 | 1.8~6 | 0.1 | 0.72 | 2000 | 9.41 | 1.34 | 21.1 |
| MFD6015BD05-M | 5 | 1.8~6 | 0.19 | 0.96 | 3000 | 11.5 | 1.86 | 24.8 |
| MFD6015BD05-ML | 5 | 1.8~6 | 0.24 | 1.2 | 3500 | 14.2 | 2.61 | 29.8 |
| MFD6015BD05-H | 5 | 1.8~6 | 0.29 | 1.44 | 4000 | 16.4 | 3.5 | 31.2 |
| MFD6015BD1-L | 12 | 8.5~13.5 | 0.04 | 0.72 | 2000 | 9.41 | 1.34 | 21.1 |
| MFD6015BD1-M | 12 | 8.5~13.5 | 0.09 | 0.96 | 3000 | 11.5 | 1.86 | 24.8 |
| MFD6015BD1-ML | 12 | 8.5~13.5 | 0.1 | 1.2 | 3500 | 14.2 | 2.61 | 29.8 |
| MFD6015BD1-H | 12 | 8.5~13.5 | 0.12 | 1.44 | 4000 | 16.4 | 3.5 | 31.2 |
| MFD6015BD1-HL | 12 | 8.5~13.5 | 0.14 | 1.68 | 4500 | 18.3 | 4.35 | 34.8 |
| MFD6015BD1-HH | 12 | 8.5~13.5 | 0.16 | 1.92 | 5000 | 20.5 | 5.34 | 36.6 |
| MFD6015BD1-HV | 12 | 8.5~13.5 | 0.18 | 2.16 | 5500 | 22.4 | 6.35 | 39 |
| MFD6015BD1-VH | 12 | 8.5~13.5 | 0.28 | 2.4 | 6000 | 24 | 7.33 | 41 |
| MFD6015BD2-L | 24 | 18~26.5 | 0.03 | 0.72 | 2000 | 9.41 | 1.34 | 21.1 |
| MFD6015BD2-M | 24 | 18~26.5 | 0.04 | 0.96 | 3000 | 11.5 | 1.86 | 24.8 |
| MFD6015BD2-ML | 24 | 18~26.5 | 0.05 | 1.2 | 3500 | 14.2 | 2.61 | 29.8 |
| MFD6015BD2-H | 24 | 18~26.5 | 0.06 | 1.44 | 4000 | 16.4 | 3.5 | 31.2 |
| MFD6015BD2-HL | 24 | 18~26.5 | 0.07 | 1.68 | 4500 | 18.3 | 4.35 | 34.8 |
| MFD6015BD2-HH | 24 | 18~26.5 | 0.08 | 1.92 | 5000 | 20.5 | 5.34 | 36.6 |
| MFD6015BD2-HV | 24 | 18~26.5 | 0.09 | 2.16 | 5500 | 22.4 | 6.35 | 39 |
| MFD6015BD2-VH | 24 | 18~26.5 | 0.1 | 2.4 | 6000 | 24 | 7.33 | 41 |

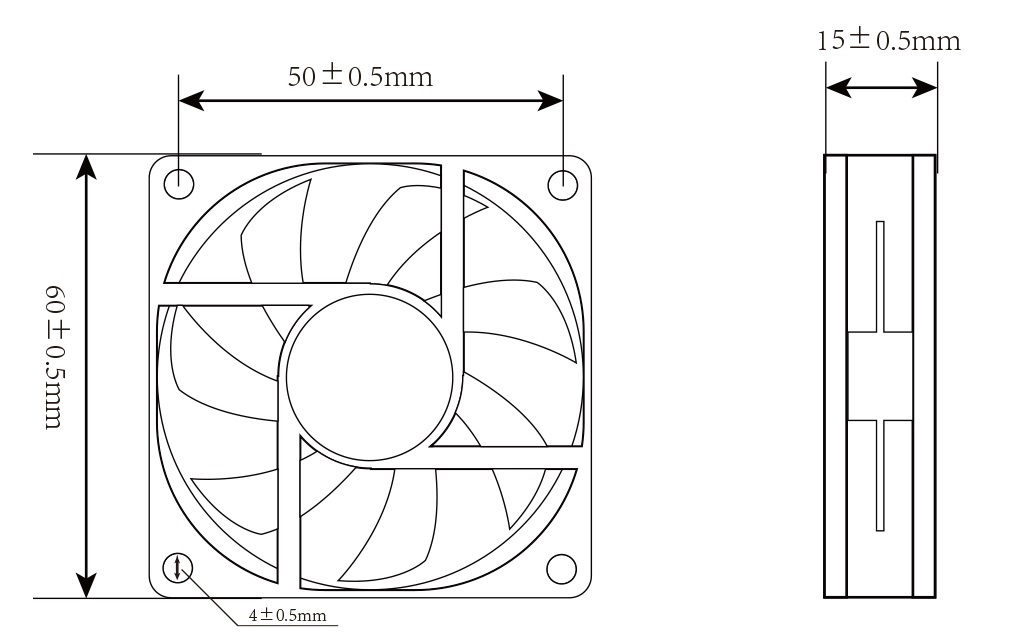

Dimension Drawing

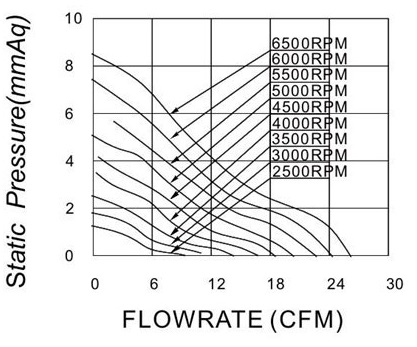

P&Q Curve
