DC Fan
MFD2510
: 25 x 25 x 10 mm
Airflow
1.0~2.6 CFM
Speed
8500~16000 RPM
Noise
17.8~37.6 dB(A)
Product Specifications
| Size | 25 x 25 x 10 mm |
| Voltage | 5V / 12V DC |
| Motor | Brushless DC |
| Frame | plastic PBT UL94V-0 |
| Impeller | plastic PBT UL94V-0 |
| Bearing Type | Ball Bearing / Sleeve Bearing |
| Operating Temperature | Ball Bearing: -10 ~ 70°C / Sleeve Bearing: 0 ~ 60°C |
| Life Expectancy | Ball Bearing: 50,000 hours at 25°C / Sleeve Bearing: 30,000 hours at 25°C |
Part Number & Specifications
| Model | Voltage (V) | Current (A) | Power (W) | Speed (RPM) | Airflow (CFM) | Pressure (mmH₂O) | Noise (dB-A) | Bearing |
|---|---|---|---|---|---|---|---|---|
| MFD2510D05-HB | 5 | 0.19 | 1.15 | 12000 | 1.72 | 3.88 | 28.9 | Ball |
| MFD2510D05-HHB | 5 | 0.22 | 1.5 | 13500 | 2.35 | 6.87 | 32.9 | Ball |
| MFD2510D05-HHS | 5 | 0.22 | 1.5 | 13500 | 2.35 | 6.87 | 32.9 | Sleeve |
| MFD2510D05-HS | 5 | 0.19 | 1.15 | 12000 | 1.72 | 3.88 | 28.9 | Sleeve |
| MFD2510D05-LB | 5 | 0.15 | 0.55 | 8500 | 1.01 | 1.86 | 17.8 | Ball |
| MFD2510D05-LS | 5 | 0.15 | 0.55 | 8500 | 1.01 | 1.86 | 17.8 | Sleeve |
| MFD2510D05-MB | 5 | 0.17 | 0.85 | 10500 | 1.44 | 3.24 | 27.2 | Ball |
| MFD2510D05-MS | 5 | 0.17 | 0.85 | 10500 | 1.44 | 3.24 | 27.2 | Sleeve |
| MFD2510D05-VHB | 5 | 0.24 | 1.2 | 16000 | 2.63 | 8.73 | 37.6 | Ball |
| MFD2510D05-VHS | 5 | 0.24 | 1.2 | 16000 | 2.63 | 8.73 | 37.6 | Sleeve |
| MFD2510D1-HB | 12 | 0.08 | 1.08 | 12000 | 1.72 | 3.88 | 28.9 | Ball |
| MFD2510D1-HHB | 12 | 0.09 | 1.08 | 13500 | 2.35 | 6.87 | 32.9 | Ball |
| MFD2510D1-HHS | 12 | 0.09 | 1.08 | 13500 | 2.35 | 6.87 | 32.9 | Sleeve |
| MFD2510D1-HS | 12 | 0.08 | 1.08 | 12000 | 1.72 | 3.88 | 28.9 | Sleeve |
| MFD2510D1-LB | 12 | 0.06 | 0.36 | 8500 | 1.01 | 1.86 | 17.8 | Ball |
| MFD2510D1-LS | 12 | 0.06 | 0.36 | 8500 | 1.01 | 1.86 | 17.8 | Sleeve |
| MFD2510D1-MB | 12 | 0.07 | 0.72 | 10500 | 1.44 | 3.24 | 27.2 | Ball |
| MFD2510D1-MS | 12 | 0.07 | 0.72 | 10500 | 1.44 | 3.24 | 27.2 | Sleeve |
| MFD2510D1-VHB | 12 | 0.1 | 1.2 | 16000 | 2.63 | 8.73 | 37.6 | Ball |
| MFD2510D1-VHS | 12 | 0.1 | 1.2 | 16000 | 2.63 | 8.73 | 37.6 | Sleeve |

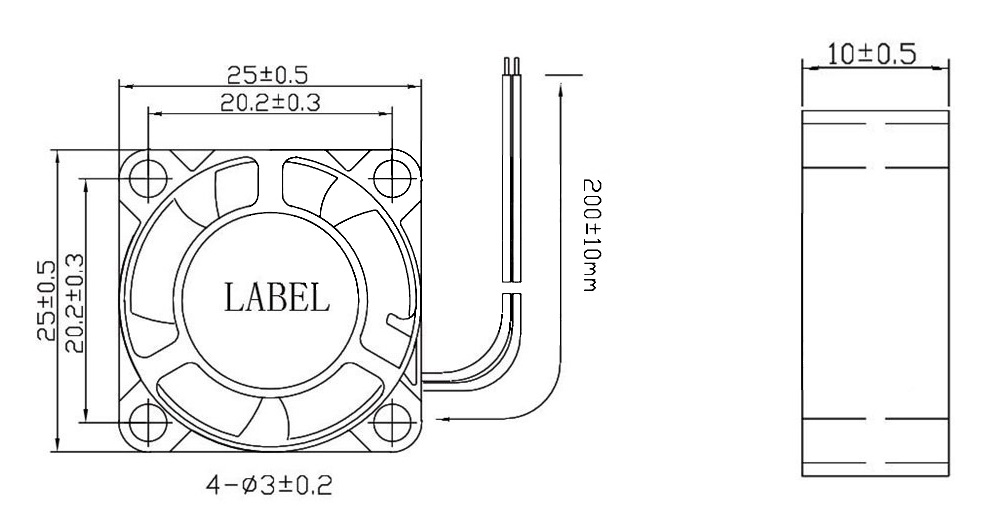

Dimension Drawing
P&Q Curve
